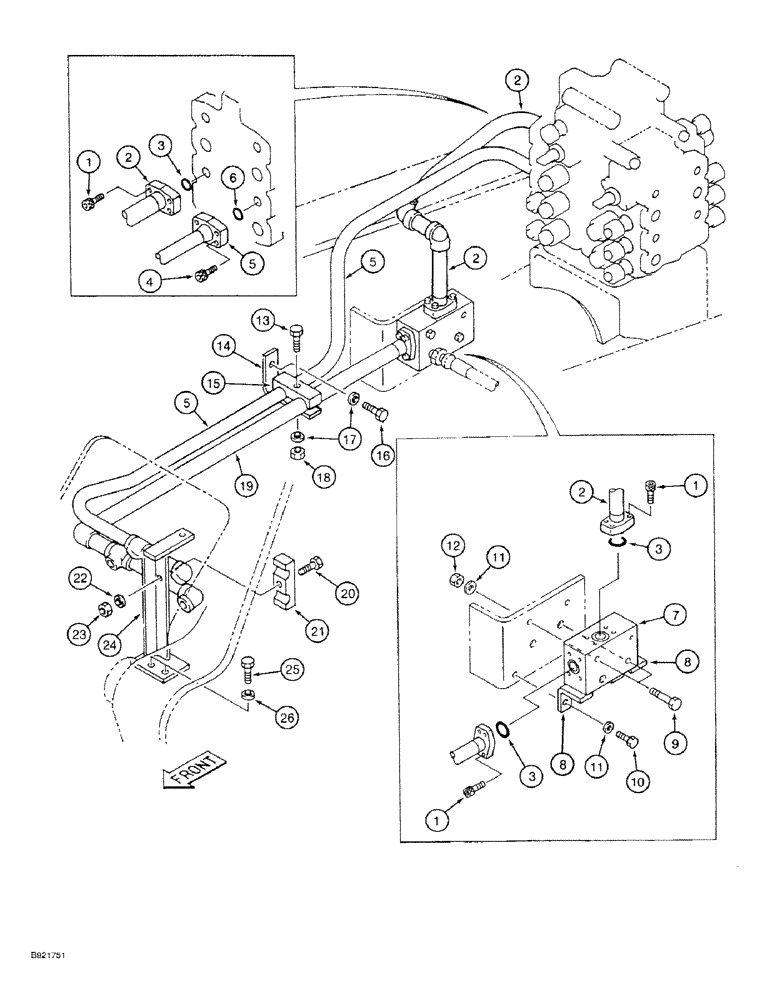

Запчасти Case 9030 (8-68) - BOOM HYDRAULIC CIRCUIT, CONTROL VALVE TO BASE OF BOOM (08) - HYDRAULICS

1

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 35 mm, class 12.9

12шт.

2

153570A1

TUBE

- flanged, at control valve boom section, rear port, to boom hold valve

1шт.

3

154548A1

O-RING

- seal, tube

3шт.

4

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - socket head, 10 - 1.5 x 30 mm, class 12.9

4шт.

5

153572A1

TUBE

- flanged, at control valve boom section, front port

1шт.

6

151099A1

O-RING

- tube to valve, boom section, front port

1шт.

7

153558A1

VALVE

ASSEMBLY - holding, boom, parts list Figure 8-70

1шт.

8

153560A1

BRACKET

- boom hold valve mounting

2шт.

9

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

- hex, 10 - 1.5 x 90 mm, class 10.9

2шт.

10

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

11

150732A1

WASHER

- special

4шт.

12

829-1310

NUT,M10, Cl 10

- hex, 10 mm - 1.5, class 10

2шт.

13

1970963C1

BOLT,Hex, M12 x 75mm, Cl 10.9

BOLT - hex, 12 - 1.75 x 75 mm, class 10.9

1шт.

14

153507A1

BRACKET

- tube support

1шт.

15

153186A1

COLLAR

CLAMP - tube, double

1шт.

16

626-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 25 mm, class 10.9

1шт.

17

150988A1

WASHER

- special

2шт.

18

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

1шт.

19

153571A1

TUBE

- flanged, at boom hold valve to boom cylinder

1шт.

20

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9

1шт.

21

152085A1

COLLAR

CLAMP - tube, double

1шт.

22

150988A1

WASHER

- special

1шт.

23

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

1шт.

24

153501A1

BRACKET

- tube support

1шт.

25

626-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 25 mm, class 10.9

2шт.

26

150988A1

WASHER

- special

2шт.
