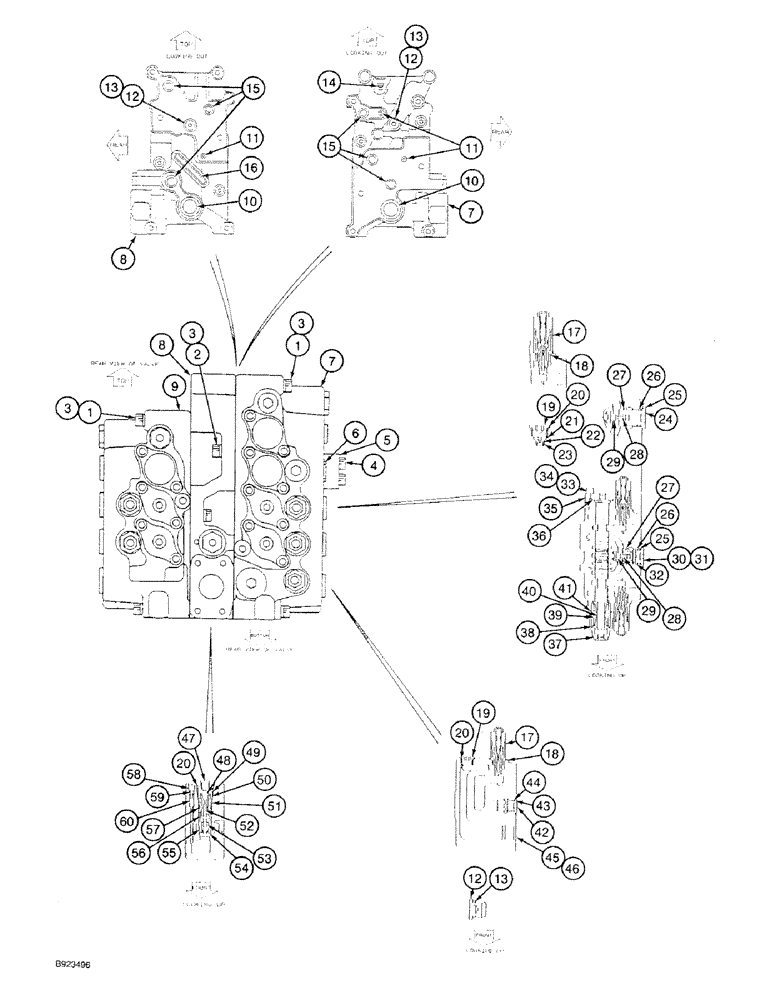

Запчасти Case 9030 (8-64) - 153562A1 AND 158022A1 HYDRAULIC CONTROL VALVES, SPOOL COVERS, RELIEF AND CHECK VALVES (08) - HYDRAULICS

153562A1

CONTROL

VALVE ASSEMBLY - equipment control, for models with 7-3/4 or 9-2/3 foot arm, includes parts on Figures 8-60 - 8-66

1шт.

158022A1

VALVE, CONTROL

VALVE ASSEMBLY - equipment control, for models with 22-1/2 foot arm, includes parts on Figures 8-60 - 8-66

1шт.

1

863-12090

HEX SOC SCREW,M12 x 90mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 90 mm, class 12.9

8шт.

2

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 35 mm, class 12.9

4шт.

3

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

12шт.

4

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 35 mm, class 12.9

8шт.

5

156272A1

FLANGE

- valve

2шт.

6

155210A1

O-RING

- seal, port

2шт.

Part of Seal Kit P/N 155989A1

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - valve, right hand, bucket and boom side

1шт.

8

157413A1

MANIFOLD

PLATE - intermediate

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - valve, left hand, arm and swing side

1шт.

10

153626A1

O-RING

- seal, port

2шт.

Part of Seal Kit P/N 155989A1

1шт.

11

154463A1

O-RING

- seal, plug

3шт.

Part of Seal Kit P/N 155989A1

1шт.

12

156263A1

CAP

PLUG - port

4-6шт.

13

154475A1

O-RING

- seal, plug (6 in 155989A1 kit)

4-6шт.

Part of Seal Kit P/N 155989A1

1шт.

14

155930A1

ORIFICE

PLUG - orifice

1шт.

15

154499A1

O-RING

- seal, port

6шт.

Part of Seal Kit P/N 155989A1

1шт.

16

155209A1

O-RING

- seal, port

1шт.

Part of Seal Kit P/N 155989A1

1шт.

17

158224A1

VALVE

ASSEMBLY - relief, circuit and main, was 155750A1, Includes: Ref. 18

8шт.

18

155067A1

O-RING

- seal, relief valve (8 in 155989A1 kit)

1шт.

Part of Seal Kit P/N 155989A1

1шт.

19

156262A1

CAP

PLUG - port

4шт.

20

155067A1

O-RING

- seal, plug (8 in 155989A1 kit)

5-7шт.

Part of Seal Kit P/N 155989A1

1шт.

21

155451A1

PLUG

- port

2-4шт.

22

155161A1

BACK-UP RING

RING - backup, plug seal (2 in 155989A1 kit)

2-4шт.

Part of Seal Kit P/N 155989A1

1шт.

23

155203A1

O-RING

- seal, plug (2 in 155989A1 kit)

2-4шт.

Part of Seal Kit P/N 155989A1

1шт.

24

156261A1

CAP

PLUG - port

1шт.

25

153991A1

BACK-UP RING

RING - backup, plug seal

4шт.

Part of Seal Kit P/N 155989A1

1шт.

26

154515A1

O-RING

- seal, plug

4шт.

Part of Seal Kit P/N 155989A1

1шт.

27

155295A1

BALL

TIP - nylon, check valve

4шт.

Part of Seal Kit P/N 155989A1

1шт.

28

156027A1

SPRING

- check valve

4шт.

29

155912A1

VALVE

- check

4шт.

30

156259A1

CAP

PLUG - port

1шт.

31

156260A1

CAP

PLUG - port

1шт.

32

155913A1

VALVE

- check

5шт.

33

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - socket head, 10 - 1.5 x 30 mm, class 12.9

8шт.

34

156273A1

CAP

EYE - check valve

1шт.

35

155561A1

RETAINER

- spool

4шт.

36

155190A1

O-RING

- seal, retainer

4шт.

Part of Seal Kit P/N 155989A1

1шт.

37

156271A1

COVER

- spool end

4шт.

38

156037A1

CLAMP

GUIDE - spring

8шт.

39

156030A1

SPRING

- valve spool

4шт.

40

156269A1

PLUG

CAP - flange

4шт.

41

155192A1

O-RING

- seal, cover

4шт.

Part of Seal Kit P/N 155989A1

1шт.

155989A1

SEAL KIT

KIT - seal, Includes: Ref. 6, 10, 11, 13, 15, 16, 18, 20, 22, 23, 25-27, 36 and 41, see Figures 8-60 - 8-66 for complete kit.

1шт.

42

156265A1

CAP

PLUG - port

1шт.

43

153976A1

BACK-UP RING

RING - backup, plug seal

3шт.

Part of Seal Kit P/N 155989A1

1шт.

44

154495A1

O-RING

- seal, plug

3шт.

Part of Seal Kit P/N 155989A1

1шт.

45

156264A1

CAP

PLUG - port

1шт.

46

154523A1

O-RING

- seal, plug

1шт.

Part of Seal Kit P/N 155989A1

1шт.

47

156267A1

CAP

COVER - combining valve

1шт.

48

155917A1

PISTON

SHUTTLE - boom dual flow combining valve

1шт.

49

155204A1

O-RING

- combining valve cover

1шт.

Part of Seal Kit P/N 155989A1

1шт.

50

155563A1

SLEEVE

- combining valve

1шт.

51

154487A1

O-RING

- combining valve

1шт.

Part of Seal Kit P/N 155989A1

1шт.

52

156033A1

SPRING

- combining valve

1шт.

53

156032A1

SPRING

- combining valve

1шт.

54

155914A1

VALVE, CHECK

VALVE - check

1шт.

55

155910A1

VALVE POPPET

POPPET - check valve

1шт.

56

156035A1

SPRING

- check valve

1шт.

57

153970A1

BACK-UP RING

RING - backup, check valve

1шт.

Part of Seal Kit P/N 155989A1

1шт.

58

151022A1

PLUG

- at check valve

1шт.

59

156034A1

SPRING

- check valve

1шт.

60

155915A1

VALVE

- check

1шт.

155989A1

SEAL KIT

KIT - seal, Includes: Ref. 43, 44, 46, 49, 51 and 57 see Figures 8-60 - 8-66 for complete kit.

1шт.
