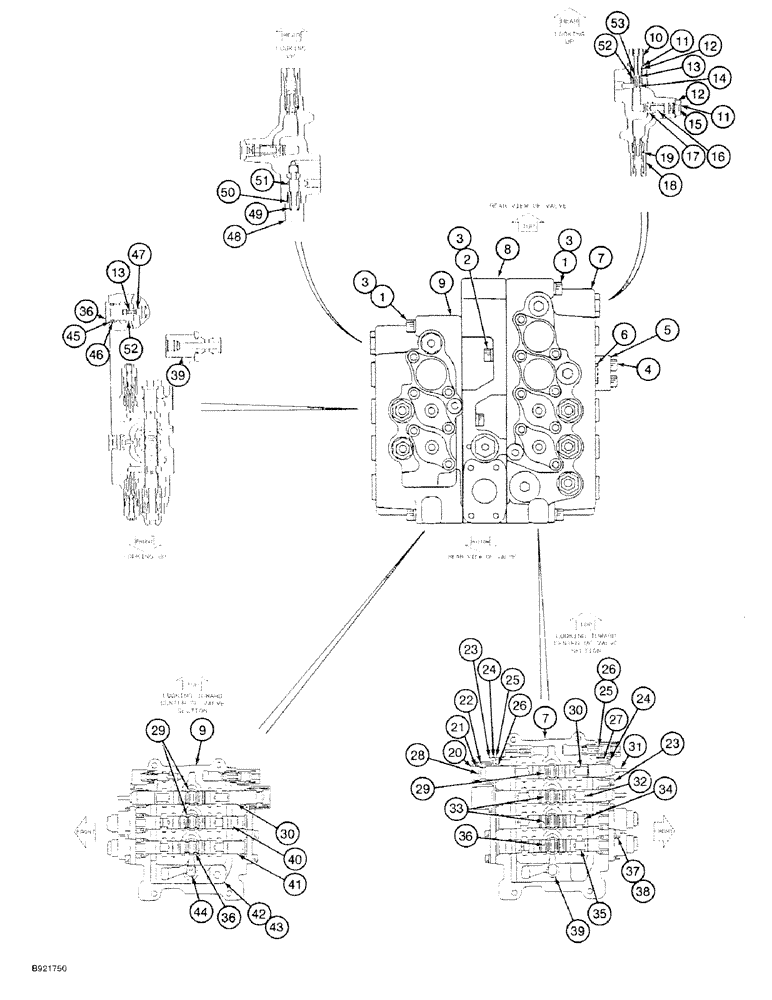

Запчасти Case 9030 (8-60) - 153562A1 AND 158022A1 HYDRAULIC CONTROL VALVES, SPOOLS, CHECK VALVES AND RELATED PARTS (08) - HYDRAULICS

153562A1

CONTROL

VALVE ASSEMBLY - equipment control, for models with 7-3/4 or 9-2/3 foot arm, includes parts on Figures 8-60 - 8-66

1шт.

158022A1

VALVE, CONTROL

VALVE ASSEMBLY - equipment control, for models with 22-1/2 foot arm, includes parts on Figures 8-60 - 8-66

1шт.

1

863-12090

HEX SOC SCREW,M12 x 90mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 90 mm, class 12.9

8шт.

2

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 35 mm, class 12.9

4шт.

3

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

12шт.

4

861-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 35 mm, class 12.9

8шт.

5

156272A1

FLANGE

- valve

2шт.

6

155210A1

O-RING

- seal, port

2шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - valve, right hand, bucket and boom side

1шт.

8

156541A1

MANIFOLD

PLATE - intermediate, Replaced by 157413A1 for 153562A1 Control Valve

1шт.

9

NSS

NOT SOLD SEPARAT

HOUSING - valve, left hand, arm and swing side

1шт.

10

156277A1

CAP

COVER - check valve

1шт.

11

153976A1

BACK-UP RING

RING - backup, plug seal

2шт.

Part of Seal Kit P/N 155989A1

1шт.

12

154495A1

O-RING

- seal, plug

2шт.

Part of Seal Kit P/N 155989A1

1шт.

13

156027A1

SPRING

- check valve

4шт.

14

155911A1

VALVE

- check

1шт.

15

156258A1

CAP

COVER - relief

1шт.

16

156028A1

SPRING

- relief

2шт.

17

155909A1

VALVE POPPET

POPPET - relief

2шт.

18

155762A1

VALVE

ASSEMBLY - pump destroke, For the 153562A1 Valve Assy., Includes: Ref. 19

2шт.

19

154494A1

O-RING

- seal, valve

1шт.

Part of Seal Kit P/N 155989A1

1шт.

20

156270A1

COVER

- spool end

2шт.

21

156036A1

CLAMP

GUIDE - spring

6шт.

22

156029A1

SPRING

- spool return

3шт.

23

156171A1

BOLT

BOLT - hex socket, special

12шт.

24

155560A1

RING

RETAINER - seal

6шт.

25

153916A1

WIPER

SEAL - wiper

6шт.

Part of Seal Kit P/N 155989A1

1шт.

26

153917A1

SEALING RING

RING - seal

6шт.

Part of Seal Kit P/N 155989A1

1шт.

27

155562A1

SPACER

- valve

3шт.

28

156268A1

PLUG

CAP - spool

2шт.

29

156259A1

CAP

PLUG - port

3шт.

30

NSS

NOT SOLD SEPARAT

SPOOL - valve, travel

2шт.

31

156273A1

CAP

EYE - spool end

3шт.

32

NSS

NOT SOLD SEPARAT

SPOOL - valve, auxiliary

1шт.

33

156260A1

CAP

PLUG - port

2шт.

34

NSS

NOT SOLD SEPARAT

SPOOL - valve, bucket

1шт.

35

NSS

NOT SOLD SEPARAT

SPOOL - valve, boom

1шт.

36

156261A1

CAP

PLUG - port

3шт.

37

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - socket head, 10 - 1.5 x 30 mm, class 12.9

8шт.

38

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

8шт.

39

156276A1

CAP

PLUG - port

1шт.

155989A1

SEAL KIT

KIT - seal, Includes: Ref. 11, 12, 19, 25 and 26, see Figures 8-60 - 8-66 for complete kit.

1шт.

40

NSS

NOT SOLD SEPARAT

SPOOL - valve, arm

1шт.

41

NSS

NOT SOLD SEPARAT

SPOOL - valve, swing

1шт.

42

156264A1

CAP

PLUG - port

2шт.

43

154523A1

O-RING

- seal, plug

2шт.

Part of Seal Kit P/N 155989A1

1шт.

44

156265A1

CAP

PLUG - port

1шт.

45

153991A1

BACK-UP RING

RING - backup, plug seal

3шт.

Part of Seal Kit P/N 155989A1

1шт.

46

154515A1

O-RING

- seal, plug

3шт.

Part of Seal Kit P/N 155989A1

1шт.

47

155912A1

VALVE

- check

3шт.

48

156266A1

CAP

COVER - spool

1шт.

49

156031A1

SPRING

- spool return

1шт.

50

154494A1

O-RING

- seal, spool cover

1шт.

Part of Seal Kit P/N 155989A1

1шт.

51

155916A1

SPOOL

- valve, travel priority

1шт.

52

155295A1

BALL

TIP - nylon, check valve

4шт.

Part of Seal Kit P/N 155989A1

1шт.

53

155920A1

VALVE, CHECK

VALVE - check

1шт.

155989A1

SEAL KIT

KIT - seal, Includes: Ref. 43, 45, 46, 50 and 52, see Figures 8-60 - 8-66 for complete kit.

1шт.
