Запчасти Case 9030 (8-56) - 160644A1 SWING MOTOR ASSEMBLY, P.I.N. DAC0300273 AND AFTER (08) - HYDRAULICS

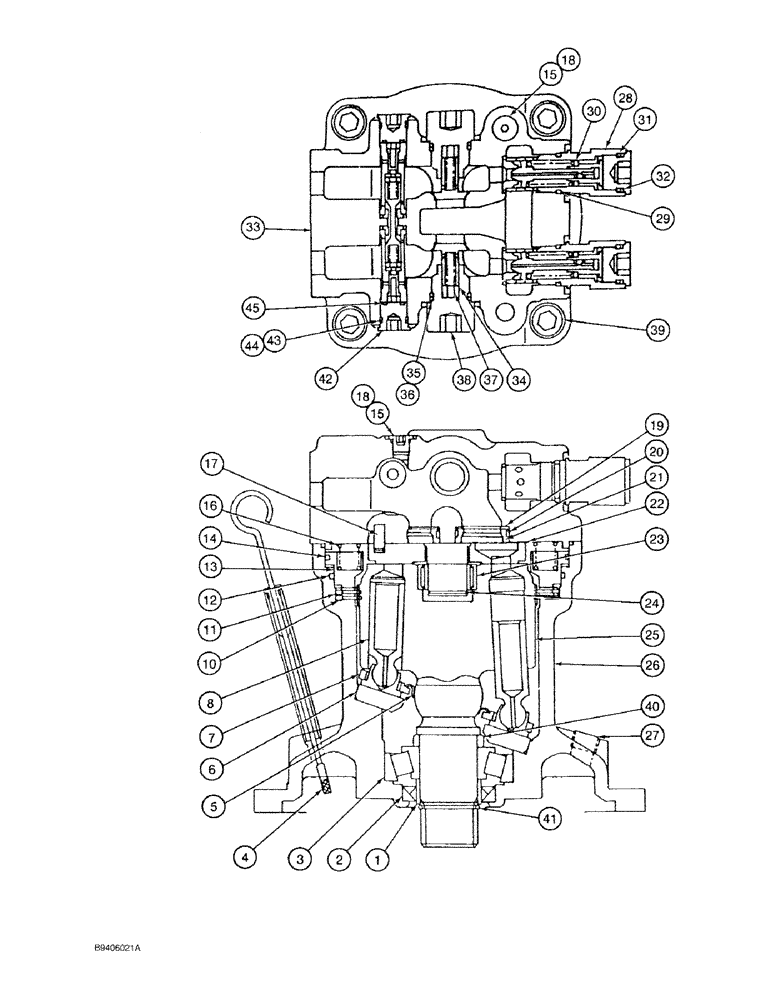

Схема запчастей Case 9030 - (8-56) - 160644A1 SWING MOTOR ASSEMBLY, P.I.N. DAC0300273 AND AFTER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

160644A1

MOTOR

ASSEMBLY - hydraulic, swing, Includes: Ref. 1 - 45

1шт.

1

155620A1

SPACER

RING - wear, shaft end

1шт.

2

155106A1

OIL SEAL

- oil

1шт.

3

156133A1

TAPERED BEARING,45mm ID x 100mm OD x 27.25mm W

- roller

1шт.

4

160638A1

GAUGE

DIPSTICK - lube, swing motor

1шт.

5

156080A1

SPRING

- piston

1шт.

6

155616A1

PLATE

- cam

1шт.

7

155617A1

PLATE

- return

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - swing motor

9шт.

9

160205A1

PISTON

- valve

2шт.

10

155619A1

PLATE

- friction

2шт.

11

155618A1

PLATE

- mating

2шт.

12

155198A1

O-RING

- small, Serial Range: piston-housing

1шт.

13

155945A1

PISTON

- brake

1шт.

14

155199A1

O-RING

- large, Serial Range: piston-housing

2шт.

15

154466A1

O-RING

- plug

3шт.

16

156082A1

SPRING

- brake

10шт.

17

160601A1

BOLT

PIN - dowel

2шт.

18

160306A1

CAP

PLUG - housing

3шт.

19

160268A1

SPRING

- cylinder

4шт.

20

160204A1

RING

- Teflon

4шт.

21

160045A1

BUSHING

- plate

4шт.

22

160327A1

LARGE PLATE

PLATE - balance

1шт.

23

156134A1

NEEDLE BEARING,Needle, 30mm ID x 45mm OD x 20mm W

- needle

1шт.

24

155614A1

RING, LOCKING

RING - retaining

1шт.

25

NSS

NOT SOLD SEPARAT

CYLINDER - swing motor

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - swing motor

1шт.

27

151033A1

PLUG

- housing

2шт.

155809A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, Includes: Ref. 28 - 32

2шт.

28

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

29

154515A1

O-RING

- large, valve, Serial Range: body-housing

1шт.

30

155990A1

SHIM KIT

SHIM - one set

1шт.

31

154503A1

O-RING

- small, used with backup ring

1шт.

32

153982A1

BACK-UP RING

RING - backup, small O-ring

1шт.

33

NSS

NOT SOLD SEPARAT

COVER - housing

1шт.

34

155944A1

PLUNGER

- check

2шт.

35

154515A1

O-RING

- plug

2шт.

36

153991A1

BACK-UP RING

RING - backup

2шт.

37

156079A1

SPRING

- detent

2шт.

38

156305A1

CAP

PLUG - check

2шт.

39

863-16060

HEX SOC SCREW,M16 x 60mm, Cl 12.9

SCREW, Hex Soc Hd, M16 x 60, 12.9

4шт.

40

155615A1

COLLAR

- shaft

1шт.

41

155613A1

RING, LOCKING

RING - lock

1шт.

42

160149A1

BY-PASS VALVE

VALVE - bypass

2шт.

43

154487A1

O-RING

- bypass valve, outer

2шт.

44

153970A1

BACK-UP RING

RING - backup, bypass valve

2шт.

45

154471A1

O-RING

- bypass valve, inner

2шт.

Выбрано товаров: 47
