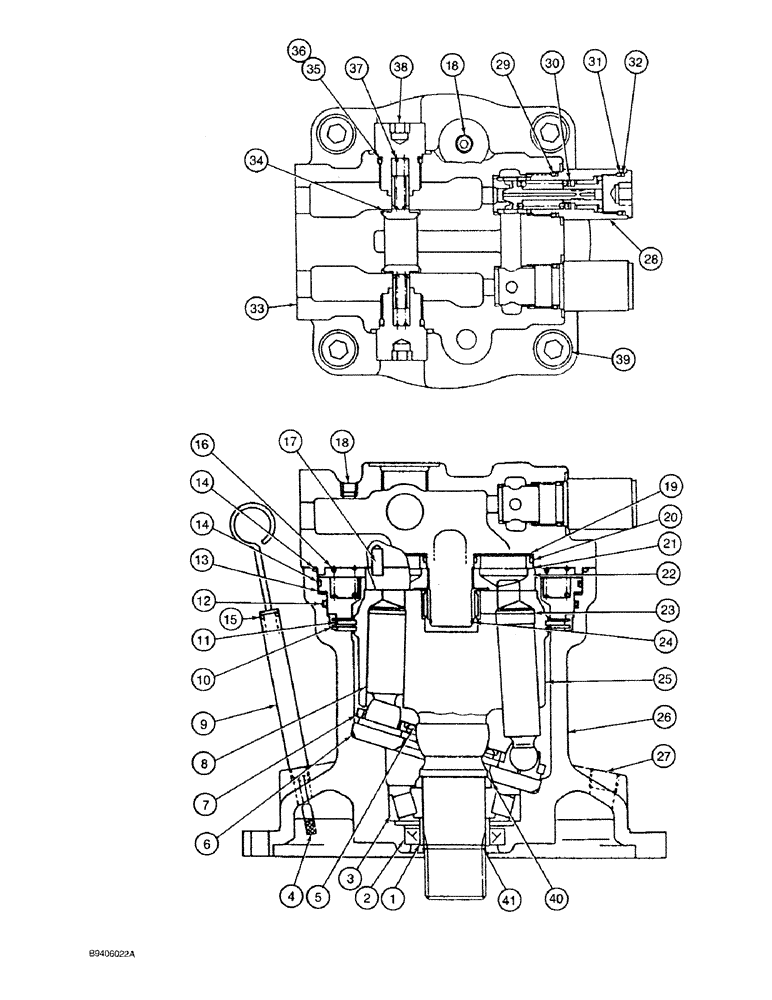

Запчасти Case 9030 (8-54) - 155780A1 SWING MOTOR ASSEMBLY, PRIOR TO P.I.N. DAC0300273 (08) - HYDRAULICS

155780A1

MOTOR

ASSEMBLY - hydraulic, swing, Includes: Ref. 1 - 41

1шт.

1

155620A1

SPACER

RING - wear, shaft end

1шт.

2

155106A1

OIL SEAL

- oil

1шт.

Part of Seal Kit P/N 155991A1

1шт.

3

156133A1

TAPERED BEARING,45mm ID x 100mm OD x 27.25mm W

- roller

1шт.

4

155477A1

GAUGE

DIPSTICK - lube, swing motor

1шт.

5

156080A1

SPRING

- piston

1шт.

6

155616A1

PLATE

- cam

1шт.

7

155617A1

PLATE

- return

1шт.

8

NSS

NOT SOLD SEPARAT

PISTON - swing motor

9шт.

9

155494A1

TUBE

- dipstick

1шт.

10

155619A1

PLATE

- friction

2шт.

11

155618A1

PLATE

- mating

2шт.

12

155198A1

O-RING

- small, Serial Range: piston-housing

1шт.

Part of Seal Kit P/N 155991A1

1шт.

13

155945A1

PISTON

- brake

1шт.

14

155199A1

O-RING

- large, Serial Range: piston-housing

2шт.

Part of Seal Kit P/N 155991A1

1шт.

15

155202A1

O-RING

- tube and dipstick

1шт.

Part of Seal Kit P/N 155991A1

1шт.

16

156082A1

SPRING

- brake

10шт.

17

837-8020

DOWEL,8mm OD x 20mm L

PIN - dowel, 8 x 20 mm

2шт.

18

151026A1

PLUG

- housing

3шт.

19

156081A1

SPRING

- cylinder

4шт.

20

155301A1

RING

- Teflon

4шт.

Part of Seal Kit P/N 155991A1

1шт.

21

155380A1

BUSHING

- plate

4шт.

22

155682A1

PLATE - balance

1шт.

23

156134A1

NEEDLE BEARING,Needle, 30mm ID x 45mm OD x 20mm W

- needle

1шт.

24

155614A1

RING, LOCKING

RING - retaining

1шт.

25

NSS

NOT SOLD SEPARAT

CYLINDER - swing motor

1шт.

26

NSS

NOT SOLD SEPARAT

HOUSING - swing motor

1шт.

27

151033A1

PLUG

- housing

1шт.

155809A1

VALVE, PRESSURE RELI

VALVE ASSEMBLY - relief, Includes: Ref. 28 - 32

2шт.

28

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

29

154515A1

O-RING

- large, valve, Serial Range: body-housing

1шт.

Part of Seal Kit P/N 155991A1

1шт.

30

155990A1

SHIM KIT

SHIM - one set

1шт.

31

154503A1

O-RING

- small, used with backup ring

1шт.

Part of Seal Kit P/N 155991A1

1шт.

32

153982A1

BACK-UP RING

RING - backup, small O-ring

1шт.

Part of Seal Kit P/N 155991A1

1шт.

33

NSS

NOT SOLD SEPARAT

COVER - housing

1шт.

34

155944A1

PLUNGER

- check

2шт.

35

154515A1

O-RING

- plug

2шт.

Part of Seal Kit P/N 155991A1

1шт.

36

153991A1

BACK-UP RING

RING - backup

2шт.

Part of Seal Kit P/N 155991A1

1шт.

37

156079A1

SPRING

- detent

2шт.

38

156305A1

CAP

PLUG - check

2шт.

39

863-16060

HEX SOC SCREW,M16 x 60mm, Cl 12.9

SCREW, Hex Soc Hd, M16 x 60, 12.9

4шт.

40

155615A1

COLLAR

- shaft

1шт.

41

155613A1

RING, LOCKING

RING - lock

1шт.

155991A1

SEAL KIT

- seal, Includes: Ref. 2, 12, 14, 15, 20, 29, 31, 32, 35 and 36

1шт.
