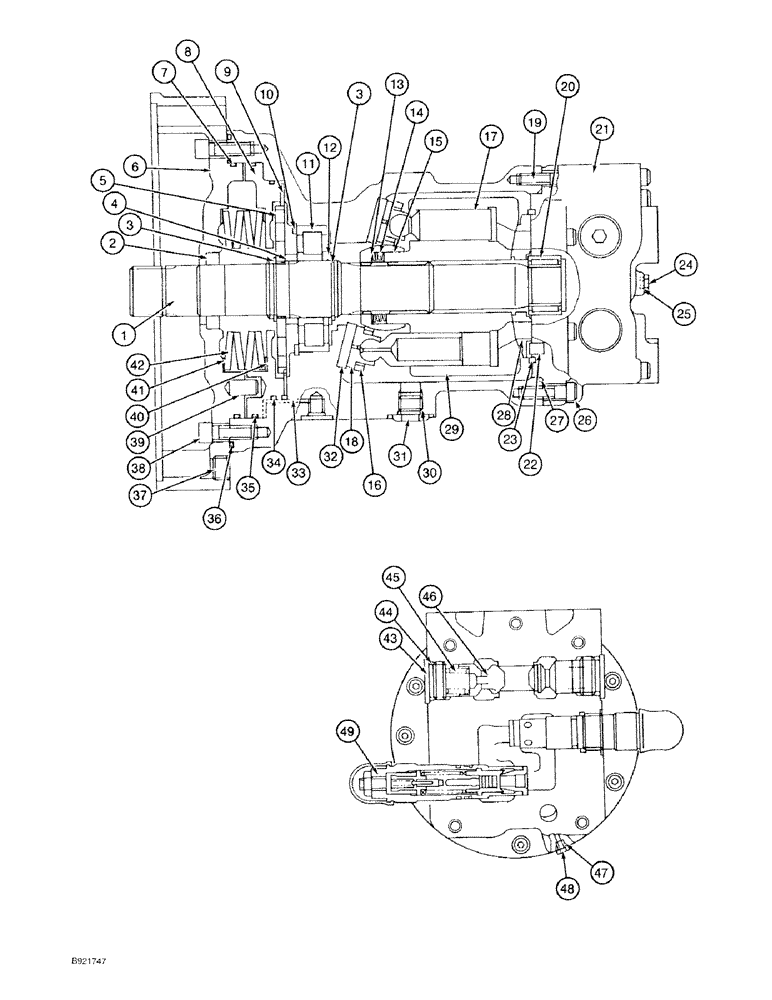

Запчасти Case 9030 (8-50) - 156511A1 SWING MOTOR, PRIOR TO P.I.N. DAC0300273 (08) - HYDRAULICS

156511A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - hydraulic, swing, includes parts on Figures 8-50 and 8-52, Includes: Ref. 1 - 49

1шт.

P/N 156511A1 is for Link Belt machines only - the correct motor for Case machines is 155780A1

1шт.

1

156512A1

DRIVE SHAFT

SHAFT - drive

1шт.

2

153925A1

OIL SEAL

SEAL - oil, shaft, splined end

1шт.

3

800-1150

SNAP RING,M50, Ext

RING - retaining, external, 50 mm

2шт.

4

156513A1

SPACER

- bearing

1шт.

5

156514A1

SPLINE

PLATE - splined

1шт.

6

156515A1

COVER

- at reduction gear

1шт.

7

155217A1

O-RING

-, Serial Range: cover-housing

1шт.

8

156516A1

PISTON

- motor, brake

1шт.

9

156517A1

PLATE

- friction

1шт.

10

156518A1

RING, SNAP

RING - retaining, bearing

1шт.

11

156132A1

BEARING, ROLLER,50 mm ID x 110 mm OD x 27 mm

BEARING - roller

1шт.

12

156519A1

SPACER

- bearing

1шт.

13

156520A1

SHIM

SET - piston plate

1шт.

14

156521A1

SPRING

- belleville, piston plate bushing

4шт.

156522A1

PLATE

ASSEMBLY - piston, with bushing, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

BUSHING - piston plate

1шт.

16

NSS

NOT SOLD SEPARAT

PLATE - piston

1шт.

156523A1

PISTON ASSY.

PISTON ASSEMBLY - swing motor, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

PISTON - swing motor

9шт.

18

NSS

NOT SOLD SEPARAT

SHOE - piston

9шт.

19

156524A1

BOLT (MACHINE),Hex Skt

BOLT - hex socket, valve, Serial Range: housing-motor

5шт.

20

156525A1

BEARING, ROLLER

BEARING - roller, shaft, valve end

1шт.

156526A1

CASE

HOUSING ASSEMBLY - valve, Includes: Ref. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

HOUSING - valve

1шт.

22

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

23

NSS

NOT SOLD SEPARAT

RING - guide

1шт.

24

155496A1

PLUG

- port

2шт.

25

154467A1

O-RING,10.8mm ID x 2.4mm Width

- port plug

2шт.

26

863-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 40 mm, class 12.9

7шт.

27

156527A1

O-RING

- seal, special, valve, Serial Range: housing-motor

1шт.

156528A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - swing motor, Includes: Ref. 28 - 49

1шт.

28

NSS

NOT SOLD SEPARAT

PLATE - valve

1шт.

29

NSS

NOT SOLD SEPARAT

CYLINDER - swing motor

1шт.

30

154487A1

O-RING

- port plug

1шт.

31

156529A1

PLUG

- port, swing motor side

1шт.

32

156530A1

TRAY

PLATE - swash, piston shoe

1шт.

33

156531A1

CASE

HOUSING - swing motor

1шт.

34

155213A1

O-RING

- piston, inner

1шт.

35

155217A1

O-RING

- piston, outer

1шт.

36

156532A1

O-RING

- seal, Serial Range: cover-housing

1шт.

37

153868A1

PLUG

- port

1шт.

38

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 35 mm, class 12.9

12шт.

39

156533A1

COTTER PIN

PIN - dowel, Serial Range: cover-housing

2шт.

40

156534A1

SPRING SEAT

SEAT - spring

1шт.

41

156534A1

SPRING SEAT

SEAT - spring

1шт.

42

156535A1

SPRING

- piston return, brake

4шт.

43

155475A1

PLUG

- poppet retaining

2шт.

44

154519A1

O-RING

- plug

2шт.

45

156536A1

SPRING

- poppet

2шт.

46

156537A1

PLUNGER

- hydraulic check

2шт.

47

154442A1

O-RING

- seal, valve housing plug

1шт.

48

156538A1

PLUG

- valve housing

1шт.

49

156539A1

PIPE ASSY.

VALVE ASSEMBLY - relief

2шт.
