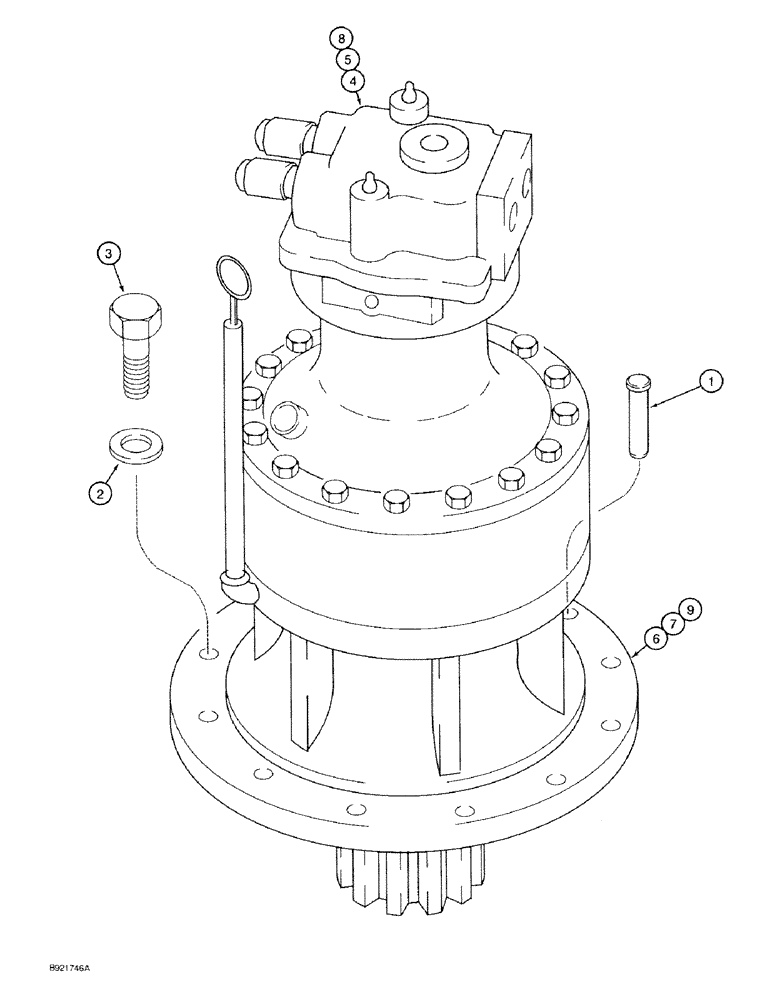

Запчасти Case 9030 (8-48) - SWING MOTOR AND MOUNTING, PRIOR TO PIN DACO300273, PIN DAC0300273 AND AFTER (08) - HYDRAULICS

1

150317A1

HEADED PIN,24mm OD x 90mm L

PIN - alignment, headed

1шт.

2

150996A1

WASHER

- special

47шт.

3

828-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9

- hex, 20 - 2.5 x 75 mm, class 10.9

11шт.

150397A1

MOTOR

ASSEMBLY - swing, with reduction gear, Includes: Ref. 4 - 7, Serial Range: -DAC0300273

1шт.

4

156511A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - swing, without reduction gear, identify with relief on each side of valve housing and without dipstick, not as shown on Figure 8-48, see Figures 8-50 and 8-52 for identification&component parts, no longer used, order 155780A1motor Ref.5, Serial Range: -DAC0300273

1шт.

P/N 156511A1 is for Link Belt machines only - the correct motor for Case machines is 155780A1

1шт.

5

155780A1

MOTOR

ASSEMBLY - swing, without reduction gear, identify with reliefs on same side of valve housing as shown and with dipstick, parts list Figure 8-54, Serial Range: -DAC0300273

1шт.

6

156502A1

GEAR ASSEMBLY - swing reduction, with dipstick, parts list Figure 8-86, no longer used, order 150397A1 motor assembly with reduction gear for service, Serial Range: -DAC0300273

1шт.

7

155826A1

REDUCER

GEAR ASSEMBLY - swing reduction, without dipstick, parts list Figure 8-88, Serial Range: -DAC0300273

1шт.

158772A1

MOTOR, HYDRAULIC

MOTOR ASSEMBLY - swing, with reduction gear, Includes: Ref. 8 and 9, Start Serial: DAC0300273

1шт.

8

160644A1

MOTOR

ASSEMBLY - swing, parts list Figure 8-56, Start Serial: DAC0300273

1шт.

9

155826A1

REDUCER

GEAR ASSEMBLY - swing reduction, parts list Figure 8-88, Start Serial: DAC0300273

1шт.
