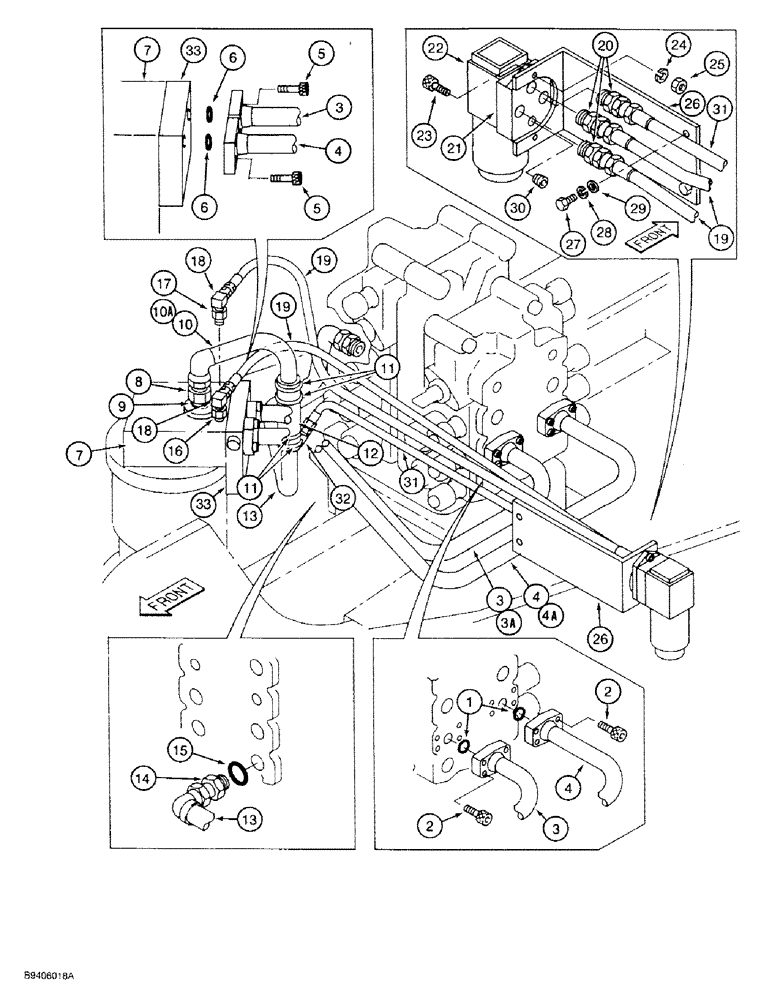

Запчасти Case 9030 (8-46) - SWING MOTOR HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

151099A1

O-RING

-, Serial Range: tube-valve

2шт.

2

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - hex socket, 10 - 1.5 x 30 mm, class 12.9

8шт.

3

153564A1

TUBE,27.2 mm OD, 406.4, 204.5 mm Length

- flanged, left hand side of control valve, front, Serial Range: -DAC03002723

1шт.

3a

158782A1

TUBE

- flanged, left hand side of control valve, front, Start Serial: DAC0300273

1шт.

4

153565A1

TUBE,27.2 mm OD, 575.5, 234.5 mm Length

- flanged, left hand side of control valve, rear, Serial Range: -DAC0300273

1шт.

4a

158783A1

TUBE

- flanged, left hand side of control valve, rear, Start Serial: DAC0300273

1шт.

5

862-10070

HEX SOC SCREW,M10 x 70mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 70 mm, class 12.9

8шт.

6

151099A1

O-RING

-, Serial Range: tube-valve

2шт.

7

REF

INSTRUCTION

MOTOR ASSEMBLY - hydraulic, swing, see Figure 8-48 for correct assembly and components

1шт.

8

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - hose at swing motor, Includes: Ref. 9

1шт.

9

154523A1

O-RING

- adapter

1шт.

10

153521A1

TUBE,34 mm OD, 200, 166 mm Length

- hydraulic, top of swing motor, Serial Range: -DAC0300273

1шт.

10a

158785A1

HYD TUBE,34 mm OD, 228, 166 mm Length

TUBE - hydraulic, top of swing motor, Start Serial: DAC0300273

1шт.

11

150885A1

COLLAR

CLAMP - hose

4шт.

12

153520A1

HOSE

- swing motor return

1шт.

13

153506A1

TUBE

- at equipment control valve from swing motor

1шт.

14

151655A1

HYD CONNECTOR,1" NPT O-Ring x 1" NPT

ADAPTER - hose to control valve from swing motor, Includes: Ref. 15

1шт.

15

154523A1

O-RING

- adapter

1шт.

16

153480A1

ORIFICE

BUSHING - reducer, top of swing motor, left hand side

1шт.

17

150459A1

SOCKET

BUSHING - reducer, top of swing motor, right hand side

1шт.

18

153596A1

ADAPTER

- 90 degrees, hydraulic

2шт.

19

152295A1

HYDRAULIC HOSE

- Swing motor to solenoid valve

2шт.

20

153603A1

ADAPTER

- straight, hydraulic

3шт.

21

150589A1

PLATE

- adapter, solenoid, Serial Range: valve-hoses

1шт.

22

153470A1

VALVE

ASSEMBLY - solenoid, parts list Figure 8-40

1шт.

23

861-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

BOLT - hex socket, 6 - 1 x 25 mm, class 12.9

2шт.

24

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

25

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1, class 10.9

2шт.

26

153469A1

BRACKET

- solenoid mounting

1шт.

27

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

28

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

2шт.

29

895-10010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.

30

151026A1

PLUG

- port

1шт.

31

153485A1

HOSE ASSY.

HOSE - return to control valve from solenoid valve

1шт.

32

153599A1

ADAPTER

- hydraulic, solenoid return line

1шт.

33

153522A1

VALVE

- special, Serial Range: -DAC0300273

1шт.

PER INFO RECEIVED FROM SUMITOMO THIS CONSISTS OF 166176A1 back up ring, 154487A1 o-ring, 154471A1 o-ring, 154467A1 o-ring, and 155203A1 o-ring

1шт.
