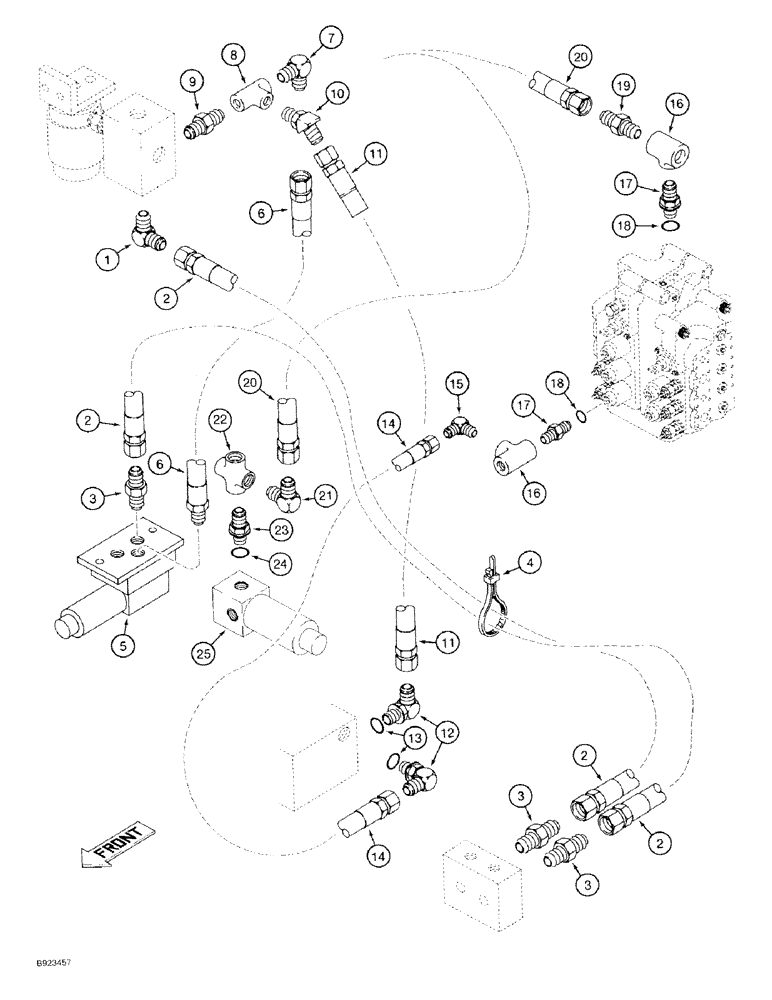

Запчасти Case 9030 (8-36) - HYDRAULIC CONTROL CIRCUIT, CONTROL SHUTOFF SOLENOID TO FILTER AND MANIFOLD (08) - HYDRAULICS

1

153495A1

ADAPTER

ELBOW - 90 degree, hydraulic

1шт.

2

152764A1

HOSE ASSY.

HOSE - hydraulic, control shutoff solenoid and pilot, Serial Range: filter-manifold

2шт.

3

153597A1

ADAPTER

- straight, hydraulic

3шт.

4

150071A1

MOUNTING CLIP

STRAP - tie

1шт.

5

150425A1

VALVE

ASSEMBLY - solenoid, control shutoff, parts list Figure 8-38

1шт.

6

153365A1

HOSE

- control shutoff solenoid to pilot return filter

1шт.

7

153495A1

ADAPTER

ELBOW - 90 degree, hydraulic

1шт.

8

152137A1

TEE

- hydraulic

1шт.

9

152130A1

NIPPLE, LUBE

CONNECTOR - straight, hydraulic

1шт.

10

153488A1

ADAPTER

ELBOW - 45 degree, hydraulic

1шт.

11

152781A1

HOSE

- boom hold valve to pilot return filter

1шт.

12

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

FITTING - elbow, 90 degree, at boom hold valve, Includes: Ref. 13

2шт.

13

154475A1

O-RING

- elbow

1шт.

14

152891A1

HOSE

- hydraulic, control valve to boom hold valve

1шт.

15

152749A1

ADAPTER

ELBOW - hydraulic, 90 degree

1шт.

16

152135A1

TEE

- hydraulic

2шт.

17

152899A1

HYD CONNECTOR

CONNECTOR - straight, hydraulic, Includes: Ref. 18

2шт.

18

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector, was 150960A1

1шт.

19

153603A1

ADAPTER

- straight, hydraulic

1шт.

20

153230A1

HOSE ASSY.

HOSE - hydraulic, control, Serial Range: valve-solenoid

1шт.

21

153596A1

ADAPTER

- 90 degrees, hydraulic

1шт.

22

152303A1

4 WAY CONNECTION

CROSS - hydraulic

1шт.

23

152899A1

HYD CONNECTOR

CONNECTOR - straight, hydraulic, Includes: Ref. 24

1шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector, was 150960A1

1шт.

25

150844A1

VALVE

ASSEMBLY - solenoid, swing brake, parts list Figure 8-42

1шт.
