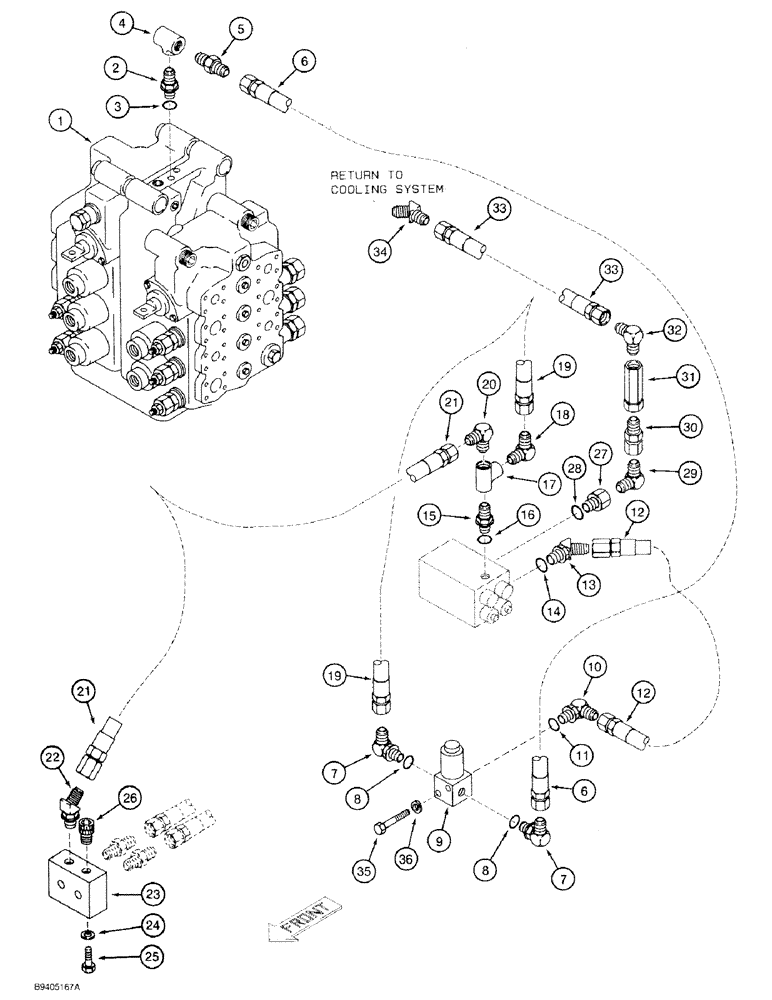

Запчасти Case 9030 (8-34) - HYDRAULIC CONTROL CIRCUIT, CUSHION VALVE HYDRUALICS (08) - HYDRAULICS

1

153562A1

CONTROL

VALVE ASSEMBLY - hydraulic control, parts list Figures 8-60 - 8-66

1шт.

2

152899A1

HYD CONNECTOR

CONNECTOR - straight, hydraulic, Includes: Ref. 3

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector, was 150960A1

1шт.

4

152135A1

TEE

- hydraulic

1шт.

5

153603A1

ADAPTER

- straight, hydraulic

1шт.

6

153230A1

HOSE ASSY.

HOSE - hydraulic, control valve to cushion valve

1шт.

7

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, hydraulic, Includes: Ref. 8

2шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, was 150960A1

1шт.

9

150844A1

VALVE

- solenoid, parts list Figure 8-42

1шт.

10

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, hydraulic, Includes: Ref. 11

1шт.

11

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, was 150960A1

1шт.

12

153534A1

HOSE ASSY.

HOSE - cushion valve to cushion shutoff solenoid

1шт.

13

150933A1

ELBOW

- 45 degree, hydraulic, Includes: Ref. 14

1шт.

14

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, was 150960A1

1шт.

15

150163A1

NIPPLE, LUBE

CONNECTOR - straight, hydraulic, Includes: Ref. 16

1шт.

16

154475A1

O-RING

- connector

1шт.

17

153598A1

TEE

- hydraulic, at cushion valve

1шт.

18

153596A1

ADAPTER

- 90 degrees, hydraulic

1шт.

19

152775A1

HOSE ASSY.

HOSE - cushion shutoff solenoid to cushion valve

1шт.

20

153495A1

ADAPTER

ELBOW - 90 degree, hydraulic

1шт.

21

152957A1

HOSE

- top of cushion valve to top of manifold

1шт.

22

153488A1

ADAPTER

ELBOW - 45 degree, hydraulic

1шт.

23

151014A1

MANIFOLD

- hydraulic

1шт.

24

150732A1

WASHER

- special

2шт.

25

626-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, class 10.9

2шт.

26

151030A1

PLUG

- hex socket

1шт.

27

153494A1

ORIFICE

BUSHING - reducer, special, with orifice, Includes: Ref. 28

1шт.

28

154475A1

O-RING

- reducer bushing

1шт.

29

153596A1

ADAPTER

- 90 degrees, hydraulic

1шт.

30

153601A1

ADAPTER

- straight, hydraulic

1шт.

31

151552A1

FILTER

- hydraulic, in-line

1шт.

32

152749A1

ADAPTER

ELBOW - hydraulic, 90 degree

1шт.

33

152612A1

HOSE,95.00 mm ID x 600.00 mm

- Hydraulic, at cushion valve to cooling system 95.00 mm ID x 600.00 mm

1шт.

34

153488A1

ADAPTER

ELBOW - 45 degree, hydraulic

1шт.

35

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, 6 - 1 x 16 mm, class 10.9

2шт.

36

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.
