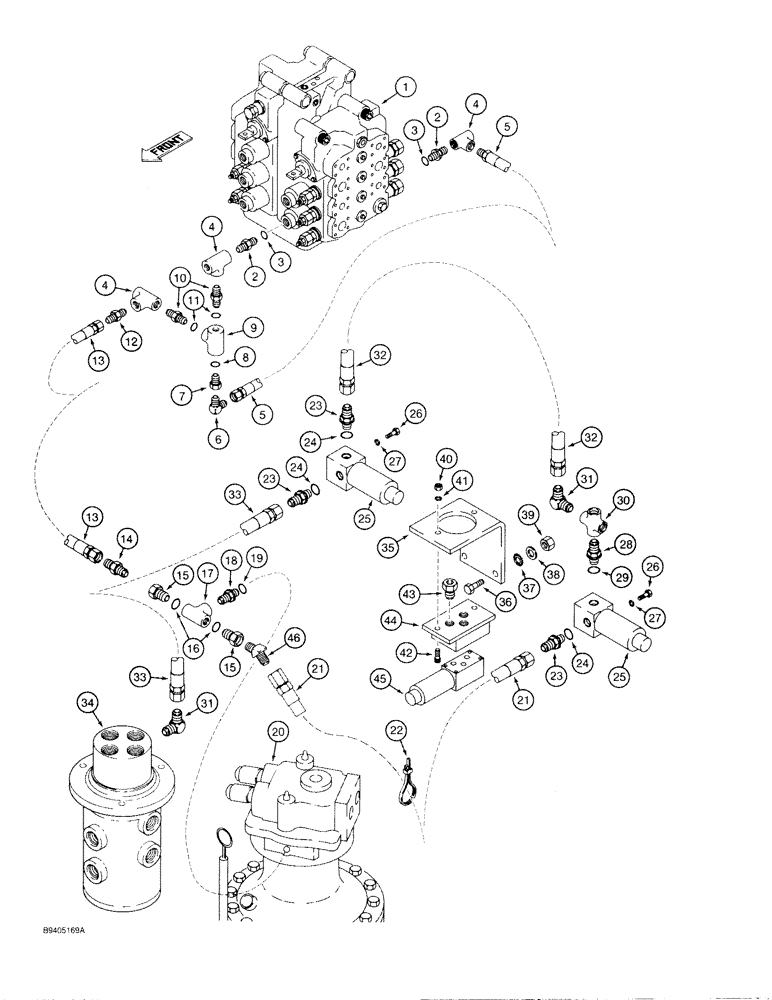

Запчасти Case 9030 (8-32) - HYDRAULIC CONTROL CIRCUIT, SWING MOTOR HYDRAULICS (08) - HYDRAULICS

1

153562A1

CONTROL

VALVE ASSEMBLY - equipment control, parts list Figures 8-62 and 8-66

1шт.

2

152899A1

HYD CONNECTOR

CONNECTOR - straight, hydraulic, Includes: Ref. 3

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector, was 150960A1

1шт.

4

152135A1

TEE

- hydraulic

3шт.

5

152388A1

HOSE,64.00 mm ID x 700.00 mm

- At equipment control valve 64.00 mm ID x 700.00 mm

1шт.

6

153596A1

ADAPTER

- 90 degree, hydraulic

1шт.

7

152309A1

SOCKET

BUSHING - reducer, Includes: Ref. 8

1шт.

8

154475A1

O-RING

- reducer bushing

1шт.

9

153374A1

SHUT-OFF VALVE

VALVE - shuttle

1шт.

10

152636A1

ADAPTER

- straight, hydraulic, Includes: Ref. 11

2шт.

11

154475A1

O-RING

- adapter

1шт.

12

153603A1

ADAPTER

- straight, hydraulic

1шт.

13

152514A1

HOSE,63mm ID x 1000mm L

- Hydraulic, Control valve to swing motor 63.00 mm ID x 1000.00 mm

1шт.

14

153603A1

ADAPTER

- straight, hydraulic

1шт.

15

152309A1

SOCKET

BUSHING - reducer, Includes: Ref. 16

2шт.

16

154475A1

O-RING

- reducer bushing

1шт.

17

153374A1

SHUT-OFF VALVE

VALVE - shuttle

1шт.

18

152636A1

ADAPTER

- straight, hydraulic, Includes: Ref. 19

1шт.

19

154475A1

O-RING

- adapter

1шт.

20

REF

INSTRUCTION

MOTOR ASSEMBLY - swing, see Figure 8-48 for correct assembly and components

1шт.

21

153592A1

HOSE

- swing brake solenoid to swing motor

1шт.

22

150071A1

MOUNTING CLIP

STRAP - tie

1шт.

23

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ADAPTER - straight, hydraulic, Includes: Ref. 24

3шт.

24

154467A1

O-RING,10.8mm ID x 2.4mm Width

- adapter, was 150960A1

1шт.

25

150844A1

VALVE

ASSEMBLY - solenoid, speed control and swing brake release, parts list Figure 8-42

2шт.

26

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, 6 - 1 x 16 mm, class 10.9

4шт.

27

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

28

152899A1

HYD CONNECTOR

CONNECTOR - straight, hydraulic, Includes: Ref. 29

1шт.

29

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector, was 150960A1

1шт.

30

152303A1

4 WAY CONNECTION

CROSS - hydraulic

1шт.

31

153596A1

ADAPTER

- 90 degrees, hydraulic

2шт.

32

152775A1

HOSE ASSY.

HOSE - travel control solenoid to swing brake solenoid

1шт.

33

152264A1

HOSE,6.3mm ID x 2200mm L

Travel control solenoid to swivel 63.00 mm ID x 2200.00 mm

1шт.

34

153502A1

JOINT

SWIVEL ASSEMBLY - hydraulic, parts list Figure 6-18

1шт.

35

153457A1

BRACKET

- solenoid mounting

1шт.

36

626-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 30 mm, class 10.9

2шт.

37

30574R1

LOCK WASHER,Ext Tooth, M12

WASHER - external tooth lock, 12 mm

2шт.

38

150988A1

WASHER

- special

2шт.

39

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

2шт.

40

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1, class 10

2шт.

41

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

42

861-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

BOLT - hex socket, 6 - 1 x 25 mm, class 12.9

2шт.

43

151030A1

PLUG

- hex socket

1шт.

44

150447A1

PLATE

- solenoid mounting

1шт.

45

150425A1

VALVE

ASSEMBLY - solenoid, control shutoff, parts list Figure 8-38

1шт.

46

153599A1

ADAPTER

ELBOW - 45 degree, hydraulic

1шт.
