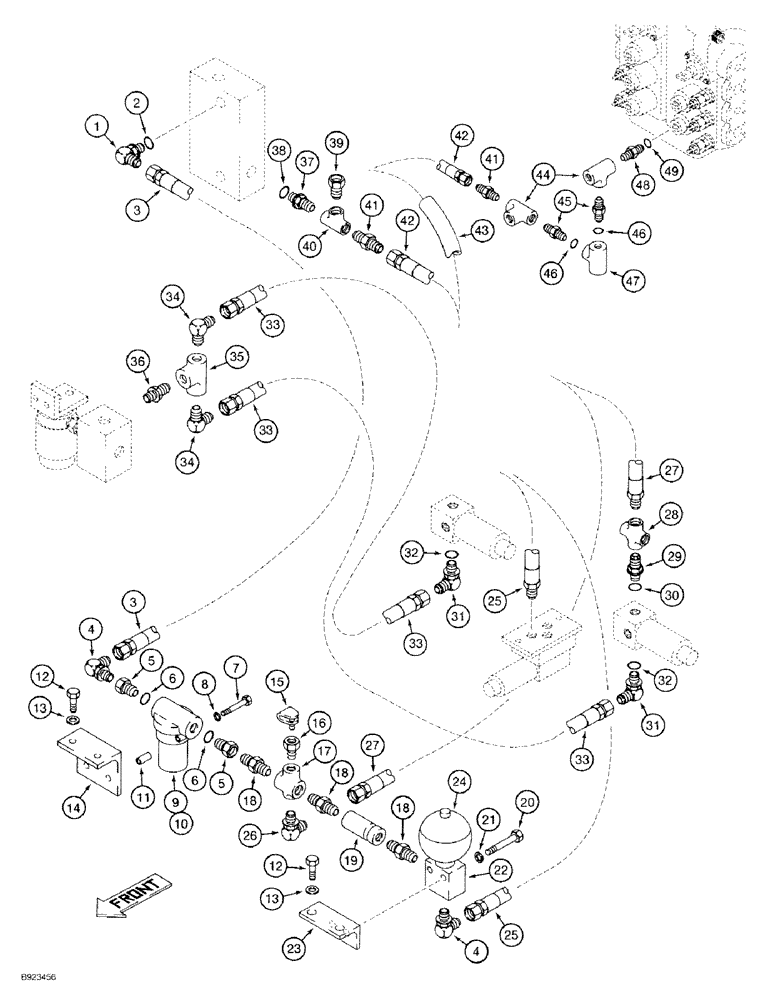

Запчасти Case 9030 (8-30) - HYDRAULIC CONTROL CIRCUIT, SWING CONTROL - PUMP TO SOLENOIDS (08) - HYDRAULICS

1

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

FITTING - elbow, 90 degree, at equipment pump, Includes: Ref. 2

1шт.

2

154475A1

O-RING

- elbow

1шт.

3

153376A1

HOSE

-, Serial Range: pump-filter

1шт.

4

153495A1

ADAPTER

ELBOW - 90 degree, hydraulic

2шт.

5

152317A1

SOCKET

BUSHING - reducer, Includes: Ref. 6

2шт.

6

154487A1

O-RING

- reducer bushing

1шт.

7

153231A1

SPECIAL BOLT,High Strength, Hex, M6 x 80mm

BOLT - hex, special, filter mounting

2шт.

8

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

153168A1

FILTER

ASSEMBLY - hydraulic oil, pilot line, Includes: Ref. 9 - 10

1шт.

9

154623A1

O-RING

- element case to filter head

1шт.

9a

154074A1

BACK-UP RING

RING - backup, element case to filter head, not shown

1шт.

10

153233A1

HYDRAULIC OIL FILTER

ELEMENT - filter, pilot line

1шт.

11

150325A1

SPACER

-, Serial Range: filter-bracket

2шт.

12

626-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 30 mm, class 10.9

4шт.

13

150988A1

WASHER

- special

4шт.

14

153496A1

BRACKET

- filter mounting

1шт.

15

S243647

COUPLING

PLUG - oil

1шт.

16

150499A1

BUSHING

- reducer

1шт.

17

152686A1

CROSS

- hydraulic, at coupler

1шт.

18

152130A1

NIPPLE, LUBE

CONNECTOR - straight, hydraulic

3шт.

19

152937A1

VALVE, CHECK

VALVE - hydraulic check

1шт.

20

838-8050

BOLT - hex, accumulator manifold mounting

2шт.

21

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

22

150898A1

MANIFOLD

- at accumulator

1шт.

23

153518A1

BRACKET

- accumulator mounting

1шт.

24

150894A1

ACCUMULATOR

- hydraulic line

1шт.

25

153408A1

HOSE

- control shutoff, Serial Range: solenoid-accumulator

1шт.

26

153596A1

ADAPTER

- 90 degrees, hydraulic

1шт.

27

152388A1

HOSE,64.00 mm ID x 700.00 mm

- Swing brake solenoid to cross at coupler 64.00 mm ID x 700.00 mm

1шт.

28

152303A1

4 WAY CONNECTION

CROSS - hydraulic

1шт.

29

152899A1

HYD CONNECTOR

CONNECTOR - straight, hydraulic, Includes: Ref. 30

1шт.

30

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector,was 150960A1

1шт.

31

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, hydraulic, Includes: Ref. 32

2шт.

32

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, was 150960A1

1шт.

33

153230A1

HOSE ASSY.

HOSE - hydraulic, to pilot return filter from soleniod

2шт.

34

153596A1

ADAPTER

- 90 degrees, hydraulic

2шт.

35

152135A1

TEE

- hydraulic

1шт.

36

152129A1

NIPPLE, LUBE

CONNECTOR - straight, hydraulic

1шт.

37

152899A1

HYD CONNECTOR

CONNECTOR - straight, hydraulic, Includes: Ref. 38

1шт.

38

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector, was 150960A1

1шт.

39

152191A1

BUSHING

- reducer

1шт.

40

152135A1

TEE

- hydraulic

1шт.

41

153603A1

ADAPTER

- straight, hydraulic

2шт.

42

151888A1

HOSE,63.00 mm ID x 1350.00 mm

- Equipment pump to control valve 63.00 mm ID x 1350.00 mm

1шт.

43

152660A1

PLASTIC-RUBBER TUBE

GUARD - hose

1шт.

44

152135A1

TEE

- hydraulic

2шт.

45

152636A1

ADAPTER

- straight, hydraulic, Includes: Ref. 46

2шт.

46

154475A1

O-RING

- adapter

1шт.

47

153374A1

SHUT-OFF VALVE

VALVE - shuttle

1шт.

48

152899A1

HYD CONNECTOR

CONNECTOR - straight, hydraulic, Includes: Ref. 49

1шт.

49

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector, was 150960A1

1шт.
