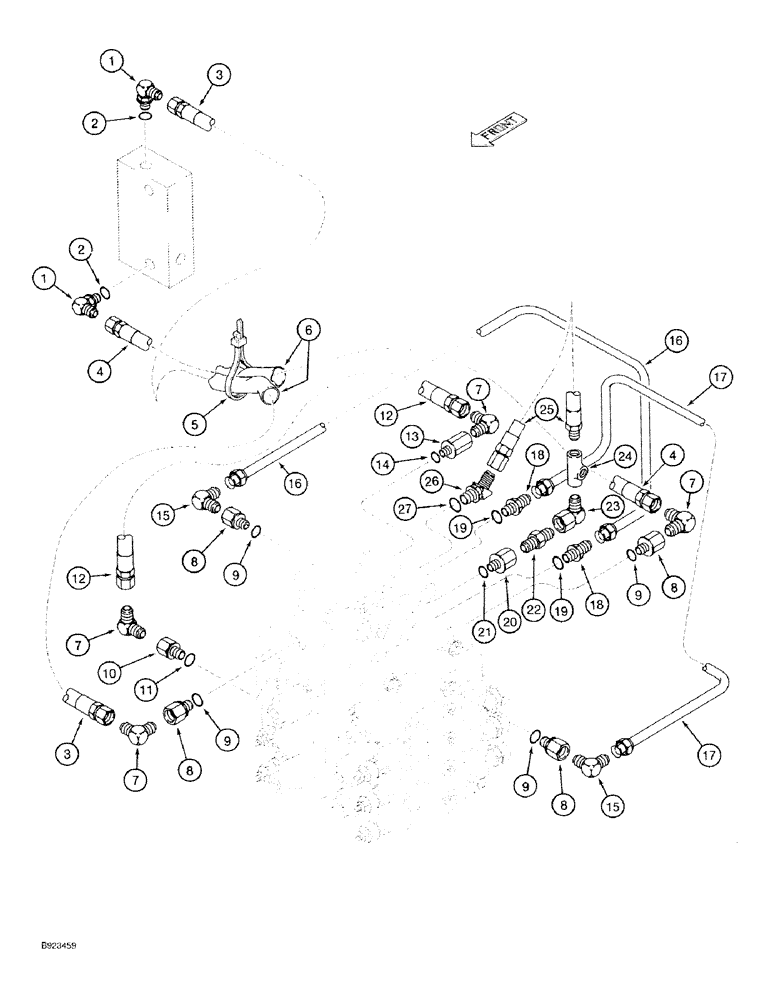

Запчасти Case 9030 (8-28) - HYDRAULIC CONTROL CIRCUIT, PILOT LINES AT CONTROL VALVE (08) - HYDRAULICS

1

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

- 90 degree, hydraulic, Includes: Ref. 2

2шт.

2

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, was 150960A1

1шт.

3

153592A1

HOSE

- equipment, Serial Range: pump-valve

1шт.

4

151888A1

HOSE,63.00 mm ID x 1350.00 mm

- Lower port of equipment pump to rear of control valve 63.00 mm ID x 1350.00 mm

1шт.

5

150071A1

MOUNTING CLIP

STRAP - tie

1шт.

6

152660A1

PLASTIC-RUBBER TUBE

GUARD - hose

2шт.

7

153596A1

ADAPTER

- 90 degrees, hydraulic

4шт.

8

153412A1

SOCKET

BUSHING - reducer, Includes: Ref. 9

4шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

- reducer bushing, was 150960A1

1шт.

10

153494A1

ORIFICE

BUSHING - reducer, special, with orifice, Includes: Ref. 11

1шт.

11

154475A1

O-RING

- reducer bushing

1шт.

12

153498A1

HOSE ASSY.

HOSE - pilot, equipment control valve

1шт.

13

153499A1

SOCKET

BUSHING - reducer, Includes: Ref. 14

1шт.

14

154475A1

O-RING

- reducer bushing

1шт.

15

151731A1

ELBOW

- 90 degree, hydraulic

2шт.

16

153479A1

TUBE

- pilot, dual flow

1шт.

17

153478A1

TUBE

- pilot, dual flow

1шт.

18

151693A1

MULTIPOLE CONNECTOR

CONNECTOR - straight, hydraulic, Includes: Ref. 19

2шт.

19

154467A1

O-RING,10.8mm ID x 2.4mm Width

- connector, was 150960A1

1шт.

20

153497A1

SOCKET

BUSHING - reducer, Includes: Ref. 21

1шт.

21

154467A1

O-RING,10.8mm ID x 2.4mm Width

- reducer bushing, was 150960A1

1шт.

22

152129A1

NIPPLE, LUBE

CONNECTOR - straight, hydraulic

1шт.

23

152155A1

ELBOW

- 90 degree, hydraulic

1шт.

24

152135A1

TEE

- hydraulic

1шт.

25

152362A1

HOSE,530.00 mm

- Pilot, Equipment control valve 530.00 mm

1шт.

26

150933A1

ELBOW

- 45 degree, hydraulic, Includes: Ref. 27

1шт.

27

154467A1

O-RING,10.8mm ID x 2.4mm Width

- elbow, was 150960A1

1шт.
