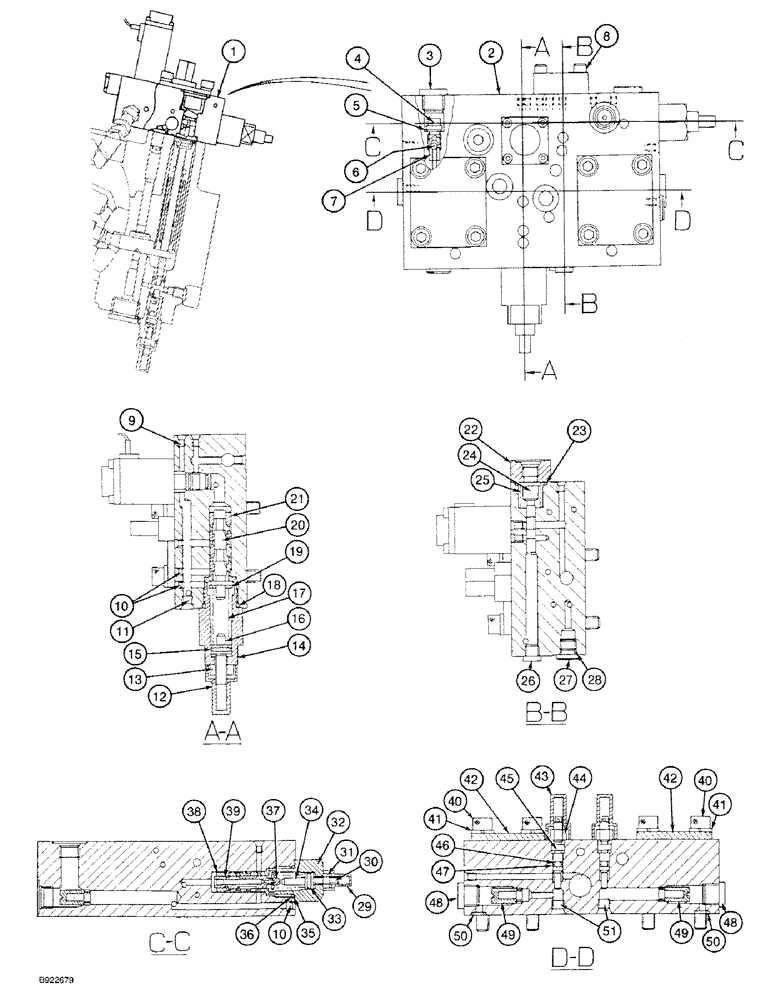

Запчасти Case 9030 (8-20) - 153584A1 EQUIPMENT PUMP, CONTROL ASSEMBLY (08) - HYDRAULICS

153584A1

PUMP

ASSEMBLY - hydraulic oil, parts list Figures 8-14 - 8-22, Includes: Ref. 1 - 51

1шт.

1

NSS

NOT SOLD SEPARAT

CONTROL ASSEMBLY - equipment pump, Includes: Ref. 2 - 51

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - control assembly

1шт.

3

156635A1

PLUG

- port

2шт.

4

155501A1

PLUG

- check ball retaining

2шт.

5

155304A1

PACKING

GASKET - plug

2шт.

6

161910A1

BALL

- check, steel (Replaces 156634A1)

2шт.

7

156636A1

BUSHING

SEAT - ball

2шт.

8

861-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

BOLT - hex socket, 6 - 1 x 25 mm, class 12.9

2шт.

9

NSS

NOT SOLD SEPARAT

PLUG - port

6шт.

10

NSS

NOT SOLD SEPARAT

PLUG - port

37шт.

11

NSS

NOT SOLD SEPARAT

PLUG - port

3шт.

12

156362A1

CAP

- relief

1шт.

13

156202A1

LOCK NUT

- adjusting, spring tension

2шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - relief

1шт.

15

155189A1

O-RING

- seal, adjuster

1шт.

16

NSS

NOT SOLD SEPARAT

SCREW - adjusting

1шт.

17

NSS

NOT SOLD SEPARAT

SPRING - relief

1шт.

18

154508A1

O-RING

- relief body

1шт.

Part of Equipment Pump Seal Kit P/N 156637A1

1шт.

19

155689A1

SPACER

SEAT - spring

1шт.

20

NSS

NOT SOLD SEPARAT

SPOOL - relief

1шт.

21

NSS

NOT SOLD SEPARAT

BUSHING - relief

1шт.

22

156632A1

COVER

- relief spool

1шт.

23

154498A1

O-RING

- spool cover

1шт.

Part of Equipment Pump Seal Kit P/N 156637A1

1шт.

24

NSS

NOT SOLD SEPARAT

SPOOL - relief

1шт.

25

156108A1

SPRING

- spool return

1шт.

26

153871A1

PLUG

- port

1шт.

27

155498A1

PLUG

- port

2шт.

28

154467A1

O-RING,10.8mm ID x 2.4mm Width

- port plug

4шт.

Part of Equipment Pump Seal Kit P/N 156637A1

1шт.

156637A1

SEAL KIT

- seal, Includes: Ref. 18, 23 and 28, see Figures 8-14 - 8-22 for complete kit.

1шт.

29

156361A1

CAP

- relief

1шт.

30

878-50625

SET SCREW,Hex Skt, M6 x 20mm, Dog Pt

SCREW - set, hex socket, 6 - 1 x 25 mm, dog point

1шт.

31

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1, class 10

1шт.

32

NSS

NOT SOLD SEPARAT

GUIDE - relief

1шт.

33

155086A1

O-RING

- spring seat

1шт.

34

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

35

NSS

NOT SOLD SEPARAT

SPRING - relief

1шт.

Part of Equipment Pump Seal Kit P/N 156637A1

1шт.

37

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

38

NSS

NOT SOLD SEPARAT

BUSHING - relief

1шт.

39

NSS

NOT SOLD SEPARAT

SPOOL - relief

1шт.

40

863-10080

HEX SOC SCREW,M10 x 80mm, Cl 12.9

BOLT - hex socket, 10 - 1.5 x 80 mm, class 12.9

8шт.

41

156633A1

SPRING WASHER

WASHER - lock

8шт.

42

NSS

NOT SOLD SEPARAT

COVER - flow adjuster

1шт.

43

156363A1

CAP

COVER - access, control housing

2шт.

44

829-1308

NUT,M8, Cl 10

- hex, 8 mm - 1.25, Cl 10

2шт.

45

NSS

NOT SOLD SEPARAT

ADJUSTER - flow

2шт.

46

153937A1

BACK-UP RING

RING - backup, adjuster seal

2шт.

47

154443A1

O-RING

- flow adjuster

2шт.

48

155500A1

PLUG

- port

2шт.

49

NSS

NOT SOLD SEPARAT

ELEMENT - filter

3шт.

50

155185A1

O-RING

- port seal

2шт.

Part of Equipment Pump Seal Kit P/N 156637A1

1шт.

51

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.

156637A1

SEAL KIT

- seal, Includes: Ref. 36 and 50, see Figures 8-16 - 8-20 for complete kit.

1шт.
