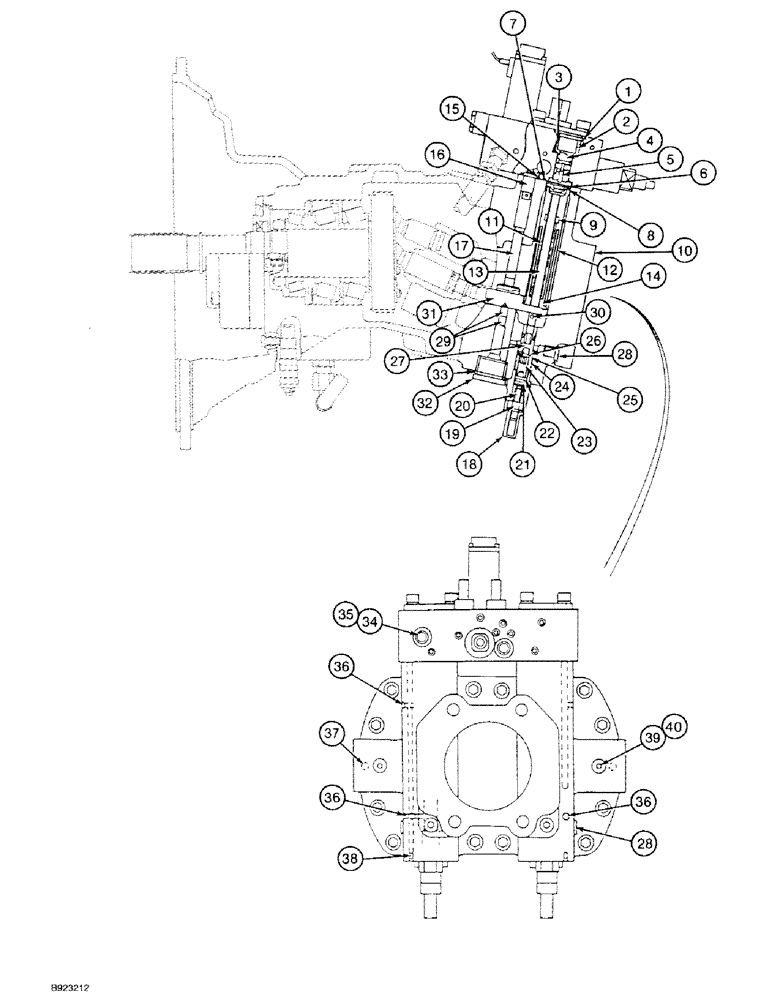

Запчасти Case 9030 (8-16) - 153584A1 EQUIPMENT PUMP, VALVE SECTION (08) - HYDRAULICS

153584A1

PUMP

ASSEMBLY - equipment, parts list Figures 8-14 - 8-22, Includes: Ref. 1 - 40

1шт.

1

155208A1

O-RING

- seal

2шт.

Part of Equipment Pump Seal Kit P/N 156637A1

1шт.

2

NSS

NOT SOLD SEPARAT

SPRING - control

2шт.

3

NSS

NOT SOLD SEPARAT

SHIM - washer

6шт.

4

NSS

NOT SOLD SEPARAT

PISTON - regulator

2шт.

5

NSS

NOT SOLD SEPARAT

PISTON - regulator

2шт.

6

NSS

NOT SOLD SEPARAT

RING - regulator

2шт.

7

155208A1

O-RING

- seal

2шт.

Part of Equipment Pump Seal Kit P/N 156637A1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT - spring

2шт.

9

NSS

NOT SOLD SEPARAT

SET - shim

1шт.

10

NSS

NOT SOLD SEPARAT

BODY - control

1шт.

11

NSS

NOT SOLD SEPARAT

SPRING - control, inner

2шт.

12

NSS

NOT SOLD SEPARAT

SPRING - control, outer

2шт.

13

NSS

NOT SOLD SEPARAT

ROD - control

2шт.

14

NSS

NOT SOLD SEPARAT

RETAINER - spring

2шт.

15

156618A1

O-RING

- seal

2шт.

Part of Equipment Pump Seal Kit P/N 156637A1

1шт.

16

156617A1

RETAINER

- valve

2шт.

17

NSS

NOT SOLD SEPARAT

PLUNGER - control

2шт.

18

156362A1

CAP

- relief

2шт.

19

NSS

NOT SOLD SEPARAT

NUT - adjusting

2шт.

20

159383A1

SCREW

- adjusting

2шт.

21

155086A1

O-RING

- seal

2шт.

22

NSS

NOT SOLD SEPARAT

GUIDE - spring

2шт.

23

NSS

NOT SOLD SEPARAT

SPRING - inner

2шт.

24

NSS

NOT SOLD SEPARAT

SPRING - outer

2шт.

25

NSS

NOT SOLD SEPARAT

SEAT - spring

2шт.

26

NSS

NOT SOLD SEPARAT

BUSHING - control assembly

2шт.

27

NSS

NOT SOLD SEPARAT

SPOOL - control

2шт.

28

156619A1

PLUG

- port

4шт.

29

877-51012

SET SCREW,Hex Skt, M10 x 12mm, Dog Pt

SCREW - set, 10 - 1.5 x 12 mm, dog point

4шт.

30

738-1414

LOCK PIN,4mm OD x 14mm L, Slotted

PIN - cotter, 4 x 14 mm, heavy series

2шт.

31

NSS

NOT SOLD SEPARAT

ROD - control assembly

2шт.

32

156620A1

PLUG

- port

2шт.

33

156621A1

SEAL

- plug

2шт.

Part of Equipment Pump Seal Kit P/N 156637A1

1шт.

34

156624A1

SPRING WASHER

WASHER - lock

12шт.

35

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 35 mm, class 12.9

12шт.

36

NSS

NOT SOLD SEPARAT

PLUG - port

6шт.

37

155687A1

PIN

- dowel

2шт.

38

NSS

NOT SOLD SEPARAT

PLUG - port

2шт.

39

154467A1

O-RING,10.8mm ID x 2.4mm Width

- port plug

2шт.

Part of Equipment Pump Seal Kit P/N 156637A1

1шт.

40

155498A1

PLUG

- port

2шт.

156637A1

SEAL KIT

- seal, equipment pump, Includes: Ref. 1, 7, 15, 33 and 39, see Figures 8-14 - 8-22 for complete kit.

1шт.
