Запчасти Case 9030 (8-12) - BASIC HYDRAULIC CIRCUIT, COOLING SYSTEM (08) - HYDRAULICS

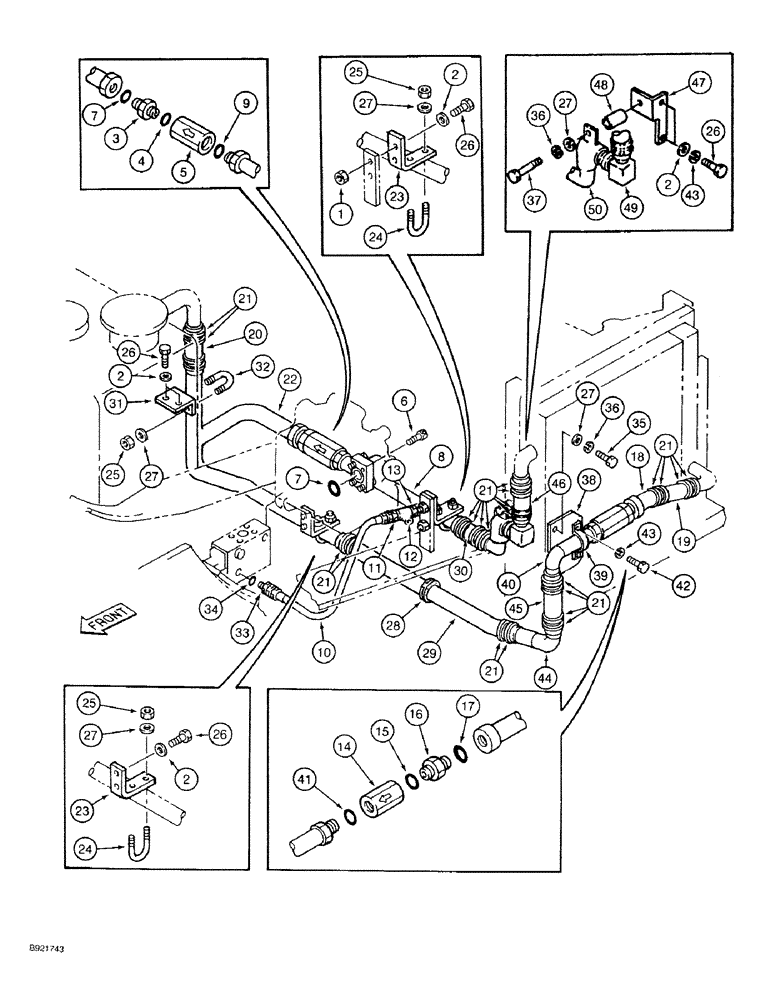

Схема запчастей Case 9030 - (8-12) - BASIC HYDRAULIC CIRCUIT, COOLING SYSTEM (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

2

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

3

151474A1

UNION

ADAPTER - tube to check valve, Includes: Ref. 4

1шт.

4

152197A1

O-RING

- adapter

1шт.

5

153476A1

VALVE, CHECK

VALVE - check

1шт.

6

863-12035

HEX SOC SCREW,M12 x 35mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 35 mm, class 12.9

4шт.

7

150519A1

O-RING

- cooling system return line

2шт.

8

153579A1

TUBE

- hydraulic, Serial Range: oil,-radiator

1шт.

9

152197A1

O-RING

- check valve

1шт.

10

153508A1

HOSE ASSY.

HOSE - return, valve to cooler line

1шт.

11

150073A1

ADAPTER

- hose to check valve

1шт.

12

150702A1

TEE

- special

1шт.

13

152131A1

NIPPLE, LUBE

CONNECTOR -, Serial Range: tee-tube

1шт.

14

153477A1

VALVE, CHECK

VALVE - check

1шт.

15

150562A1

O-RING

- adapter to check valve

1шт.

16

151471A1

UNION

ADAPTER - tube to check valve, Includes: Ref. 17

1шт.

17

150583A1

O-RING

- adapter

1шт.

18

153580A1

TUBE,42.7 mm OD, 203.4 mm Length

- radiator to check valve

1шт.

19

153221A1

HOSE

- cooler line return, at radiator

1шт.

20

153385A1

HOSE

- cooler line return, at hydraulic tank

1шт.

21

157287A1

COLLAR

CLAMP - hose

24шт.

22

153566A1

HYD TUBE

TUBE - cooler return, at hydraulic tank

1шт.

23

153444A1

BRACKET

- tube mounting

2шт.

24

152065A1

U-BOLT,M10 x 56mm W x 68mm L

BOLT - U-type, tube clamp retaining

2шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

26

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 35 mm, Grade 10.9

8шт.

27

150409A1

WASHER

- special

8шт.

28

152117A1

GROMMET

- rubber

1шт.

29

153577A1

HOSE

- return, cooling system

1шт.

30

151939A1

HOSE,42.70 mm ID x 250.00 mm

- Cooling system, to radiator 42.70 mm ID x 250.00 mm

1шт.

31

153446A1

BRACKET

- tube support, at tank

1шт.

32

152067A1

U-BOLT,M10 x 62mm W x 74mm L

BOLT - U-type, tube mounting

1шт.

33

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER - hose, at valve, Includes: Ref. 34

1шт.

34

154487A1

O-RING

- adapter

1шт.

35

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

36

892-11010

LOCK WASHER,M10

2шт.

37

827-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

- hex, 10 - 1.5 x 65 mm, class 10.9

1шт.

38

153578A1

BRACKET

- tube support, at radiator

1шт.

39

152638A1

SPECIAL CLAMP

CLAMP - tube

1шт.

40

153581A1

TUBE,42.70mm OD, 160, 120mm L

- 90 degree, cooling system return line

1шт.

41

150583A1

O-RING

- check, Serial Range: valve-tube

1шт.

42

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

2шт.

43

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.

44

153582A1

TUBE,42.7 mm OD, 138, 138 mm Length

- 90 degree, cooler system return

1шт.

45

152788A1

HYDRAULIC HOSE

- Cooler return

1шт.

46

152788A1

HYDRAULIC HOSE

- To radiator, Cooler return, was 153221A1

1шт.

47

156709A1

BRACKET

- tube support

1шт.

48

156461A1

SPACER

- tube mounting

1шт.

49

156458A1

ELBOW

- 90 degree, swivel

1шт.

50

156459A1

TUBE

- 90 degree, cooling system

1шт.

Выбрано товаров: 50
