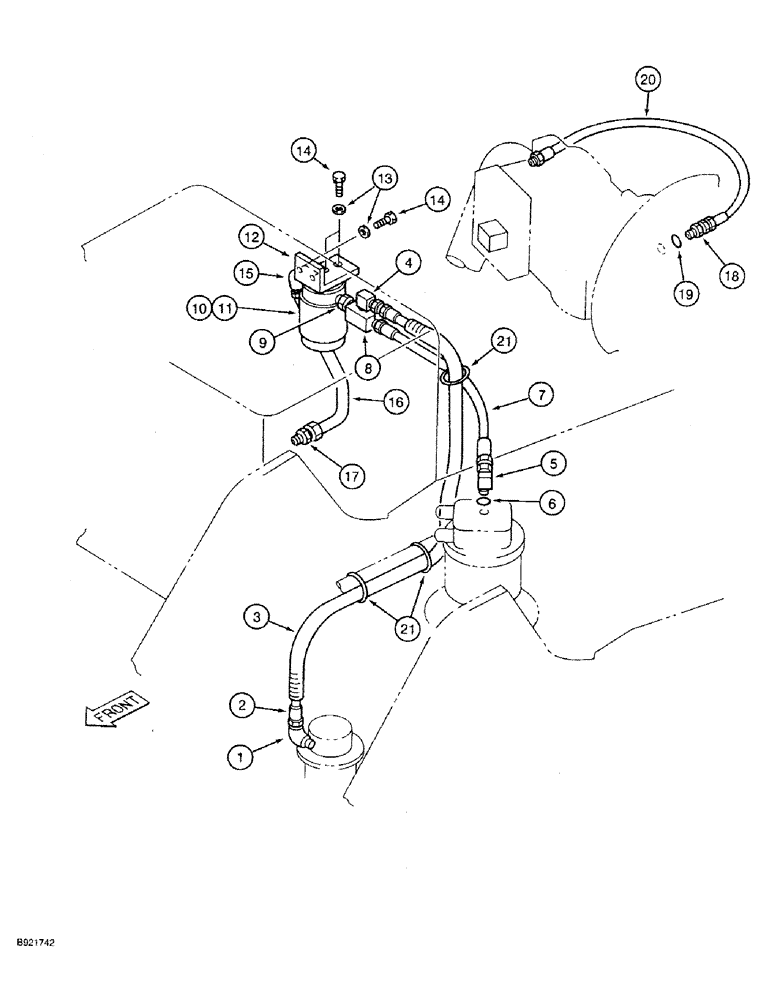

Запчасти Case 9030 (8-10) - BASIC HYDRAULIC CIRCUIT, RETURN LINES TO FILTER AND RESERVOIR (08) - HYDRAULICS

1

152161A1

ELBOW

FITTING - elbow, 90 degree, at hydraulic swivel

1шт.

2

153512A1

HOSE ASSY.

HOSE - hydraulic return, Serial Range: swivel-filter

1шт.

3

150442A1

TUBE

GUARD - hose

1шт.

4

150602A1

ADAPTER

- hose, 90 degree

1шт.

5

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

FITTING - elbow, 90 degree, at swing motor

1шт.

6

154475A1

O-RING

- elbow

1шт.

7

150667A1

HYDRAULIC HOSE

- Swing, Serial Range: motor-filter

1шт.

8

153500A1

MANIFOLD

- hydraulic return line

1шт.

9

152133A1

NIPPLE, LUBE

FITTING - connector, Serial Range: manifold-filter

1шт.

10

150792A1

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil, return line, Includes: Ref. 11

1шт.

11

150794A1

HYDRAULIC OIL FILTER

ELEMENT - filter

1шт.

12

153456A1

BRACKET

- filter mounting

1шт.

13

150732A1

WASHER

- flat, 10 mm

4шт.

14

626-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, class 10.9

4шт.

15

151742A1

ELBOW

FITTING - elbow, 90 degree, at, Serial Range: filter-reservoir

1шт.

16

153455A1

TUBE,407, 127 mm Length

- return line, filter to reservoir

1шт.

17

151680A1

CONNECTOR, ELEC

CONNECTOR - return line, at reservoir

1шт.

18

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ADAPTER - hose, at pump, Includes: Ref. 19

1шт.

19

154475A1

O-RING

- adapter

1шт.

20

153428A1

HOSE ASSY.

HOSE - hydraulic, return line, at pump

1шт.

21

150498A1

MOUNTING CLIP

STRAP - tie, return hose

3шт.
