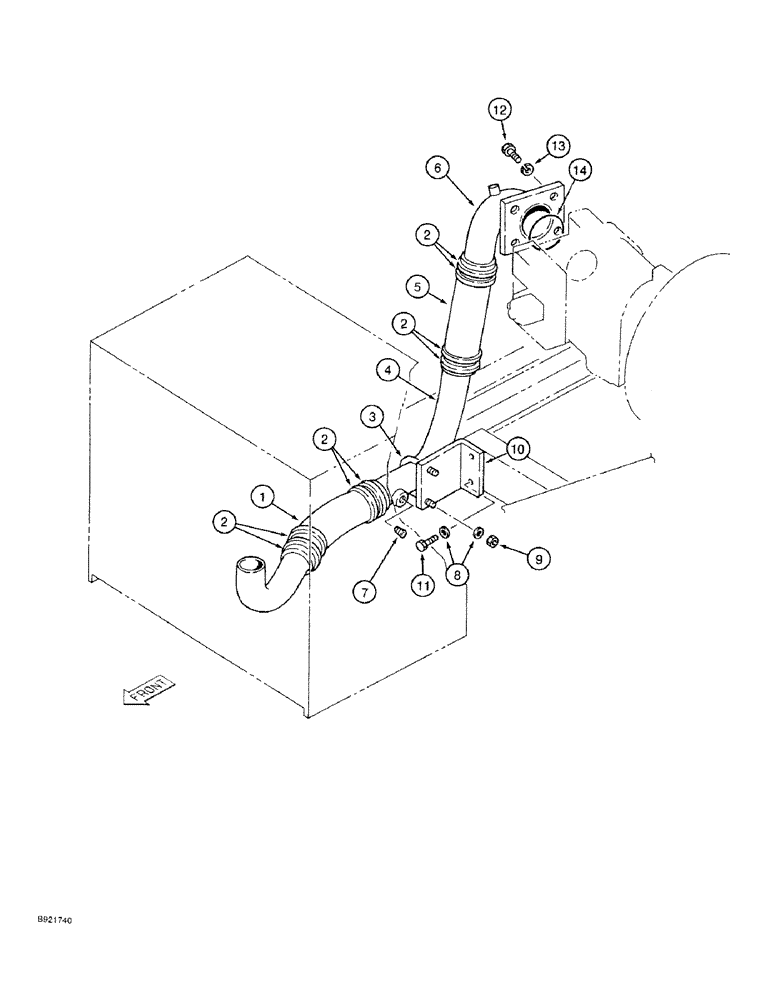

Запчасти Case 9030 (8-06) - BASIC HYDRAULIC CIRCUIT, RESERVOIR TO PUMP (08) - HYDRAULICS

1

153447A1

HOSE

- suction, at reservoir

1шт.

2

150294A1

CLAMP,95mm - 115mm

CLAMP - hose

8шт.

3

152072A1

SUPPORT,M12 x 92mm W x 108mm L

BOLT - special, U-type

1шт.

4

158082A1

TUBE

- suction, center, with tapped boss, was 153575A1

1шт.

5

153440A1

HOSE

- suction, pump end

1шт.

6

158093A1

TUBE ASSY.

TUBE - suction line, at pump, was 153576A1

1шт.

7

151035A1

PLUG

- pipe, center suction tube

1шт.

8

150811A1

WASHER

- flat, 12 mm

4шт.

9

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

10

153439A1

BRACKET

- suction line support

1шт.

11

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 35 mm, Grade 10.9

2шт.

12

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

4шт.

13

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

14

151931A1

O-RING

- suction line tube at pump

1шт.
