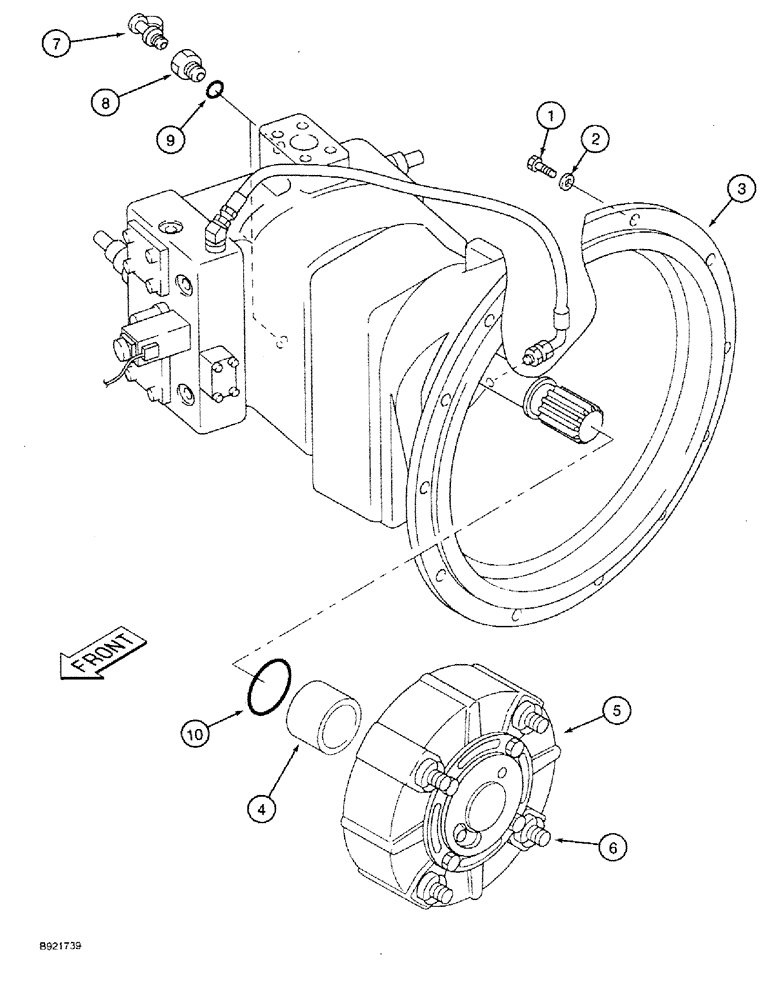

Запчасти Case 9030 (8-04) - HYDRAULIC PUMP COUPLING (08) - HYDRAULICS

1

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

9шт.

2

150409A1

WASHER

- special

9шт.

3

153584A1

PUMP

ASSEMBLY - hydraulic oil, parts list Figures 8-14 - 8-22

1шт.

4

153585A1

SPACER

- coupling

1шт.

153399A1

COUPLING

ASSEMBLY - hydraulic pump, Includes: Ref. 5 and 6

1шт.

5

153453A1

COUPLING

- hydraulic pump

1шт.

6

153454A1

DOWEL

PIN - special

4шт.

7

150290A1

PLUG

- oil, if used

2шт.

8

151136A1

BUSHING

- reducer, 9/16 - 18 NF, if used, Includes: Ref. 9

2шт.

9

154467A1

O-RING,10.8mm ID x 2.4mm Width

- reducer bushing, was 150960A1

1шт.

10

152066A1

O-RING

- pump shaft to coupling spacer

1шт.
