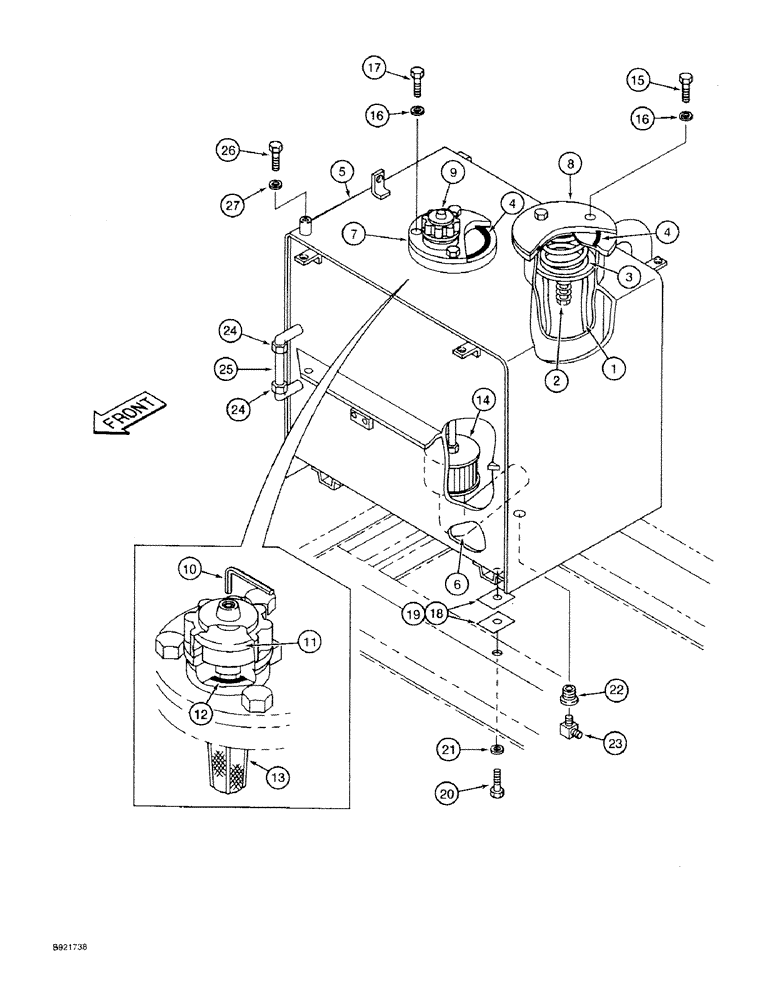

Запчасти Case 9030 (8-02) - HYDRAULIC RESERVOIR (08) - HYDRAULICS

1

153468A1

FILTER

- return, hydraulic oil

1шт.

2

150515A1

VALVE, PRESSURE RELI

VALVE - relief, hydraulic reservoir

1шт.

3

153463A1

COMPRESSION SPRING

SPRING - compression

1шт.

4

154837A1

O-RING

- hydraulic reservoir cover

2шт.

153523A1

TANK, HYDRAULIC OIL

RESERVOIR ASSEMBLY - hydraulic oil, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

RESERVOIR - hydraulic oil

1шт.

6

153197A1

TUBE

- strainer

1шт.

7

153451A1

COVER

- air breather

1шт.

8

153462A1

COVER

- return filter

1шт.

153482A1

BREATHER

ASSEMBLY - air, hydraulic reservoir, Includes: Ref. 9 - 13

1шт.

9

NSS

NOT SOLD SEPARAT

COVER - breather, with screw

1шт.

10

153611A1

CROSS SPANNER

WRENCH - Allen, 4 mm, air breather filter

1шт.

11

151670A1

FILTER, ENGINE OIL

ELEMENT - filter, hydraulic oil

1шт.

12

150579A1

O-RING

- oil filter

1шт.

13

151673A1

STRAINER ASSY.

STRAINER - hydraulic oil, upper

1шт.

14

153461A1

STRAINER ASSY.

STRAINER - hydraulic oil, lower

1шт.

Ref. 153461A1 strainer INCLUDES an NSS spring

1шт.

15

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, class 10.9

4шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

8шт.

17

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

18

150166A1

SHIM

PLATE - shim

1шт.

19

150479A1

SHIM

PLATE - shim

1шт.

20

628-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

4шт.

21

150991A1

WASHER

- special

4шт.

22

151073A1

BUSHING

- reducer

1шт.

23

150962A1

COCK, DRAIN

FITTING - drain, reservoir

1шт.

24

150527A1

ELBOW

- 90 degree, oil level gauge

2шт.

25

150531A1

TUBE,8 mm ID, 10 mm OD, 122 mm Length

- sight gauge, oil level

1шт.

26

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

1шт.

27

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.
