Запчасти Case 9030 (6-20) - AUXILIARY HYDRAULIC CONTROLS (06) - POWER TRAIN

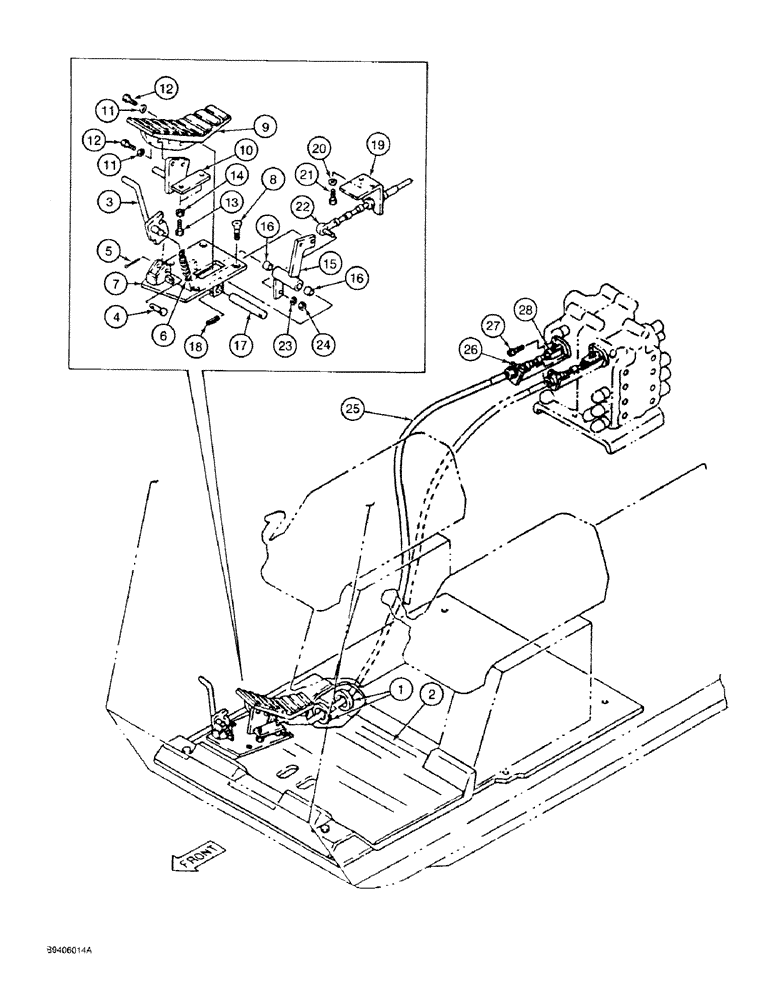

Схема запчастей Case 9030 - (6-20) - AUXILIARY HYDRAULIC CONTROLS (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

152529A1

GROMMET

- rubber

2шт.

2

156644A1

FLOOR MAT

MAT - floor

1шт.

3

156651A1

LEVER

- auxiliary control

1шт.

4

156652A1

HEADED PIN

PIN - clevis

1шт.

5

130003

COTTER PIN,3mm OD x 30mm OAL

Replaces 156467A1

1шт.

6

156653A1

TENSION SPRING

SPRING - lever return

1шт.

7

156650A1

BRACKET

- mounting, auxiliary control

1шт.

8

150403A1

SCREW,Spcl, Flat Hd Csk, M10 x 20mm

BOLT - hex socket, bracket retaining

4шт.

9

150524A1

PEDAL

- auxiliary control

1шт.

10

156647A1

BRACKET

- pedal mounting

1шт.

11

150604A1

WASHER

- special

4шт.

12

150555A1

BOLT,High Strength, Hex, M10 x 30mm

BOLT - special, pedal mounting

4шт.

13

156648A1

BOLT,Hex, M10 x 35mm, Full Thd

- special

2шт.

14

156649A1

NUT

- special

2шт.

15

156645A1

LINK ASSY.

BELLCRANK - auxiliary control

1шт.

16

150505A1

BEARING, NEEDLE

BEARING - needle, bellcrank

2шт.

17

156646A1

PIN

- bracket mounting

1шт.

18

738-1632

LOCK PIN,M6 x 32, Slotted

PIN - roll, 6 x 32 mm

1шт.

19

156654A1

BRACKET

- cable support

1шт.

20

150409A1

WASHER

- special

2шт.

21

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, class 10.9

4шт.

22

151963A1

END

CONNECTOR - 90 degree, cable, Serial Range: end-bellcrank

1шт.

23

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

25

153449A1

CABLE PULLING GRIP

CABLE - control, auxiliary hydraulic (Replaces 153443A1)

1шт.

26

157200A1

BRACKET

- cable support, at control valve

1шт.

27

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

SCREW, Hex Soc Hd, M10 x 25, 12.9

2шт.

28

153450A1

END

CLEVIS - cable, at valve

1шт.

Выбрано товаров: 28
