Запчасти Case 9030 (6-18) - HYDRAULIC SWIVEL (06) - POWER TRAIN

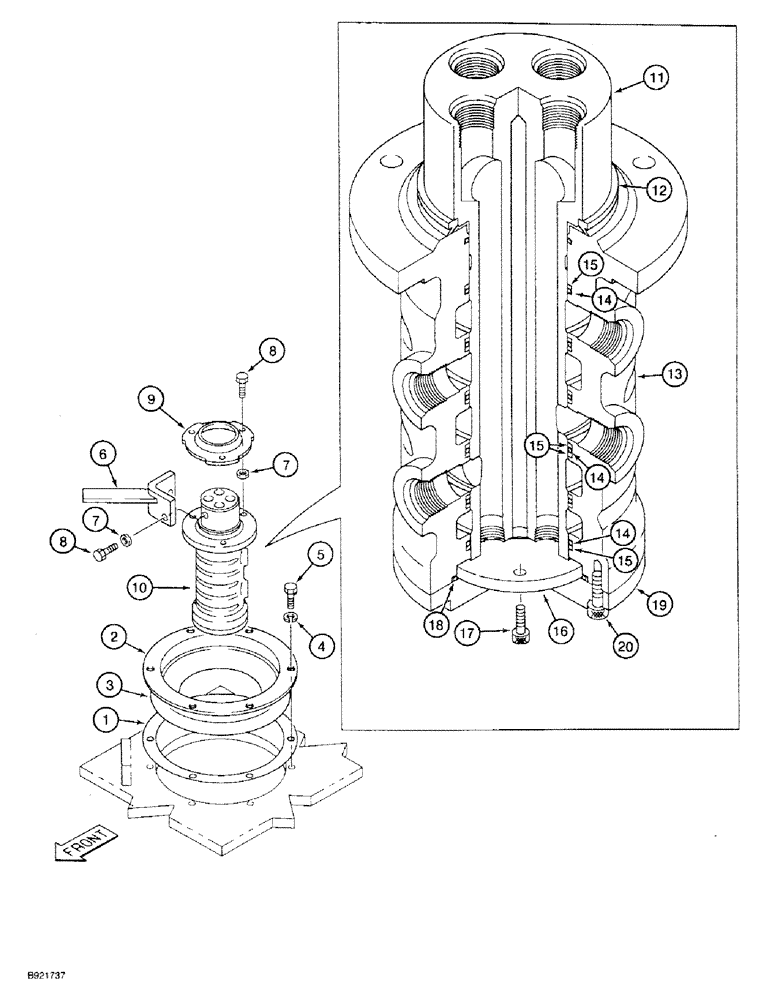

Схема запчастей Case 9030 - (6-18) - HYDRAULIC SWIVEL (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

1

152596A1

RUBBER SEAL

GASKET - rubber

1шт.

2

152635A1

RETAINER

- seal

1шт.

3

151009A1

SEALING RING

RING - seal

1шт.

4

892-10012

LOCK WASHER,M12

WASHER - lock, 12 mm

6шт.

5

628-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- Hex, M12 x 20, 10.9, Full Thd

6шт.

6

153505A1

BAR

COLLAR - lock

1шт.

7

150811A1

WASHER

- special

8шт.

8

626-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 30 mm, class 10.9

5шт.

9

152806A1

COVER

- swivel

1шт.

10

153502A1

JOINT

SWIVEL ASSEMBLY - hydraulic, Includes: Ref. 11 - 20

1шт.

11

153503A1

AXLE

SHAFT - swivel

1шт.

12

153403A1

RING

- swivel shaft

1шт.

13

153504A1

ROTOR

- hydraulic swivel

1шт.

14

154696A1

O-RING

- rotor to shaft seal

7шт.

15

153467A1

BACK-UP RING

RING - back-up, Serial Range: rotor-shaft

10шт.

16

153464A1

PLATE

- thrust

1шт.

17

861-8020

HEX SOC SCREW,M8 x 20mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 20 mm, class 12.9

4шт.

18

153466A1

O-RING,104.4mm ID x 3.1mm Width

- swivel base

1шт.

19

153465A1

COVER

BASE - swivel

1шт.

20

861-8025

HEX SOC SCREW,M8 x 25mm, Cl 12.9

SCREW - hex socket, 8 - 1.25 x 25 mm, class 12.9

6шт.

Выбрано товаров: 20
