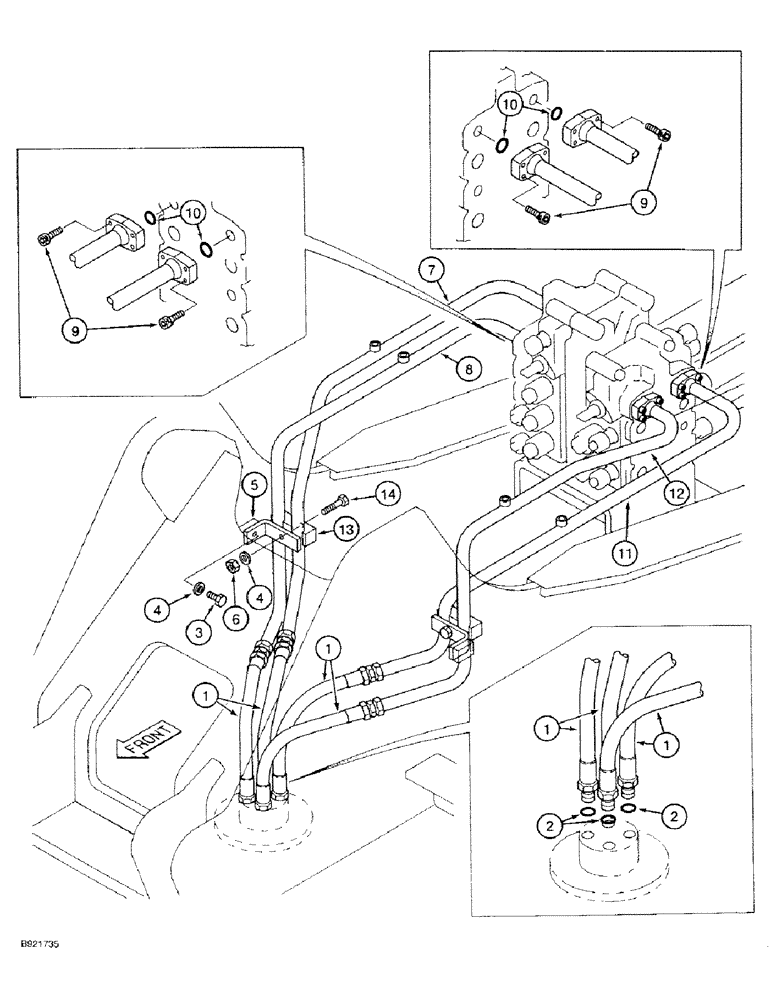

Запчасти Case 9030 (6-14) - TRACK DRIVE HYDRAULIC CIRCUIT, CONTROL VALVE TO HYDRAULIC SWIVEL (06) - POWER TRAIN

1

153404A1

HOSE ASSY.

HOSE - hydraulic, at swivel, Includes: Ref. 2

4шт.

2

154503A1

O-RING

-, Serial Range: hose-swivel

1шт.

3

626-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

- hex, 12 - 1.75 x 25 mm, class 10.9

2шт.

4

150988A1

WASHER

- special

4шт.

5

153475A1

BRACKET

- tube mounting

2шт.

6

829-1312

NUT,M12 x 1.75, Cl 10

- hex, 12 mm - 1.75, class 10

2шт.

7

153471A1

HYD TUBE

TUBE - hydraulic, upper RH rear valve, Serial Range: port-swivel

1шт.

8

153472A1

HYD TUBE

TUBE - hydraulic, upper RH front valve, Serial Range: port-swivel

1шт.

9

861-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

SCREW - socket head, 10 - 1.5 x 30 mm, class 12.9

16шт.

10

151099A1

O-RING

-, Serial Range: tube-valve

4шт.

11

153474A1

HYD TUBE

TUBE - hydraulic, upper LH rear valve, Serial Range: port-swivel

1шт.

12

153473A1

TUBE ASSY.

TUBE - hydraulic, upper LH front valve, Serial Range: port-swivel

1шт.

13

152085A1

COLLAR

CLAMP - tube

2шт.

14

828-12065

BOLT,Hex, M12 x 1.75 x 65mm, Cl 10.9

- hex, 12 - 1.75 x 65 mm, class 10.9

2шт.
