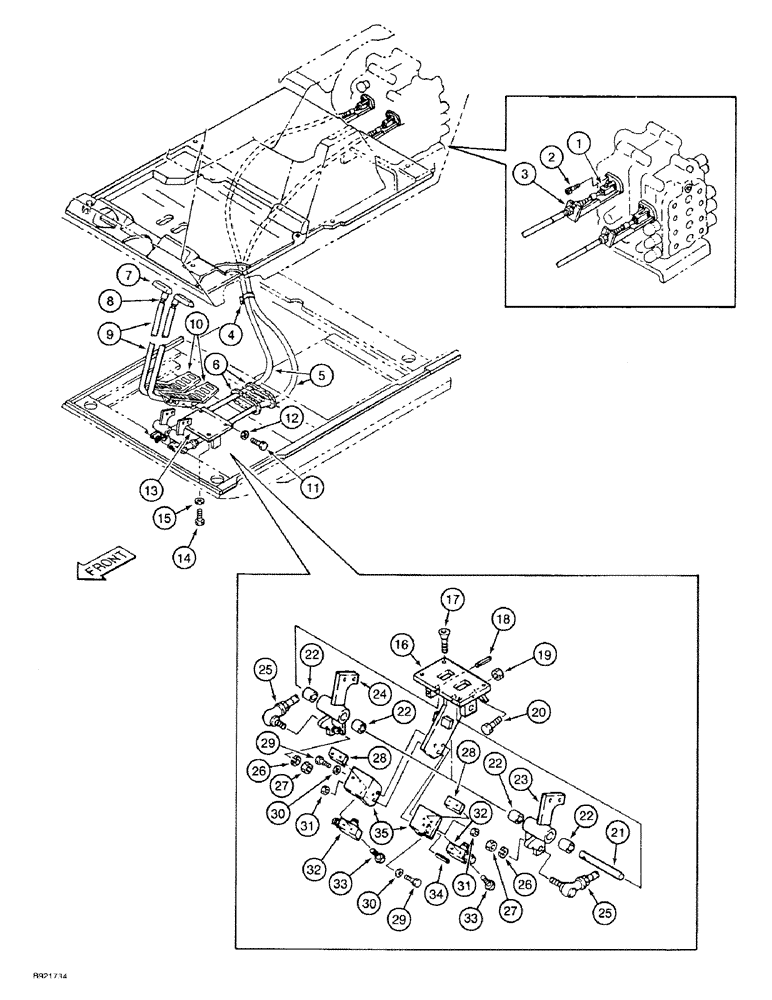

Запчасти Case 9030 (6-12) - TRACK DRIVE CONTROLS (06) - POWER TRAIN

1

153450A1

END

CLEVIS - cable end, at valve

2шт.

2

863-10025

HEX SOC SCREW,M10 x 25mm, Cl 12.9

SCREW, Hex Soc Hd, M10 x 25, 12.9

4шт.

3

153511A1

BRACKET

- cable support

2шт.

4

150071A1

MOUNTING CLIP

STRAP - tie

1шт.

5

153449A1

CABLE PULLING GRIP

CABLE - control, track drive

2шт.

6

152529A1

GROMMET

- rubber

2шт.

7

150347A1

KNOB

HANDLE - control, track drive

2шт.

8

150373A1

NUT

- hex, jam, special

2шт.

9

151634A1

LEVER

- hand control, track drive

2шт.

10

150524A1

PEDAL

- foot control, track drive

2шт.

11

150555A1

BOLT,High Strength, Hex, M10 x 30mm

BOLT - special, pedal mounting

8шт.

12

150604A1

WASHER

- special

10шт.

13

153555A1

BRACKET

- pedal mounting

1шт.

14

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, class 10.9

4шт.

15

150409A1

WASHER

- special

4шт.

16

153553A1

BRACKET

- linkage mounting

1шт.

17

150403A1

SCREW,Spcl, Flat Hd Csk, M10 x 20mm

BOLT - hex socket, special

4шт.

18

738-1632

LOCK PIN,M6 x 32, Slotted

PIN - roll, 6 x 32 mm

1шт.

19

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

4шт.

21

150516A1

PIN

SHAFT - cross, linkage

1шт.

22

150505A1

BEARING, NEEDLE

BEARING - needle, bellcrank

4шт.

23

153557A1

LINK ASSY.

BELLCRANK - track drive linkage, left hand

1шт.

24

153556A1

LINK ASSY.

BELLCRANK - track drive linkage, right hand

1шт.

25

151963A1

END

JOINT - ball, rod end

2шт.

26

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

27

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.

28

151150A1

BRACKET

SPACER - bracket

2шт.

29

827-6030

BOLT,Hex, M6 x 30mm, Cl 10.9

- hex, 6 - 1 x 30 mm, class 10.9

2шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

31

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

32

151143A1

SWITCH

- limit, Travel Alarm

2шт.

33

151147A1

SET SCREW

SCREW - set, special

4шт.

34

738-1316

LOCK PIN,M3 x 16, Slotted

PIN - roll, 3 x 16 mm

1шт.

35

153554A1

BRACKET

- switch mounting

2шт.

20

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.
