Запчасти Case 9030 (6-10) - 155808A1 TRACK DRIVE MOTOR, COVER AND VALVES (06) - POWER TRAIN

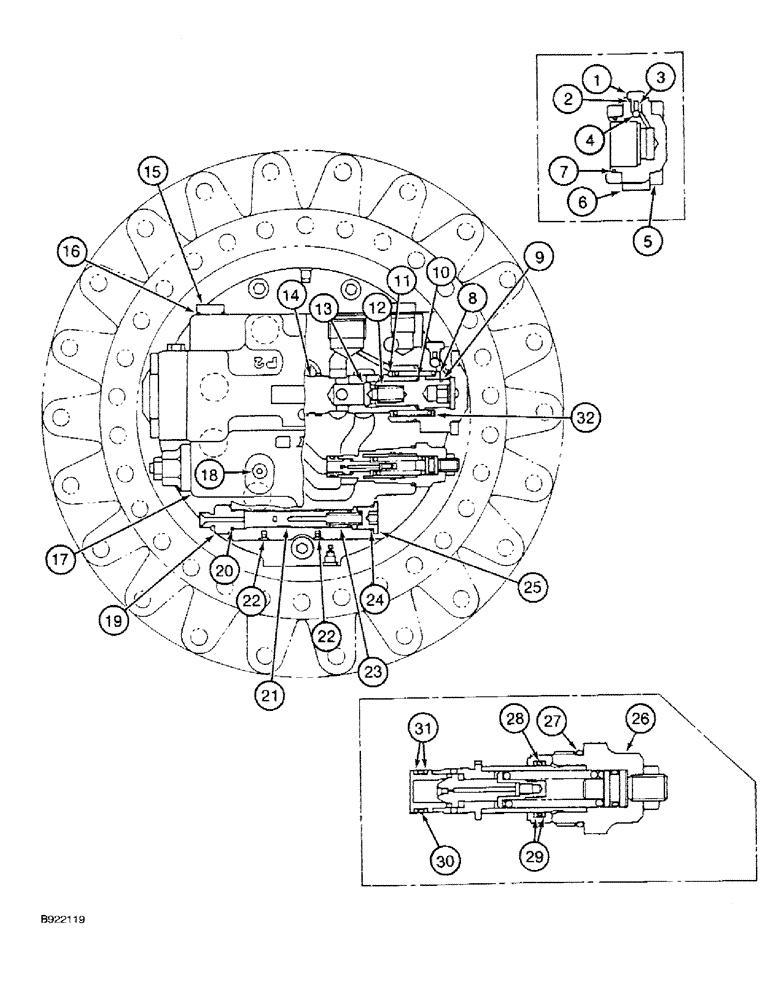

Схема запчастей Case 9030 - (6-10) - 155808A1 TRACK DRIVE MOTOR, COVER AND VALVES (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

155808A1

MOTOR

ASSEMBLY - track drive, includes parts on Figures 6-8 and 6-10, Includes: Ref. 1 - 32

2шт.

156324A1

CAP

ASSEMBLY - check valve, Includes: Ref. 1 - 7

2шт.

1

NSS

NOT SOLD SEPARAT

PLUG - valve cap

1шт.

2

154455A1

O-RING

- plug to valve cap

1шт.

3

NSS

NOT SOLD SEPARAT

SPRING - ball return

1шт.

4

NSS

NOT SOLD SEPARAT

BALL - steel, valve cap

1шт.

5

861-12040

HEX SOC SCREW,M12 x 40mm, Cl 12.9

SCREW - hex socket 12 - 1.75 x 40 mm, class 12.9

4шт.

6

156325A1

CAP

- check valve

1шт.

7

154589A1

O-RING

-, Serial Range: cap-cover

1шт.

8

156111A1

SPRING SEAT

SEAT - spring

2шт.

9

NSS

NOT SOLD SEPARAT

BODY - check valve

2шт.

10

NSS

NOT SOLD SEPARAT

O-RING - check valve body

2шт.

11

156110A1

SPRING SEAT

SEAT - spring, check valve, plunger end

2шт.

12

NSS

NOT SOLD SEPARAT

SPRING - check valve

1шт.

13

NSS

NOT SOLD SEPARAT

VALVE - check

2шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - check valve

1шт.

15

155483A1

PLUG

- port

2шт.

16

154487A1

O-RING

- port plug

2шт.

17

NSS

NOT SOLD SEPARAT

PLATE - valve base

1шт.

18

151026A1

PLUG

- port

2шт.

19

155482A1

FITTING

- 2-speed control

1шт.

20

154475A1

O-RING

- fitting

1шт.

21

155949A1

VALVE

SPOOL - 2-speed control valve

1шт.

22

NSS

NOT SOLD SEPARAT

PLUG - at 2-speed control valve

2шт.

23

156088A1

SPRING

- 2-speed control valve

1шт.

24

154487A1

O-RING

- plug

1шт.

25

155483A1

PLUG

- 2-speed control valve

1шт.

155791A1

SUN GEAR

VALVE ASSEMBLY - relief, track drive motor, Includes: Ref. 26 - 31

2шт.

26

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - relief valve, less seals and rings

1шт.

27

155225A1

O-RING

- relief valve, outer

1шт.

28

154495A1

O-RING

- relief valve, center

1шт.

29

153976A1

BACK-UP RING

RING - backup, relief valve center O-ring

6шт.

30

154478A1

O-RING

- relief valve, inner

1шт.

31

153964A1

BACK-UP RING

RING - backup, relief valve, inner O-ring

2шт.

32

156087A1

SPRING

- check valve

2шт.

Выбрано товаров: 35
