Запчасти Case 9030 (6-02) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR (06) - POWER TRAIN

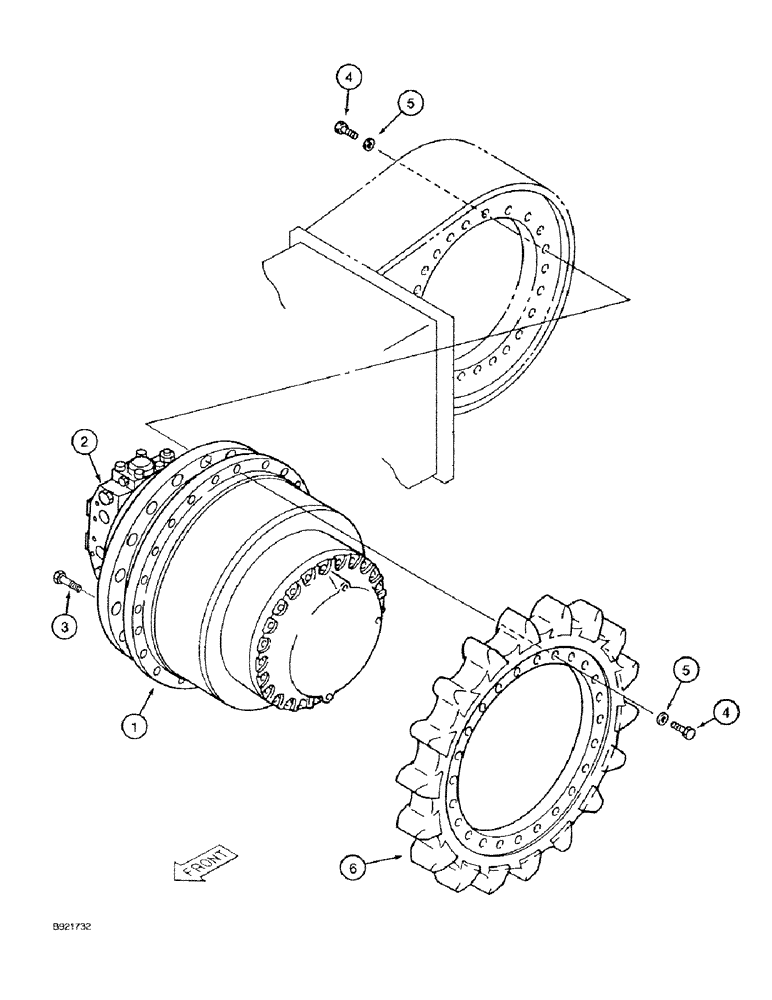

Схема запчастей Case 9030 - (6-02) - FINAL DRIVE TRANSMISSION AND TRACK DRIVE MOTOR (06) - POWER TRAIN

Артикул

Название

Примечание

Количество

152535A1

MOTOR

TRANSMISSION ASSEMBLY - with track drive motor, parts list Figures 6-4 - 6-10, Includes: Ref. 1 - 3

2шт.

1

155794A1

GEAR REDUCTION UNIT

TRANSMISSION ASSEMBLY - without track drive motor, parts list Figure 6-4 and 6-6

1шт.

2

155808A1

MOTOR

ASSEMBLY - track drive, parts list Figures 6-8 and 6-10

1шт.

3

863-12080

HEX SOC SCREW,M12 x 80mm, Cl 12.9

BOLT - hex socket, 12 - 1.75 x 80 mm

3шт.

4

828-16055

BOLT,Hex, M16 x 2 x 55mm, Cl 10.9

104шт.

5

150991A1

WASHER

- special

104шт.

6

152717A1

SPROCKET ASSY.

SPROCKET - track drive

2шт.

Выбрано товаров: 7
