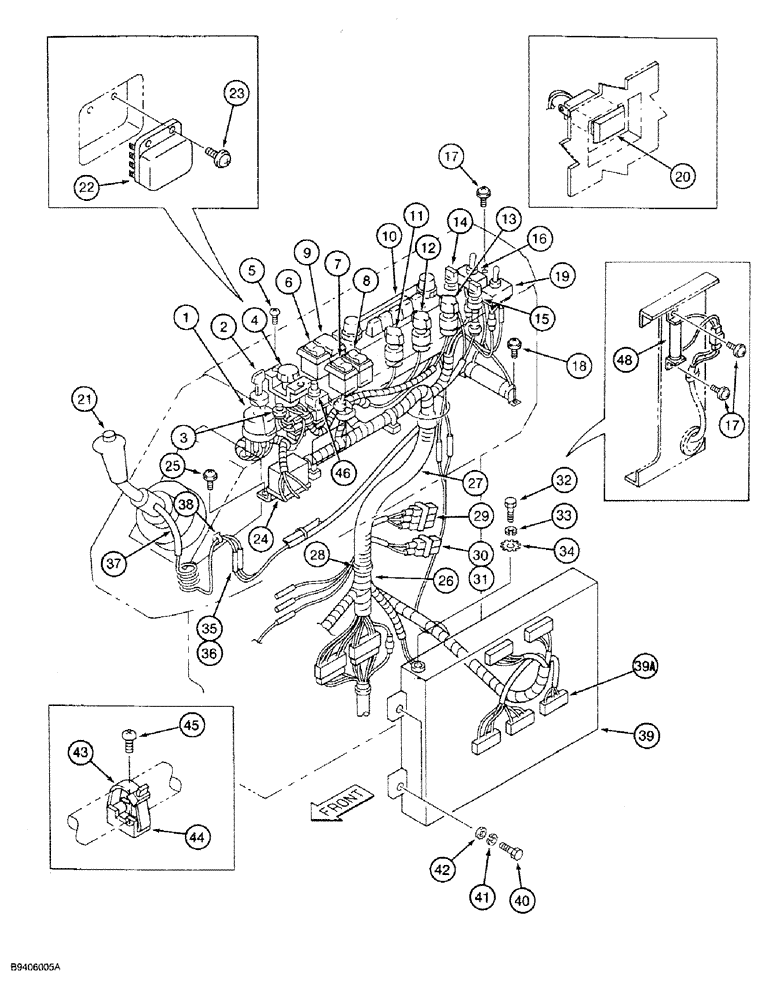

Запчасти Case 9030 (4-14) - RIGHT HAND CONSOLE AND HARNESS (04) - ELECTRICAL SYSTEMS

150973A1

SWITCH

ASSEMBLY - ignition, Includes: Ref. 1 and 2

1шт.

1

150981A1

ASSEMBLY

SWITCH - ignition

1шт.

2

150979A1

IGNITION KEY

KEY - ignition switch

2шт.

(150979A1 KEY) COMES AS A SET OF 2 KEYS. IF YOU ORDER 1 PC YOU WILL GET A SET OF 2.

1шт.

3

150788A1

SWITCH

- push button

1шт.

4

151573A1

SWITCH

- engine throttle

1шт.

5

150875A1

SCREW,Phil Truss Hd, M4 x 12mm

- special, switch mounting

2шт.

6

152496A1

SWITCH

- rocker, cushion control

1шт.

7

152132A1

SWITCH

- rocker, attachment control

1шт.

8

152187A1

SWITCH

- rocker, travel alarm

1шт.

9

151728A1

CAP

COVER - switch location

1шт.

10

159339A1

RADIO

- 24 volt, AM / FM

1шт.

11

152672A1

SWITCH

- rotary, windshield wiper and washer

1шт.

12

150640A1

SWITCH

- rotary, lamp, Knob for switch is NSS

1шт.

13

151848A1

SWITCH

- rotary, heater fan, Knob for switch is NSS

1шт.

14

151858A1

SWITCH

- rotary, hydraulic mode selection, Knob for switch is NSS

1шт.

15

151853A1

SWITCH

- rotary, deceleration

1шт.

16

151843A1

SWITCH

- backup bypass

1шт.

17

151668A1

SCREW,Phil Pan Hd, M3 x 8mm, W/ Wshr

- special, pan head

6шт.

18

151677A1

SCREW,Phil Pan Hd, M4 x 8mm, W/ Wshr

- special, pan head

2шт.

Screw goes thru resistor---this resistor is nss, must order Ref. 19 switch to get resistor.

1шт.

19

150646A1

SWITCH

- toggle, manual throttle

1шт.

20

152677A1

SWITCH

- rocker, free swing

1шт.

21

151616A1

KNOB

- control, right hand controller

1шт.

NO PRINT - PER RACINE BIN CHECK THIS IS A CONTROLLER HANDLE WITH A SOFT VINYL/RUBBER COATING. HAS A THUMB CONTROL UNDERNEATH THE COVERING ON TOP END. OPPOSITE END IS THREADED AND HAS A COUPLE WIRES COMING OUT OF IT.

1шт.

22

150793A1

BOX, FUSE

BOX - fuse, see operators manual 9-23800 Figure 108 for fuse identification and ratings

1шт.

PER 9030 OPS MANUAL, FUSE BOX CONTAINS 3 10 AMP FUSES AND 5 15 AMP FUSES. FUSES ARE STD GLASS TUBE TYPE PER RICK CERMAK

1шт.

23

152102A1

CAPTIVE WASHER SCREW,Phil Pan Hd, M6 x 20mm

SCREW - special, pan head

2шт.

24

150806A1

RELAY

- horn

1шт.

25

152099A1

CAPTIVE WASHER SCREW,Phil Pan Hd, M6 x 12mm

- pan head

1шт.

26

152490A1

HARNESS

- wire, right hand console

1шт.

27

150440A1

PLASTIC-RUBBER TUBE

GUARD - harness

1шт.

28

150067A1

MOUNTING CLIP

STRAP - tie

1шт.

29

150369A1

DIODE

- right hand console harness

2-3шт.

30

150949A1

RESISTOR

- right hand console harness

1-2шт.

31

150952A1

CONDENSER

- right hand console harness

2шт.

32

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, class 10.9

1шт.

33

892-11010

LOCK WASHER,M10

1шт.

34

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

35

150089A1

TERMINAL CONNECTOR

CONNECTOR - electrical

1шт.

36

150094A1

TERMINAL CONNECTOR

CONNECTOR - electrical

1шт.

37

151031A1

TUBE,3.6 mm ID, 200 mm Length

GUARD - wire protection

1шт.

38

150563A1

CLIP

- wire

1шт.

39

158832A1

CONTROL

LER - electrical system, Includes: Ref. 39A

1шт.

39a

158833A1

PRINTED CIRCUIT BOAR

MICROPROCESSOR - ROM (read only memory)

1шт.

40

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, 8-1.25 x 16, class 10.9

4шт.

41

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

42

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

43

150496A1

MOUNTING CLIP

CLAMP - band, harness

2шт.

44

150860A1

COLLAR

BRACKET - clamp

2шт.

45

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- fillister, clamp bracket mounting

2шт.

46

153059A1

SWITCH

- push button, cold start

1шт.

48

158778A1

RESISTOR

- harness, if used

1шт.
