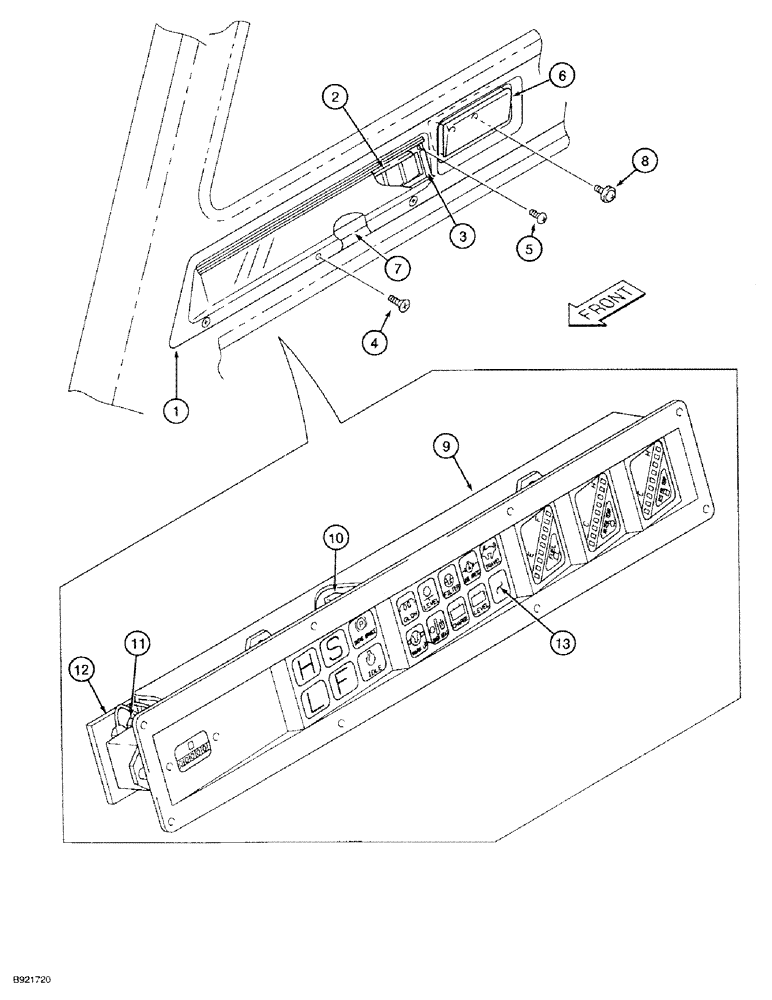

Запчасти Case 9030 (4-12) - INSTRUMENT CLUSTER AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

152486A1

PANEL ASSY.

COVER - instument panel, dust

1шт.

152386A1

SEAL

KIT - cover seal, Includes: Ref. 2 and 3

1шт.

2

152499A1

SEAL

- cushion, horizontal

2шт.

3

152502A1

SEAL

- cushion, vertical

2шт.

4

150818A1

SCREW,Spcl, Oval Hd Csk, M4 x 12mm

- special, cover mounting

4шт.

5

150875A1

SCREW,Phil Truss Hd, M4 x 12mm

- special, cluster mounting

8шт.

6

151946A1

ASH TRAY

ASHTRAY - cab

1шт.

7

151549A1

PLASTIC-RUBBER TUBE

GUARD - tube

1шт.

8

151688A1

SCREW,Phil Pan Hd, M5 x 12mm, W/ Wshr

- pan head, ashtray mounting

2шт.

152464A1

CONTROL

CLUSTER ASSEMBLY - instrument, Includes: Ref. 9 - 13

1шт.

9

151714A1

BOARD, PRINTED CIRCU

CLUSTER - instrument

1шт.

10

150755A1

LAMP

- instrument cluster

18шт.

11

152805A1

HOURMETER

- electric

1шт.

12

150764A1

PLATE

- backing, instrument cluster

1шт.

13

153084A1

CAP

COVER - gauge hole

1шт.
