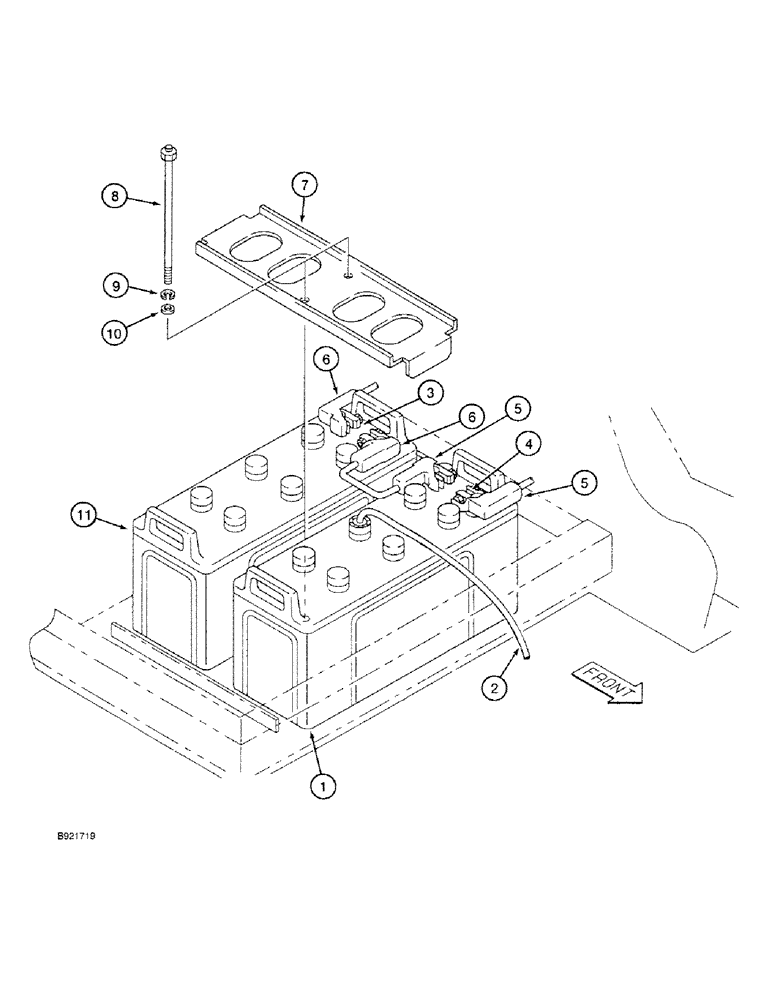

Запчасти Case 9030 (4-10) - BATTERIES AND MOUNTING (04) - ELECTRICAL SYSTEMS

150797A1

BATTERY

ASSEMBLY - 12 volt, with low fluid level sensor, Includes: Ref. 1 and 2

1шт.

1

151893A1

BATTERY, WET

BATTERY - 12 volt, without low fluid level sensor

1шт.

2

150099A1

SENSOR

- low electrolyte

1шт.

3

150450A1

CLAMP

- terminal, battery

2шт.

4

150455A1

TERMINAL CONNECTOR

CLAMP - terminal, battery

2шт.

5

150360A1

CAP

COVER - terminal

2шт.

6

150364A1

CAP

COVER - terminal

2шт.

7

150810A1

SPECIAL RING

HOLDER - battery

1шт.

8

151710A1

BOLT,Spcl, M10 x 210mm

BOLT - special, battery holder

2шт.

9

892-11010

LOCK WASHER,M10

2шт.

10

150409A1

WASHER

- special

2шт.

11

151893A1

BATTERY, WET

BATTERY - 12 volt, without low fluid level sensor

1шт.
