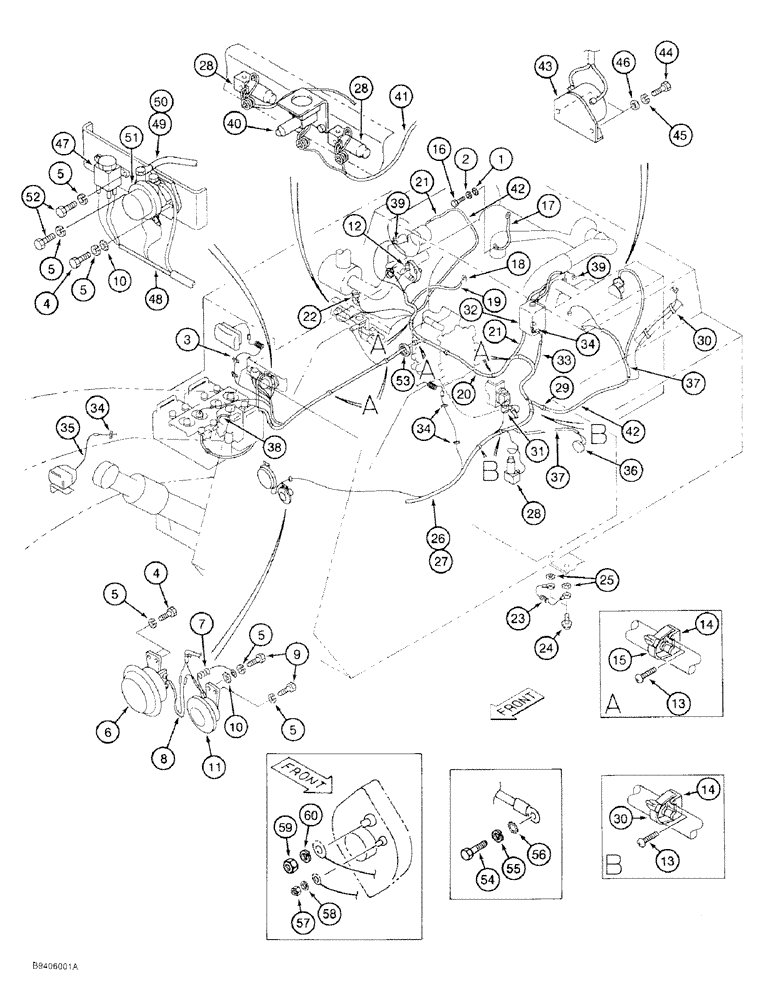

Запчасти Case 9030 (4-06) - MAIN ELECTRICAL WIRING, BATTERIES AND CABLES (04) - ELECTRICAL SYSTEMS

1

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

1шт.

2

892-11010

LOCK WASHER,M10

1шт.

3

150712A1

CLIP

- wire support

1шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

6

151739A1

HORN

- electrical

1шт.

7

150061A1

HARNESS

WIRE - ground, horn

1шт.

8

150698A1

HARNESS

WIRE - horn

1шт.

9

627-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

- hex, 8-1.25 x 16, class 10.9

2шт.

10

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

2шт.

11

152169A1

HORN

- electrical

1шт.

12

150912A1

SWITCH

- hydraulic oil pressure

1шт.

13

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- fillister, clamp bracket mounting

10шт.

14

150860A1

COLLAR

BRACKET - clamp

10шт.

15

150496A1

MOUNTING CLIP

CLAMP - harness

1шт.

16

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, class 10.9

1шт.

17

152481A1

HARNESS

WIRE - ground

1шт.

18

152485A1

NEG BATTERY CABLE

CABLE - battery

1шт.

19

150412A1

TUBE,13 mm ID, 17.5 mm OD, 2300 mm Length

GUARD - cable

1шт.

20

150408A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 2000 mm Length

GUARD - harness

1шт.

21

152660A1

PLASTIC-RUBBER TUBE

GUARD - harness

1шт.

22

157163A1

SENSOR

SWITCH - air restriction indicator was 150675A1

1шт.

23

150246A1

HARNESS

WIRE - ground

1шт.

24

152102A1

CAPTIVE WASHER SCREW,Phil Pan Hd, M6 x 20mm

SCREW - special, pan head

2шт.

25

893-11006

LOCK WASHER,Ext Tooth, M6

WASHER - external tooth lock, 6 mm

2шт.

26

152477A1

HARNESS

- main electical

1шт.

27

150782A1

PLASTIC-RUBBER TUBE

GUARD - harness

1шт.

28

150844A1

VALVE

- solenoid

3шт.

29

150067A1

MOUNTING CLIP

STRAP - tie

1шт.

30

150071A1

MOUNTING CLIP

STRAP - tie

1шт.

31

153470A1

VALVE

- solenoid

1шт.

32

150032A1

LIMIT SWITCH

SWITCH - limit

1шт.

33

150236A1

TUBE

GUARD - harness

1шт.

34

150563A1

CLIP

- wire

1шт.

35

150819A1

HARNESS

WIRE - work lamp, on boom

1шт.

36

152111A1

SENSOR

SENDER - fuel level

1шт.

37

150251A1

TUBE

GUARD - harness

1шт.

38

150738A1

NEG BATTERY CABLE

CABLE - battery

1шт.

39

150974A1

SENSOR

SENDER - temperature, hydraulic

1шт.

40

150425A1

VALVE

- solenoid

1шт.

41

150243A1

TUBE

GUARD - harness

1шт.

42

152368A1

TUBE

GUARD - harness

2шт.

43

151829A1

ALARM

- backup

1шт.

44

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm, class 10.9

2шт.

45

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

46

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

47

150070A1

RELAY

- safety

1шт.

48

150390A1

TUBE,13 mm ID, 17.5 mm OD, 400 mm Length

GUARD - harness

1шт.

49

152488A1

NEG BATTERY CABLE

CABLE - battery

1шт.

50

150406A1

PLASTIC-RUBBER TUBE,13 mm ID, 17.5 mm OD, 1500 mm Length

GUARD - cable

1шт.

51

150663A1

RELAY

- battery

1шт.

52

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, 8 - 1.25 x 20 mm, class 10.9

3шт.

53

152529A1

GROMMET

- rubber

1шт.

54

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

1шт.

55

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

1шт.

56

30574R1

LOCK WASHER,Ext Tooth, M12

WASHER - external tooth lock, 12 mm

1шт.

57

825-1405

NUT,M5, Cl 8

1шт.

58

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

1шт.

59

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

60

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

3шт.
