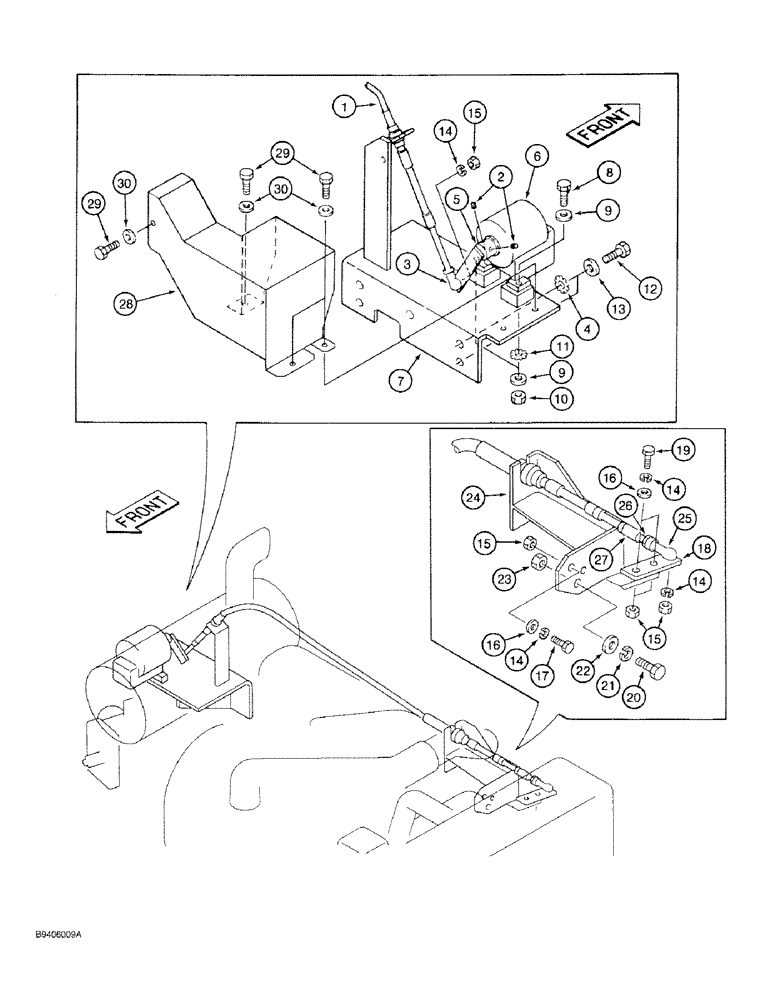

Запчасти Case 9030 (3-06) - THROTTLE AND FUEL SHUTOFF CONTROLS (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
152414A1
CABLE PULLING GRIP
CABLE - throttle control
1шт.
2
878-10812
SET SCREW,Hex Skt, M8 x 12mm, Cup Pt
SCREW - set, hex socket, 8 - 1.25 x 12 mm, cup point
2шт.
3
150054A1
BALL JOINT
JOINT - ball, throttle cable
1шт.
4
30574R1
LOCK WASHER,Ext Tooth, M12
WASHER - external tooth lock, 12 mm
1шт.
5
152408A1
LEVER
- throttle control, at motor
1шт.
6
152920A1
MOTOR
- throttle
1шт.
152920A1R
REMAN-ELECTRIC MOTOR
9030 (11/92-)
1шт.
152920A1C
CORE-ELECTRIC MOTOR
Return Number
1шт.
7
157441A1
BRACKET
- mounting, throttle motor (Replaces 158343A1)
1шт.
9
150594A1
WASHER
WASHER - special
4шт.
10
829-1410
NUT,M10 x 1.5, Cl 10.9
2шт.
11
893-11010
LOCK WASHER,Ext Tooth, M10
WASHER, LOCK, Ext Tooth, M10
1шт.
12
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
- hex, 12 - 1.75 x 30 mm, class 10.9
5шт.
13
150811A1
WASHER
- flat, 12 mm
5шт.
14
892-11006
LOCK WASHER,M6
WASHER, LOCK, M6
6шт.
15
829-1406
NUT,Hex, M6 x 1, Cl 10.9
6шт.
16
895-11006
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
4шт.
17
627-6025
BOLT,Hex, M6 x 1 x 25mm, Cl 10.9, Full Thd
- hex, 6 - 1 x 25 mm, class 10.9
2шт.
18
152410A1
CONTROL LEVER
LEVER - throttle control
1шт.
19
627-6020
BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd
- hex, full threads, 6 - 1.0 x 20 mm, class 10.9
2шт.
21
892-11008
LOCK WASHER,8mm ID
WASHER, LOCK, M8
1шт.
22
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
1шт.
23
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
- hex, 8 mm - 1.25, class 10
1шт.
24
152404A1
BRACKET
- throttle cable support
1шт.
25
150045A1
BALL JOINT
JOINT - ball
1шт.
26
829-1406
NUT,Hex, M6 x 1, Cl 10.9
1шт.
27
151363A1
THREADED ROD
ROD - throttle
1шт.
28
157442A1
COVER
- throttle motor
1шт.
29
627-8012
BOLT,Hex, M8 x 1.25 x 12mm, Cl 10.9, Full Thd
- hex, full threads, 8 - 1.25 x 12 mm, class 10.9
4шт.
30
153081A1
WASHER
- special
4шт.
20
627-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd
1шт.
Выбрано товаров: 32
