Запчасти Case 9030 (3-04) - FUEL LINES (03) - FUEL SYSTEM

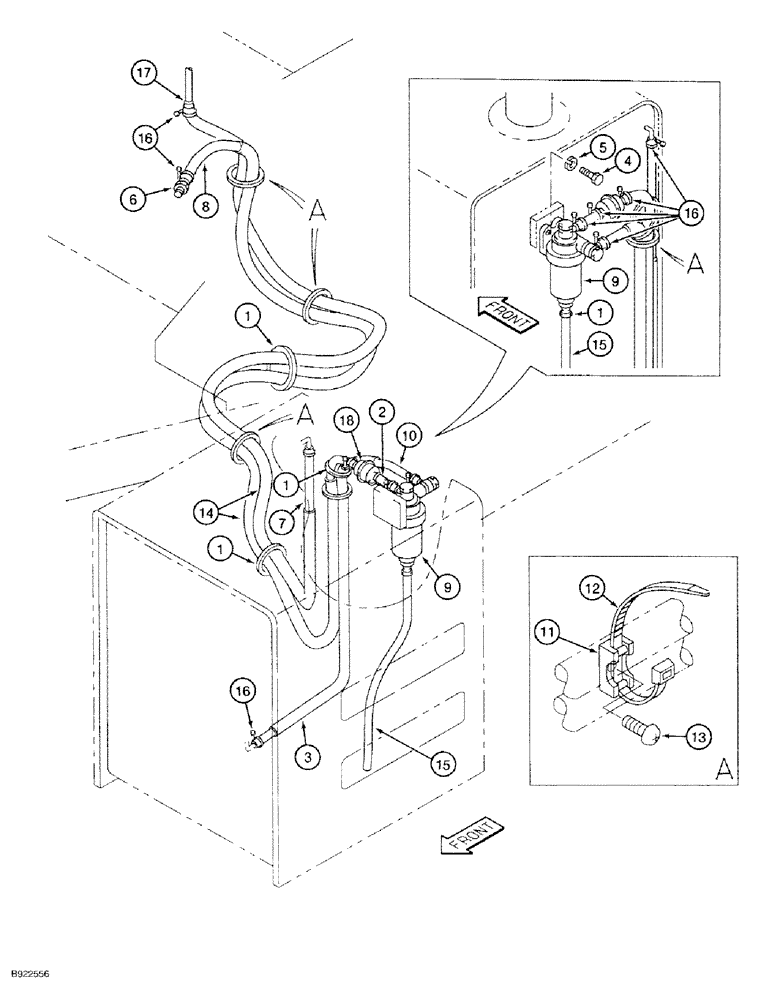

Схема запчастей Case 9030 - (3-04) - FUEL LINES (03) - FUEL SYSTEM

Артикул

Название

Примечание

Количество

1

150067A1

MOUNTING CLIP

STRAP - tie

4шт.

2

152371A1

PLASTIC-RUBBER TUBE

TUBE - fuel supply, at separator to primer pump

1шт.

3

150773A1

PLASTIC-RUBBER TUBE

GUARD - tube, fuel, Serial Range: tank-separator

1шт.

4

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, 8 - 1.25 x 20 mm, class 10.9

2шт.

5

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

6

151659A1

NIPPLE, LUBE

ADAPTER - straight, fuel line, at primer pump

1шт.

7

150410A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.5 mm OD, 2800 mm Length

TUBE - fuel return, from injector lines

1шт.

8

150306A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.5 mm OD, 2900 mm Length

TUBE - fuel supply, separator to primer pump

1шт.

9

151071A1

WATER TRAP

SEPARATOR - water from fuel

1шт.

Components are servicedseparately. See 9020 book 3-16 or quality comments

1шт.

10

150239A1

PLASTIC-RUBBER TUBE,9.50mm ID, 14.70mm OD

TUBE - fuel tank to separator

1шт.

11

150860A1

COLLAR

BRACKET - clamp

4шт.

12

150496A1

MOUNTING CLIP

CLAMP - tube

5шт.

13

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

- fillister, clamp bracket mounting

4шт.

14

150782A1

PLASTIC-RUBBER TUBE

GUARD - tube, fuel, Serial Range: tank-engine

2шт.

15

150340A1

PLASTIC-RUBBER TUBE,9.5 mm ID, 14.5 mm OD, 500 mm Length

TUBE - drain, fuel line separator

1шт.

16

153043A1

COLLAR

CLAMP - tube

8шт.

17

152374A1

SPACER

- fuel return tube at injector

1шт.

18

D139225

FILTER, FUEL

FILTER - fuel, in-line (Replaces D145357)

1шт.

Выбрано товаров: 19
