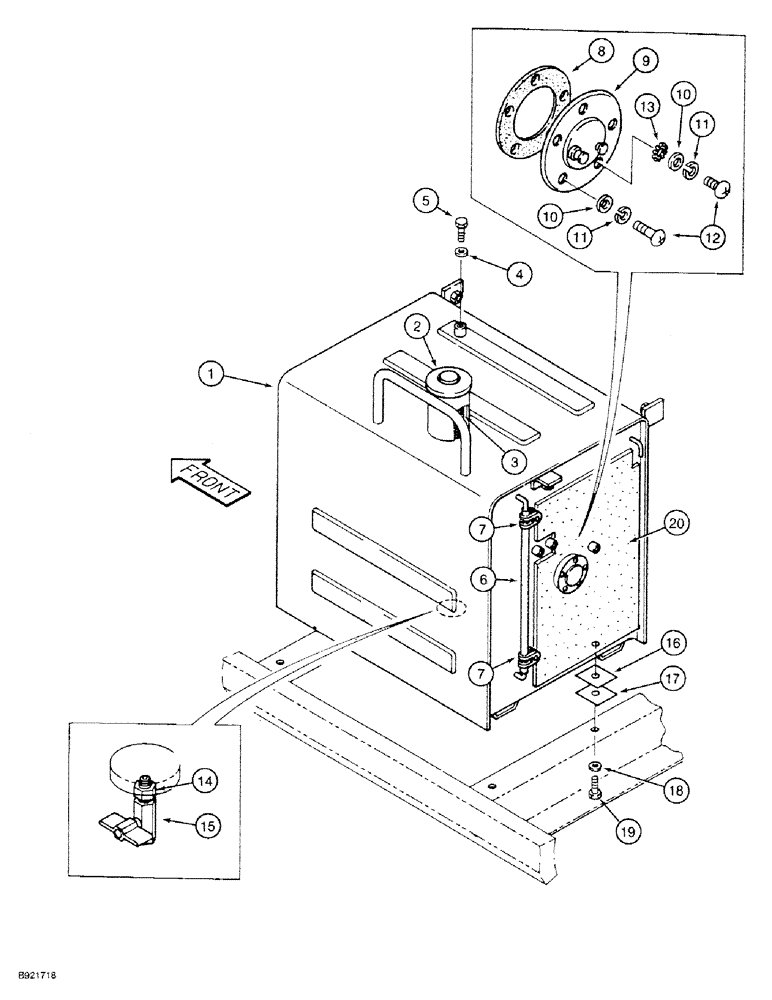

Запчасти Case 9030 (3-02) - FUEL TANK (03) - FUEL SYSTEM

1

151845A1

FUEL TANK

TANK - fuel

1шт.

Filler neck for fuel tank = 1506051.

1шт.

2

150492A1

LOCKABLE FUEL CAP

CAP - fuel tank

1шт.

3

150146A1

FILTER

- fuel tank

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

5

627-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 10.9, Full Thd

- hex, full threads, 12 - 1.75 x 20 mm, class 10.9

1шт.

6

150158A1

PLASTIC-RUBBER TUBE

GAUGE - sight, fuel tank

1шт.

7

150162A1

CLAMP

- tube

2шт.

8

152591A1

GASKET,2mm Thk

- fuel level sender

1шт.

9

152111A1

SENSOR

SENDER - fuel level

1шт.

152111A1 is actually the sender not shown in picture includes that cover

1шт.

10

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

5шт.

11

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

5шт.

12

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

- fillister, 5 - .8 x 12 mm

5шт.

13

30659R1

LOCK WASHER,Ext Tooth, M5

WASHER - external tooth lock, 5 mm

1шт.

14

150847A1

HYD CONNECTOR

CONNECTER - straight, fuel tank to drain valve

1шт.

15

158923A1

DRAIN VALVE

VALVE - fuel tank drain, was 153290A1 or 157802A1

1шт.

16

150166A1

SHIM

PLATE - shim, fuel tank

1шт.

17

150479A1

SHIM

PLATE - shim, fuel tank

1шт.

18

150991A1

WASHER

- special

4шт.

19

628-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

4шт.

20

152926A1

INSULATOR

PAD - insulation, if used

1шт.
