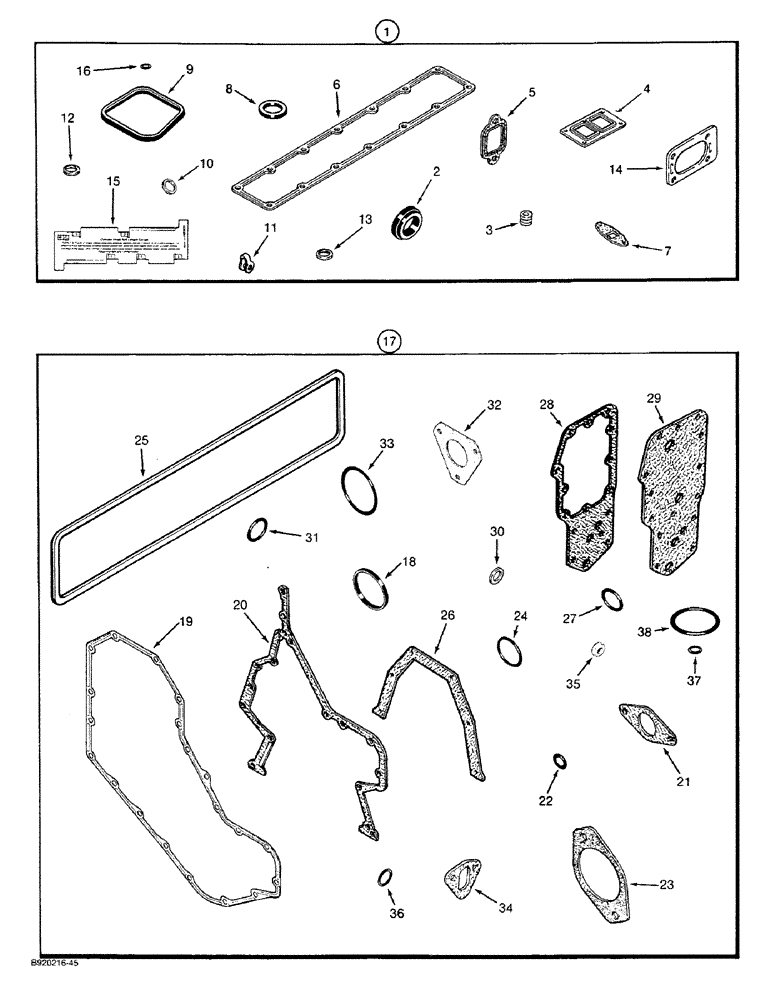

Запчасти Case 9030 (2-44) - ENGINE GASKET KITS, 6T-590 ENGINE (02) - ENGINE

1

A77793

GASKET KIT

KIT - gasket, valve grind, Includes: Ref. 1 - 16

1шт.

When the valve grind gasket kit is used, also order the required cylinder head gasket on Figure 2-26.

1шт.

2

J923331

GASKET

- thermostat housing

1шт.

3

J901097

SEAL

- intake and exhaust valves

12шт.

4

J901356

GASKET,0.5mm Thk

-, Serial Range: turbocharger-manifold

1шт.

5

J905443

MANIFOLD GASKET

- exhaust manifold

6шт.

6

J914029

GASKET

- intake manifold cover

1шт.

7

J914388

GASKET

- oil drain tube

1шт.

8

J902363

O-RING,30mm ID x 48mm OD x 3mm Thk

- oil fill cap, not used this application

1шт.

9

J902666

GASKET

SEAL - rocker arm cover

6шт.

10

J900808

SEAL

- 9 mm injector tip, not used in this application

6шт.

11

J903380

SEAL

- connector, fuel drain manifold tube

6шт.

12

J906659

SEAL

- 7 mm, fuel injector tip

6шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

O-RING - fuel injector body

6шт.

14

J914856

GASKET,1.02mm Thk

- air crossover connection, not used in this application

1шт.

15

J823921

GAUGE

- bolt length, cylinder head

1шт.

16

J282133

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- rocker arm cover bolt, replaces J910824 O-ring

6шт.

17

A77674

GASKET KIT

KIT - engine block, cylinder, Includes: Ref. 18 - 38

1шт.

For complete engine overhaul, order 1 each of valve grind kit, cylinder block kit, oil pan kit, Figure 2-24, front and rear crankshaft seal kit, Figure 2-38 and required cylinder head gasket, Figure 2-26.

1шт.

18

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

- front access cover, cylinder block

1шт.

19

J914385

GASKET,1.02mm Thk

- front gear cover to housing, cylinder block

1шт.

20

J916131

GASKET

- timing gear housing, cylinder block

1шт.

21

J905595

GASKET

- timing pin housing, not used in this application, cylinder block

1шт.

22

J913994

O-RING

- sealing, timing pin, cylinder block

1шт.

23

J919601

GASKET

- accessory drive cover plate, cylinder block

1шт.

24

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

Water pump to block, cylinder -341, 70 Duro, 3.475" ID x .210" Thk

1шт.

25

J907617

GASKET

- tappet cover, cylinder block

1шт.

26

J914386

GASKET

- seal retainer, crankshaft, cylinder block

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID, water inlet connection, cylinder block

1шт.

28

J918256

GASKET

- cooler core, oil, cylinder block

1шт.

29

J918257

GASKET

- filter head, cylinder block

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

- seal, plug, oil pan, cylinder block

1шт.

31

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - engine oil filler, not used in this application, cylinder block

1шт.

32

J914389

GASKET

- fuel injection pump mounting, cylinder block

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel housing to block, cylinder

1шт.

34

J914304

GASKET

- fuel lift pump, cylinder block

1шт.

35

J900267

SEAL

- tappet cover bolt, cylinder block

6шт.

36

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

Not used in this application, cylinder block -212, 70 Duro, .859" ID x .139" Thk

1шт.

37

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - fuel filter stud, 14 mm ID, cylinder block

1шт.

38

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - fuel filter head, 70 mm ID, cylinder block

1шт.
