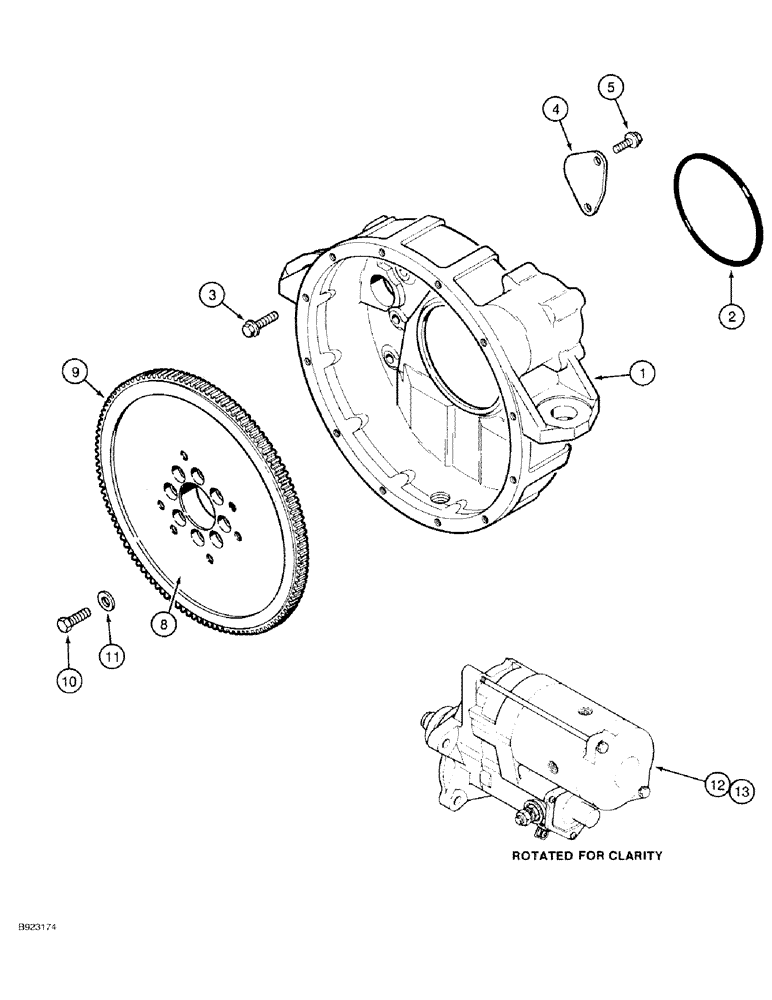

Запчасти Case 9030 (2-40) - FLYWHEEL AND HOUSING, 6T-590 ENGINE (02) - ENGINE

1

J903282

HOUSING

HOUSING - flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING O-RING - flywheel, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

BOLT - heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

8шт.

4

J908095

PLATE

PLATE - cover

1шт.

5

J902735

BOLT,M8 - 1.25 x 21 mm

BOLT - hex, plate retaining

2шт.

8

J907466

FLYWHEEL

FLYWHEEL ASSEMBLY - engine, Includes: Ref. 9

1шт.

9

J905427

GEAR

GEAR - ring, flywheel

1шт.

10

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, M12 x 32

8шт.

11

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

WASHER - flat, flywheel bolt

8шт.

12

1987566C1

STARTER MOTOR,24V, 5.5kW

STARTER ASSEMBLY - engine, parts list Figure 4-04

1шт.

12

1987566C1R

REMAN-STARTER,24V, 5.5kW

Reman For New PN 1987566C1

1шт.

12

1987566C1C

CORE-STARTER,24V, 5.5kW

Return Number

1шт.

12

1987566C1GV

STARTER MOTOR,24V, 5.5kW

Value

1шт.

13

J903834

12 PT SCREW,M10 x 1.5 x 35mm, Cl 10.9

BOLT - 12 point, starter to flywheel housing

3шт.
