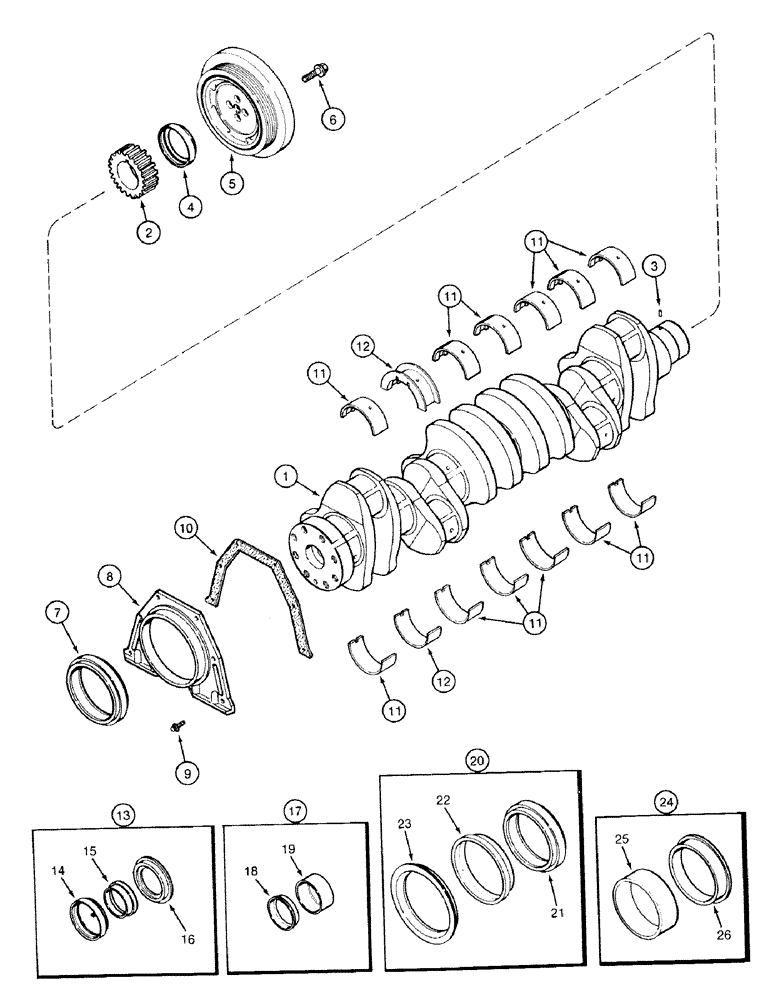

Запчасти Case 9030 (2-38) - CRANKSHAFT, 6T-590 ENGINE (02) - ENGINE

JR918324

CRANKCASE

CRANKSHAFT ASSEMBLY - engine, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 2 and 3

1шт.

The crankshaft remanufacture program is not available at this time, order J918324 crankshaft assembly.

1шт.

JC918324

CRANK

RETURN NUMBER - use this part number to return crankshaft for credit when using a remanufactured assembly, Includes: Ref. 2 and 3

1шт.

The crankshaft remanufacture program is not available at this time, order J918324 crankshaft assembly.

1шт.

1

J918324

CRANKSHAFT

ASSEMBLY - engine, new, Includes: Ref. 2 and 3

1шт.

2

J919681

PINION

GEAR - crankshaft

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

- dowel

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft front, order item 13 kit

1шт.

5

NLS

NO LONGER SERVICED

PULLEY - crankshaft dampener

1шт.

6

J903857

BOLT,Hex, M12 x 1.25 x 36mm

- hex flange, special

4шт.

7

NSS

NOT SOLD SEPARAT

SEAL - oil, crankshaft rear, order item 20 kit

1шт.

8

J921043

REAR COVER

RETAINER - rear seal

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J914386

GASKET

- seal retainer

1шт.

11

A77405

CRANKSHAFT BEARING

BEARING - main, standard, upper and lower set

6шт.

11

A77472

BEARING SET

BEARING - main, 0.25 mm undersize, upper and lower set

6шт.

11

A77474

BEARING SET

BEARING - main, 0.50 mm undersize, upper and lower set

6шт.

11

A77476

BEARING SET

BEARING - main, 0.75 mm undersize, upper and lower set

6шт.

11

A77478

BEARING SET

BEARING - main, 1.00 mm undersize, upper and lower set

6шт.

12

A77406

CRANKSHAFT BEARING

BEARING - main thrust, standard, upper and lower set

1шт.

12

A77473

THRUST BEARING

BEARING - main thrust, 0.25 mm undersize, upper and lower set

1шт.

12

A77475

THRUST BEARING

BEARING - main thrust, 0.50 mm undersize, upper and lower set

1шт.

12

A77477

THRUST BEARING

BEARING - main thrust, 0.75 mm undersize, upper and lower set

1шт.

12

A77479

THRUST BEARING

BEARING - main thrust, 1.00 mm undersize, upper and lower set

1шт.

13

J904353

GASKET KIT

KIT - oil seal, crankshaft front, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL - oil, front

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

17

J906080

PACKAGE, REPAIR

KIT - wear sleeve, crankshaft front, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

19

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

20

A77809

GASKET KIT

KIT - oil seal, crankshaft rear, replaces J909410 kit, Includes: Ref. 21 - 23; Tool No Longer Included in Kit, Available from OTC

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

22

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

23

NSS

NOT SOLD SEPARAT

TOOL - installation

1шт.

24

A77810

SERVICE KIT

KIT - wear sleeve, crankshaft rear, replaces J906081 kit, Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

26

NSS

NOT SOLD SEPARAT

SEAL

1шт.
