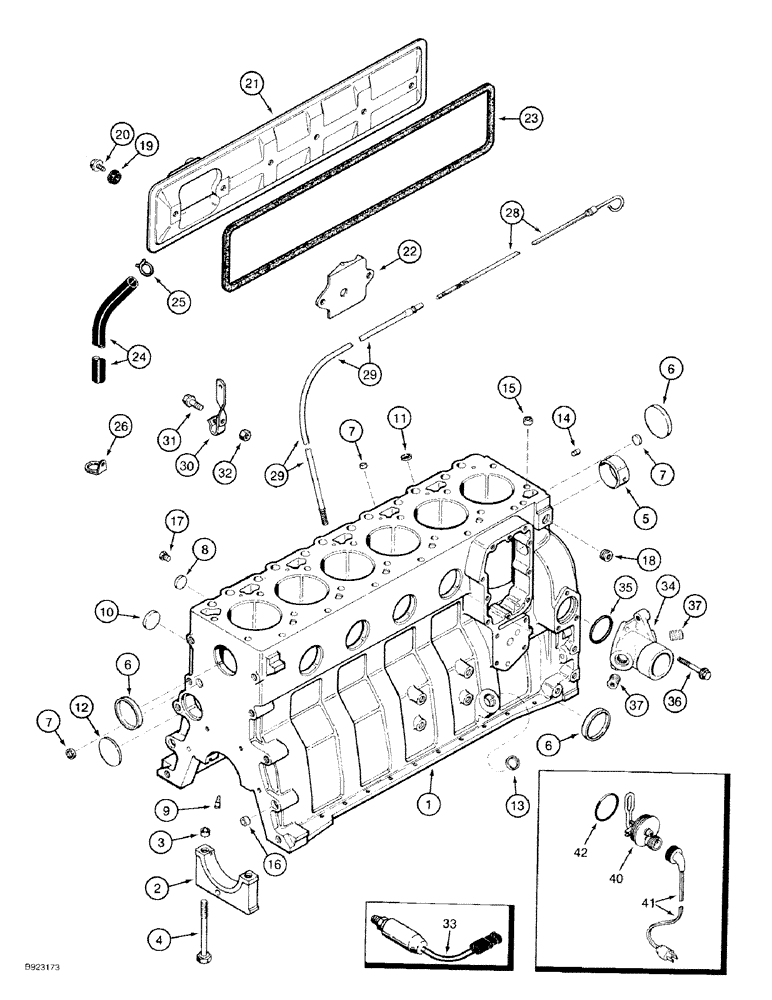

Запчасти Case 9030 (2-32) - CYLINDER BLOCK, 6T-590 ENGINE (02) - ENGINE

1989158C1

ENGINE ASSEMBLY

ENGINE ASSY ENGINE ASSEMBLY - 6T-590 standard, complete, includes all parts except fan, air cleaner, muffler and exhaust pipe, for service order 1989096C2 basic engine, below

1шт.

1989189C1R

REMAN-REPLACEMENT EN

Remanufactured, For N.A. Only

1шт.

6T-590C

CORE-REPLACEMENT ENG

Return Number, Complete, For N.A. Only

1шт.

1989096C2R

ENGINE, EXCHANGE

ENGINE (EXCHANGE) ENGINE ASSEMBLY - remanufactured, For North America only, component parts shown on this page do not apply to the remanufactured assembly

1шт.

1989096C2C

CORE-ENGINE

RETURN NUMBER - use this number to return core for credit when using a remanufactured assembly

1шт.

1989096C2

BASIC ENGINE

ASSEMBLY - basic, Includesallpartsexceptstarter,alternator, fan, belt, bracket, air cleaner, muffler, exhaust manifold&pipe, flywheel&housing, oil fill tube, dipstick, fuel injection pump, injectors&lines, front crank pulley, belt tensioner&turbocharger

1шт.

AR77762

ENGINE

BLOCK ASSEMBLY - short, engine, remanufactured, For North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 8

1шт.

AC77762

CORE-ENGINE

RETURN NUMBER - use this part number to return short block core for credit when using a remanufactured assembly, Includes: Ref. 1 - 8

1шт.

J920392

SKELETON ENGINE

BLOCK ASSEMBLY - short, engine, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 - 8

1шт.

Order J920399 hardware kit when ordering J920392 block assembly or J916255 stripped block.

1шт.

J933183

SKELETON ENGINE

Engine Short Block - Tier 0

1шт.

JR933183

REMAN-SHORT ENGINE

Remanufactured, For N.A. Only

1шт.

JC933183

CORE-SHORT ENGINE

Return Number, For N.A.Only

1шт.

1

J916255

CYLINDER BLOCK

BLOCK ASSEMBLY - stripped, engine, Includes: Ref. 2 - 8

1шт.

Order J920399 hardware kit when ordering J920392 block assembly or J916255 stripped block.

1шт.

2

J900967

BEARING CAP

CAP - main bearing

7шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm OD

14шт.

4

J904217

BOLT,Hex, M14 x 2 x 119mm, Cl 12.9

BOLT - main bearing cap to block, special

14шт.

5

REF

INSTRUCTION

BUSHING - camshaft, front, see Figure 2-30, Ref. 2

1шт.

6

A77782

PLUG

PLUG - expansion, 58 mm OD

6шт.

7

J900956

PLUG

PLUG - expansion, 18 mm OD

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

PLUG, , Expansion Cup, 1", Stainless

4шт.

J920399

PACKAGE, REPAIR

KIT - block hardware, Includes: Ref. 9 - 18

1шт.

Order J920399 hardware kit when ordering J920392 block assembly or J916255 stripped block.

1шт.

9

J919002

NOZZLE CAP

NOZZLE - piston cooling

6шт.

10

J900958

PLUG

PLUG - expansion, 32 mm OD

1шт.

11

J900955

PLUG

PLUG - expansion, 10 mm OD

2шт.

12

172599

PLUG,Exp, 2 3/8"

PLUG - expansion, Welch, 60 mm OD

1шт.

13

A77439

PLUG

PLUG - expansion, 22 mm OD, not used in this application, Ref. 15, Figure 2-18, J903744 turbocharger oil drain tube is installed in this port

1шт.

14

J900257

PIN,10.01mm OD x 16mm L

PIN - dowel, locating, 16 mm

2шт.

15

J902343

DOWEL

RING - dowel, 16 mm OD

2шт.

16

J900068

BEARING WASHER

RING - dowel, 18 mm OD

2шт.

17

J906619

PLUG,1/8" - 27

PLUG - hex, 1/8 inch PT, (1) not used in this application, Ref. 33, Figure 2-34, 1546461C1 engine oil pressure switch is installed in this oil port

2шт.

18

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

1шт.

19

J900267

SEAL

SEAL - cover bolt

4шт.

20

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm, Incl: Ref. 21 - 42

4шт.

21

J911822

COVER

COVER - tappet

1шт.

22

J907586

BAFFLE

BAFFLE - tappet cover

1шт.

23

J907617

GASKET

GASKET - tappet cover

1шт.

24

J918614

TUBE,435.00 mm

HOSE - engine breather, 18.5 ID x 435 mm, if used

1шт.

24

121904A1

HOSE

HOSE - engine breather, 18.5 ID x 1030 mm, if used

1шт.

25

J904230

CLAMP,25.4mm

CLAMP - spring hose

1шт.

26

J909670

CLIP

CLIP - retaining

1шт.

28

J907712

DIPSTICK

DIPSTICK - engine oil

1шт.

29

J279238

TUBE

TUBE - oil dipstick, replaces J922886 tube

1шт.

30

J905804

BRACKET

BRACE - tube

1шт.

31

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

1шт.

32

825-1408

NUT,M8, Cl 8

Nut, , Dipstick tube to brace M8, Cl 8

1шт.

33

1546461C1

SWITCH

SWITCH - engine oil pressure, installed in the No. 1 oil port on the injection pump side of engine

1шт.

34

J916625

CONNECTING BLOCK

CONNECTION - water inlet

1шт.

35

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

36

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

BOLT - heavy hex flange, 10 - 1.5 x 75 mm, class 10.9

3шт.

37

A77429

PLUG

PLUG - hex socket, 1/2 inch PT

2шт.

A77634

KIT

KIT - engine block heater, Includes: Ref. 40 - 42

1шт.

40

NSS

NOT SOLD SEPARAT

HEATER - engine block

1шт.

41

J905113

CABLE

CABLE - engine block heater

1шт.

42

J910517

O-RING

O-RING - heater sealing, engine block

1шт.
