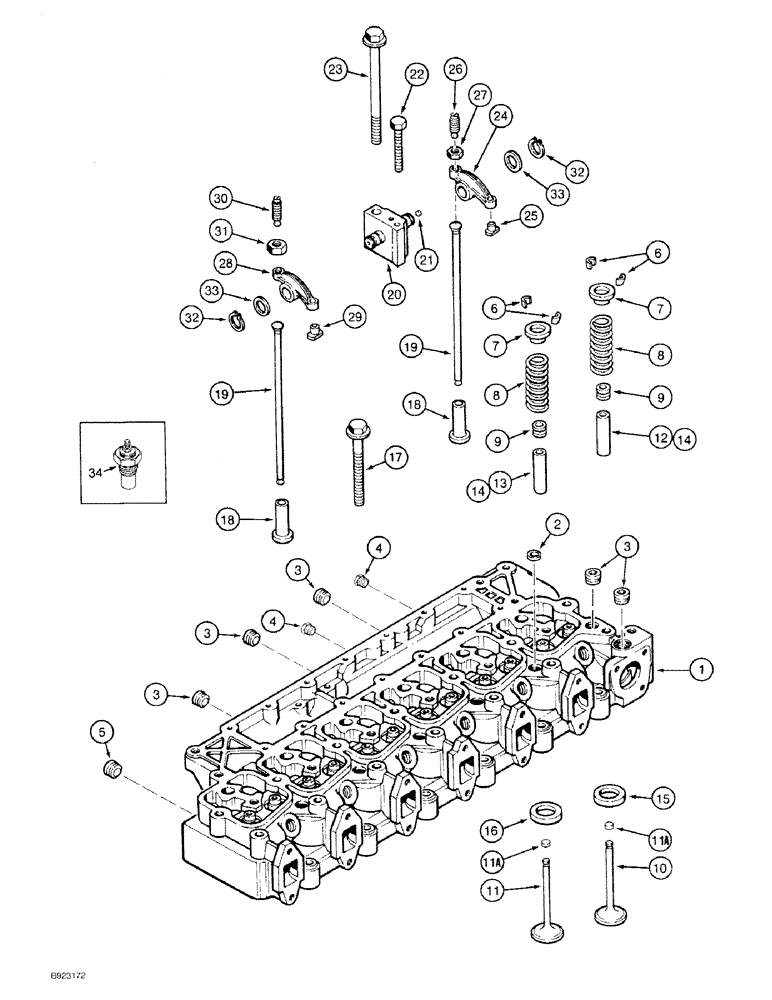

Запчасти Case 9030 (2-28) - CYLINDER HEAD AND VALVE MECHANISM, 6T-590 ENGINE (02) - ENGINE

JR920612

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 11

1шт.

JC920612

REMAN-CYLINDER HEAD

RETURN NUMBER - use this number to return cylinder head for credit when using a remanufactured assembly, Includes: Ref. 1 - 11

1шт.

J920612

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, with valves, Includes: Ref. 1 - 11

1шт.

1

J917287

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, without valves, Includes: Ref. 2

1шт.

2

A77783

PLUG

- expansion, 21 mm OD

5шт.

3

A77429

PLUG

- hex socket, 1/2 inch PT (one removed to install temperature sending unit, Ref. 34)

5шт.

4

J906619

PLUG,1/8" - 27

- hex, 1/8 inch PT

2шт.

5

A77505

PLUG

- hex socket, 3/4 inch PT

1шт.

6

J900250

SCREW

KEEPER - valve

24шт.

7

J900299

RETAINER

- valve spring

12шт.

8

J900276

VALVE SPRING

SPRING - valve

12шт.

9

J901097

SEAL

- valve

12шт.

10

J920867

VALVE

- intake

6шт.

11

J920868

VALVE

- exhaust

6шт.

11a

J280911

WEAR PAD

PAD - wear, service repair only for valve stem tip

6шт.

12

J904408

GUIDE

- valve, intake 14 mm OD, service repair only

6шт.

These parts are semi-finished valve guides.

1шт.

13

J904409

GUIDE

- valve, exhaust 14 mm OD, service repair only

6шт.

These parts are semi-finished valve guides.

1шт.

14

J906206

GUIDE

- valve, intake and exhaust, 11 mm OD, service repair only

12шт.

These parts are semi-finished valve guides.

1шт.

15

J906854

SEAT, VALVE

SEAT - insert, intake valve, service repair only

6шт.

16

J904105

SEAT, VALVE

SEAT - insert, exhaust valve, service repair only

6шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

BOLT, SPECIAL - cylinder head, 70 mm long

6шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

- cylinder head, 120 mm long

6шт.

18

J925031

TAPPET

- valve, push rod, replaces J907240 tappet

12шт.

19

J923262

PUSH ROD

ROD - push, rocker arm

12шт.

20

J910814

SUPPORT

AND SHAFT ASSEMBLY - rocker arm, Includes: Ref. 21

6шт.

21

J907555

PLUG

- rocker arm shaft, 1/4-18 PT

1шт.

22

814-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

23

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

BOLT, SPECIAL - hex flange, rocker arm and cylinder head

6шт.

24

J910811

ROCKER

ARM ASSEMBLY - rocker, intake, Includes: Ref. 25 - 27

6шт.

25

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

26

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

27

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

28

J910810

ROCKER

ARM ASSEMBLY - rocker, exhaust, Includes: Ref. 29 - 31

6шт.

29

NSS

NOT SOLD SEPARAT

INSERT - arm

1шт.

30

J937438

ADJUSTMENT SCREW,Hex Skt, 3/8" - 24 x 33mm, Adj, Ball Point

SCREW - slotted set, adjusting, special

1шт.

31

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

32

J900242

SNAP RING

RING - retaining, rocker arm

12шт.

33

J900245

WASHER

- thrust, rocker arm

12шт.

34

1983238C1

SENSOR,1/2" - 14

SWITCH - coolant temperature, installed front side of cylinder head behind fuel lines

1шт.
