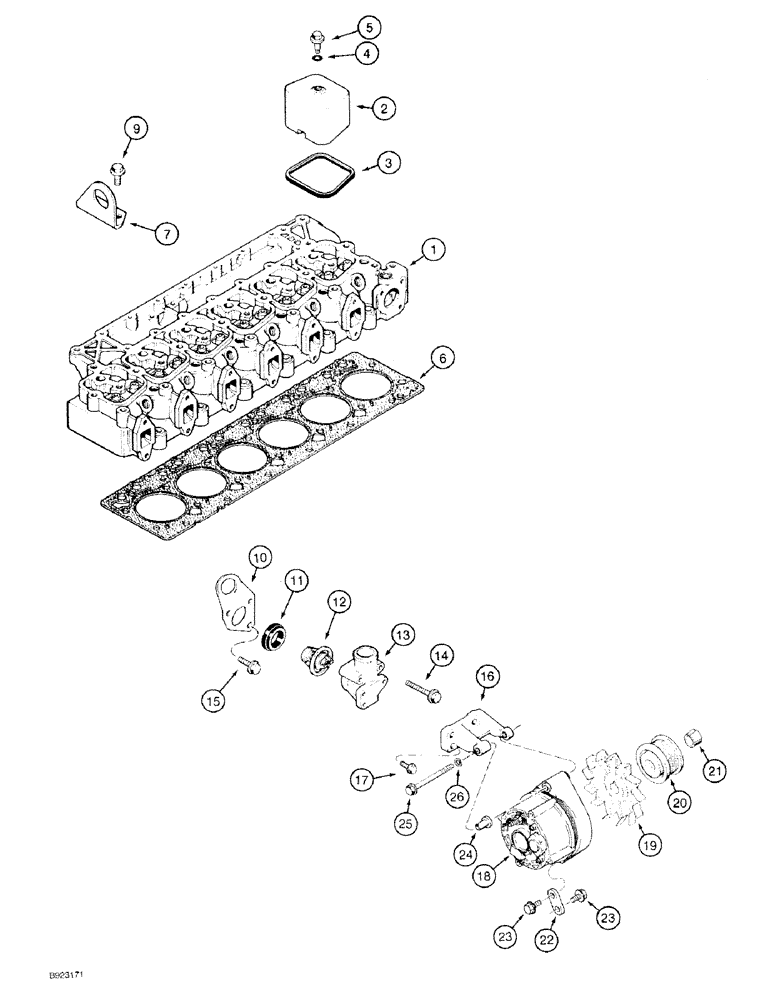

Запчасти Case 9030 (2-26) - CYLINDER HEAD COVER, 6T-590 ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see Figure 2-28 for correct cylinder head and parts list

1шт.

2

J902604

COVER

- rocker arm

6шт.

3

J902666

GASKET

SEAL - rocker arm cover

6шт.

4

J282133

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

- cover bolt, replaces J910824 O-ring

6шт.

5

J907049

BOLT,Hex

- hex flange, special

6шт.

6

J921394

GASKET

- cylinder head, standard

1шт.

6

J921396

CYLINDER HEAD GASKET

- cylinder head, 0.25 mm overthick (2 Notches)

1шт.

6

J921398

GASKET

- cylinder head, 0.50 mm overthick (3 Notches)

1шт.

7

J908118

BRACKET

- lifting, rear

1шт.

9

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

10

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

A77736

THERMOSTAT

KIT - water thermostat, housing, Includes: Ref. 11 and 12

1шт.

11

J923331

GASKET

-thermostat housing

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT - water, housing

1шт.

13

J914409

HOUSING

- thermostat

1шт.

14

845-8070

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 70 mm, Thermostat and housing

2шт.

15

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat and housing

1шт.

16

J910713

SUPPORT

- alternator mounting, thermostat and housing

1шт.

17

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

3шт.

18

A187916

ALTERNATOR,24V, 45A

ASSEMBLY - engine, parts list Figure 4-2, thermostat and housing

1шт.

19

221425R1

FAN

- alternator, thermostat and housing

1шт.

20

J908560

PULLEY

- drive, thermostat and housing

1шт.

21

J908563

RETAINER

- pulley, thermostat and housing

1шт.

22

J903089

SUPPORT

BRACE - alternator mouting, thermostat and housing

1шт.

23

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 20 mm, Thermostat and housing

2шт.

24

J910715

SPACER

- alternator mounting, thermostat and housing

1шт.

25

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm, Thermostat and housing

1шт.

26

892-11010

LOCK WASHER,M10

Thermostat and housing M10

1шт.
