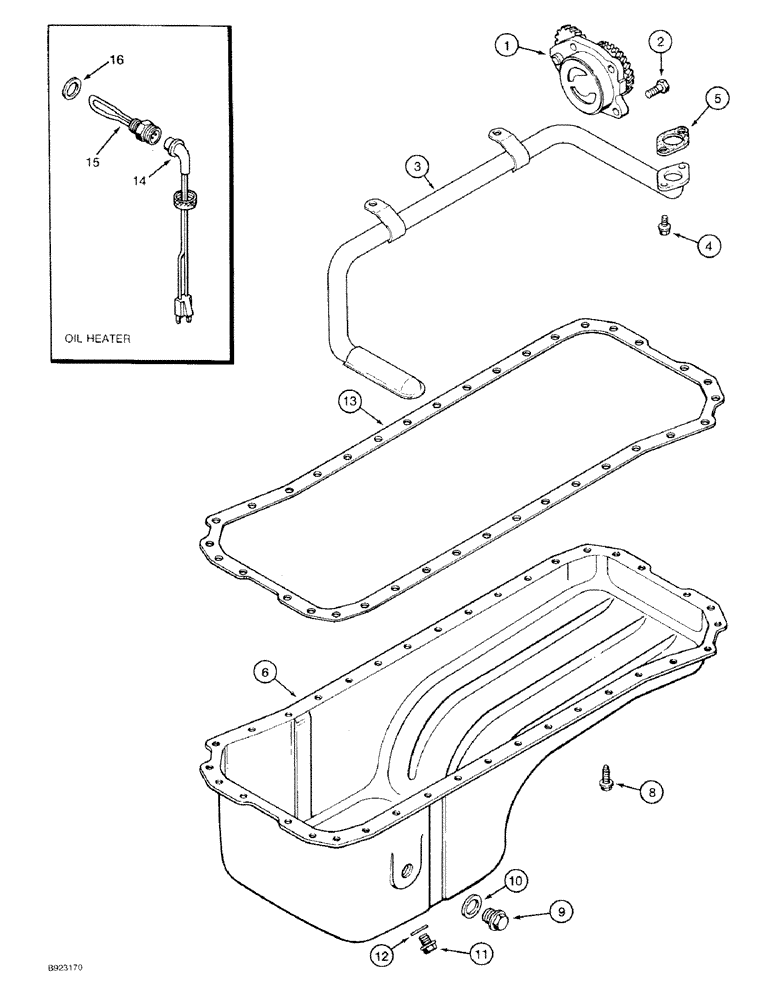

Запчасти Case 9030 (2-24) - OIL PUMP AND OIL PAN, 6T-590 ENGINE, ENGINE OIL HEATER (02) - ENGINE

1

J926203

PUMP, ENGINE OIL

PUMP - oil, engine, new, replaces J924720 pump

1шт.

JR926203

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP PUMP - oil, remanufactured, North America only, replaces JR924720 remanufactured pump

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly, replaces JC924720 return number

1шт.

JR941742

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

JC926203

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT - HH, CL 8.8, M8 x 1.25 x 30

4шт.

3

J921992

TUBE,25.4 mm OD x 359, 234 mm L

TUBE - with screen, oil suction

1шт.

4

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

4шт.

5

J914383

GASKET

GASKET - mounting, tube

1шт.

Part of Oil Pan Gasket Kit P/N A77676

1шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

8

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

SCREW - hex flange, special, M8 x 25

36шт.

9

J924148

PLUG,M22 x 1.5

PLUG - pipe, heater hole, 18 mm, replaces J904386 plug

1шт.

10

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - seal, plug

1шт.

11

J924147

PLUG,M18 x 1.5

PLUG - drain, oil, magnetic, replaces J911638 plug

1шт.

12

J920773

SEALING WASHER

WASHER - seal, drain plug

1шт.

Part of Oil Pan Gasket Kit P/N A77676

1шт.

13

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order A77676 kit shown below

1шт.

Part of Oil Pan Gasket Kit P/N A77676

1шт.

A77676

GASKET KIT

KIT - gasket, oil pan, Includes: Ref. 5, 12 and 13

1шт.

A77490

KIT

KIT - heater, engine oil, Includes: Ref. 14 and 15

1шт.

When A77490 kit is ordered, Ref.16, J902425 washer must also be ordered.

1шт.

14

J905113

CABLE

CABLE - engine block heater, oil

1шт.

15

NSS

NOT SOLD SEPARAT

ELEMENT - heater, engine oil

1шт.

16

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, engine oil heater

1шт.

When A77490 kit is ordered, Ref.16, J902425 washer must also be ordered.

1шт.
