Запчасти Case 9030 (2-18) - TURBOCHARGER SYSTEM, 6T-590 ENGINE (02) - ENGINE

1

J919113

TURBOCHARGER

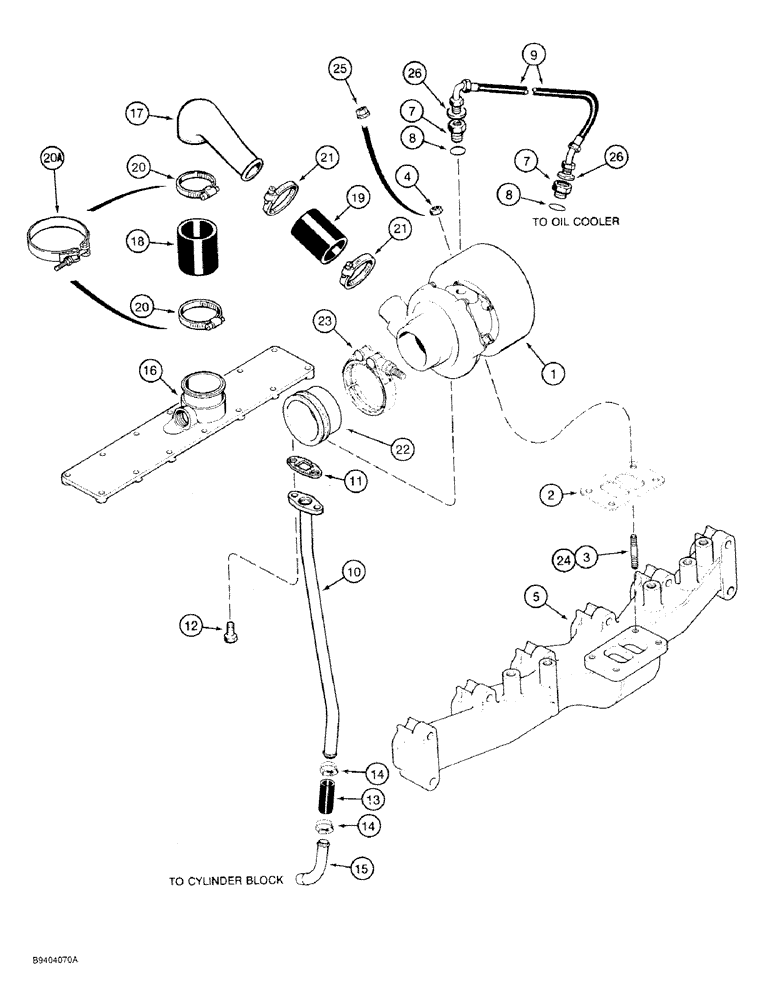

TURBOCHARGER ASSEMBLY - engine, parts list Figure 2-20

1шт.

1

JR802289

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

JC528741

CORE-TURBOCHARGER

Return Part Number

1шт.

2

J901356

GASKET,0.5mm Thk

GASKET -, Serial Range: turbocharger-manifold

1шт.

3

J905417

STUD

STUD - turbocharger mounting, no longer used, replace with Refs. 24 and 25, J818823 stud and J818824 nut

4шт.

4

J901961

NUT

NUT - hex, turbocharger mounting, no longer used, replace with Refs. 24 and 25, J818823 stud and J818824 nut

4шт.

5

J902347

MANIFOLD

MANIFOLD - exhaust, see Figure 2-16 for mounting parts

1шт.

7

J919687

HYD CONNECTOR

ADAPTER - female hex, 12 mm straight thread, Includes: Ref. 8

2шт.

8

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

O-RING, -013, 70 Duro, .426" ID x .070" Thk

1шт.

9

J909547

HOSE,457.00 mm

Oil Supply, Turbocharger

1шт.

10

J918583

TUBE

TUBE - oil drain

1шт.

11

J914388

GASKET

GASKET - oil drain tube

1шт.

12

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 20 mm

2шт.

13

J903745

LARGE HOSE

HOSE,LARGE HOSE - turbocharger oil drain

1шт.

14

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj., Turbocharger drain hose #16, 0.81/1.50 Type F Worm

2шт.

15

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE - turbocharger oil drain

1шт.

16

J904862

COVER

COVER - intake manifold, see Figure 2-16 for mounting parts

1шт.

17

J906972

AIR INTAKE TUBE,53.8 - 66.5 mm OD x 198.1, 79.6 mm L

TUBE - air intake

1шт.

18

J916529

TRANSMISSION SLEEVE

HOSE - air intake tube to manifold cover

1шт.

19

J916166

INTAKE AIR HOSE

HOSE - turbocharger to air intake tube

1шт.

20

214-1440

HOSE CLAMP,#40, 2.06" - 3", Type F Worm

CLAMP - adj, 2-1/16 - 3 inch, hose retaining, no longer used, order Ref. 20A J924386 clamp

2шт.

20a

J924386

COLLAR CLAMP

CLAMP - adj, hose retaining, replaces J923580 clamp

2шт.

21

214-1528

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm, W/ Liner

CLAMP - adj, 1-5/16 - 2-1/4 inch, hose retaining, replaces 214-258 clamp

2шт.

22

J910990

TUBE,64 mm ID x 72.64 mm OD x 40.50 mm L

TUBE - exhaust outlet, turbocharger to exhaust pipe

1шт.

23

A170467

CLAMP,72mm ID

CLAMP - exhaust tube retaining

1шт.

24

J818823

STUD

STUD - turbocharger mounting, must use with Ref. 25

4шт.

25

J818824

FLANGE NUT

NUT - hex, turbocharger mounting, must use with Ref. 24

4шт.

26

222-993

GASKET,3/8 Tube, Fl, Copper

GASKET, 3/8 Tube, Fl, Copper

2шт.
