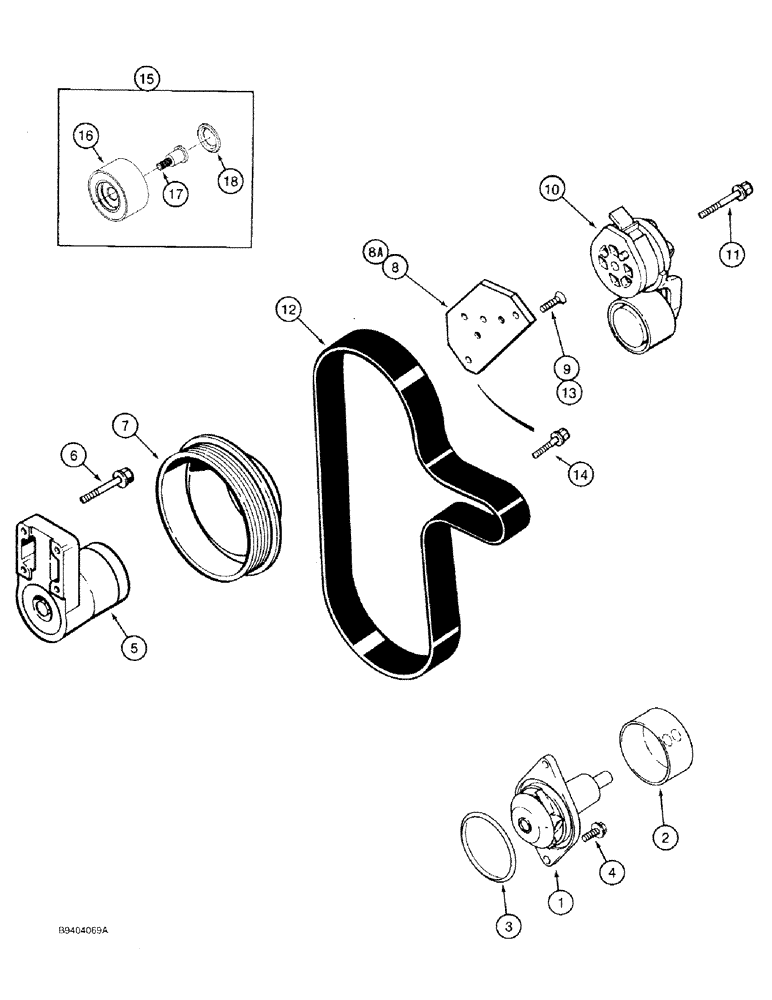

Запчасти Case 9030 (2-12) - WATER PUMP SYSTEM, 6T-590 ENGINE (02) - ENGINE

AR77703

PUMP

- water, remanufactured, component parts shown on this Figure do not apply to the remanufactured assembly

1шт.

The water pump remanufacture program is not available at this time, order A77703 water pump kit.

1шт.

AC77703

CORE-WATER PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

The water pump remanufacture program is not available at this time, order A77703 water pump kit.

1шт.

A77703

PUMP, WATER

KIT - water pump, Includes: Ref. 1 - 3

1шт.

A77703GV

WATER PUMP

Value, Water Pump Assy.

1шт.

J286278R

REMAN-WATER PUMP

9030

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - pump

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J913433

BRACKET

- fan

1шт.

6

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 40 mm, 8.8

4шт.

7

J914462

PULLEY,163mm OD

- fan, 60 mm bolt circle (1.1:1 ratio)

1шт.

8

J919985

SUPPORT

BRACKET - belt tensioner, no longer available, order Ref. 8A, J925207 bracket plus Refs. 13 and 14 hardware it

1шт.

8a

J925207

SUPPORT

BRACKET - belt tensioner

1шт.

9

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, torx, special, 8 - 1.25 x 25 mm, Used with Ref. 8, J919985 bracket only

2шт.

10

J918944

BELT TENSIONER

TENSIONER - belt

1шт.

11

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

- heavy hex flange, 10 - 1.5 x 70 mm, class 10.9

1шт.

12

J911557

V-BELT,27.92mm W x 1422.4mm L, 8 Ribs

Fan 3.56 mm W x 1422.40 mm L, 8 Ribs

1шт.

13

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

- flat head cap, torx, special, 8 - 1.25 x 25 mm, Used with Ref. 8A, J925207 bracket only, upper hole

1шт.

14

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Used with Ref. 8A, J925207 bracket only, lower hole

1шт.

15

A77817

KIT

KIT - pulley assembly, belt tensioner, used to replace pulley of Ref. 10, J918944 belt tensioner, Includes: Ref. 16 - 18

1шт.

16

NSS

NOT SOLD SEPARAT

PULLEY - belt tensioner

1шт.

17

NSS

NOT SOLD SEPARAT

BOLT - pulley

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - dust

1шт.
