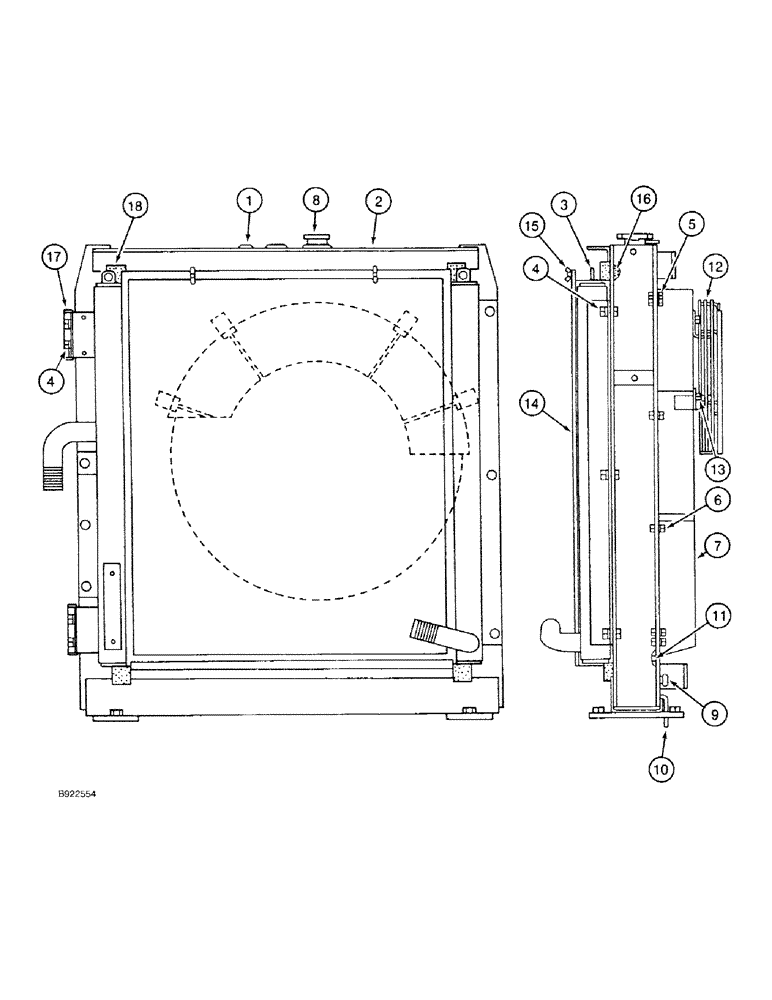

Запчасти Case 9030 (2-10) - RADIATOR ASSEMBLY, PRIOR TO P.I.N. DAC0300005 (02) - ENGINE

152236A1

RADIATOR

ASSEMBLY - engine and transmission oil cooling, Includes: Ref. 1 - 18

1шт.

1

156413A1

RADIATOR

CORE - engine cooling

1шт.

2

156414A1

FRAME

- radiator

1шт.

3

156415A1

OIL

CORE - transmission oil cooling

1шт.

4

156416A1

BOLT (MACHINE)

BOLT - special

14шт.

5

156599A1

BOLT

BOLT - special, with shakeproof washer

7шт.

6

156600A1

SPECIAL BOLT

BOLT - special, with shakeproof washer

8шт.

7

156417A1

SHROUD

- radiator

1шт.

8

156601A1

PLUG

CAP - radiator

1шт.

9

156602A1

COCK

VALVE - drain, radiator

1шт.

10

156603A1

HOSE

- radiator drain

1шт.

11

156604A1

PACKING

PAD - insulation

2шт.

12

156418A1

PROTECTOR

GRILLE - radiator

1шт.

13

156605A1

BOLT (MACHINE)

BOLT - hex, grille retaining

4шт.

14

152243A1

SUPPORT

SCREEN - radiator

1шт.

15

156606A1

BOLT,Wing, M6

BOLT - wing type, screen retaining

2шт.

16

156607A1

GASKET

PAD - insulation

2шт.

17

156419A1

HINGE

- radiator

2шт.

18

156420A1

PACKING

PAD - insulation

4шт.
