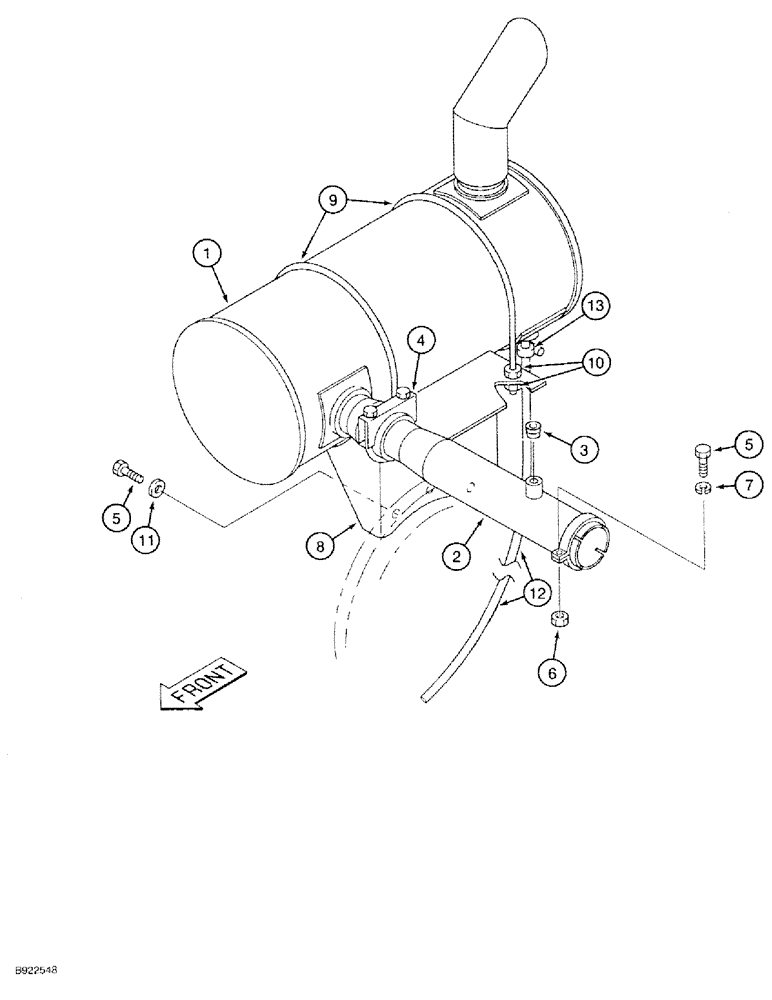

Запчасти Case 9030 (2-08) - MUFFLER AND EXHAUST SYSTEM (02) - ENGINE

1

152220A1

MUFFLER

- exhaust

1шт.

2

152225A1

PIPE, EXHAUST SYSTEM

PIPE - exhaust

1шт.

THIS PIPE PER PRINT DOES NOT HAVE A PLACE ON IT FOR THE PLUG, REF 3.

1шт.

3

150990A1

PLUG

- pipe, exhaust pipe, if used

1шт.

4

150460A1

COLLAR

CLAMP - muffler

1шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 40 mm, class 10.9

4шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

892-11010

LOCK WASHER,M10

1шт.

8

152231A1

SUPPORT

BRACKET - muffler mounting

1шт.

9

152378A1

U-BOLT,M10 x 250mm W x 241mm L

BOLT - U type, muffler retaining

2шт.

10

150472A1

FLANGE NUT

- flanged, muffler retaining

8шт.

11

150409A1

WASHER

- special

3шт.

12

150662A1

TUBE,10 mm ID, 950 mm Length

- drain, muffler

1шт.

13

151367A1

COLLAR

CLAMP - tube, at muffler

1шт.
