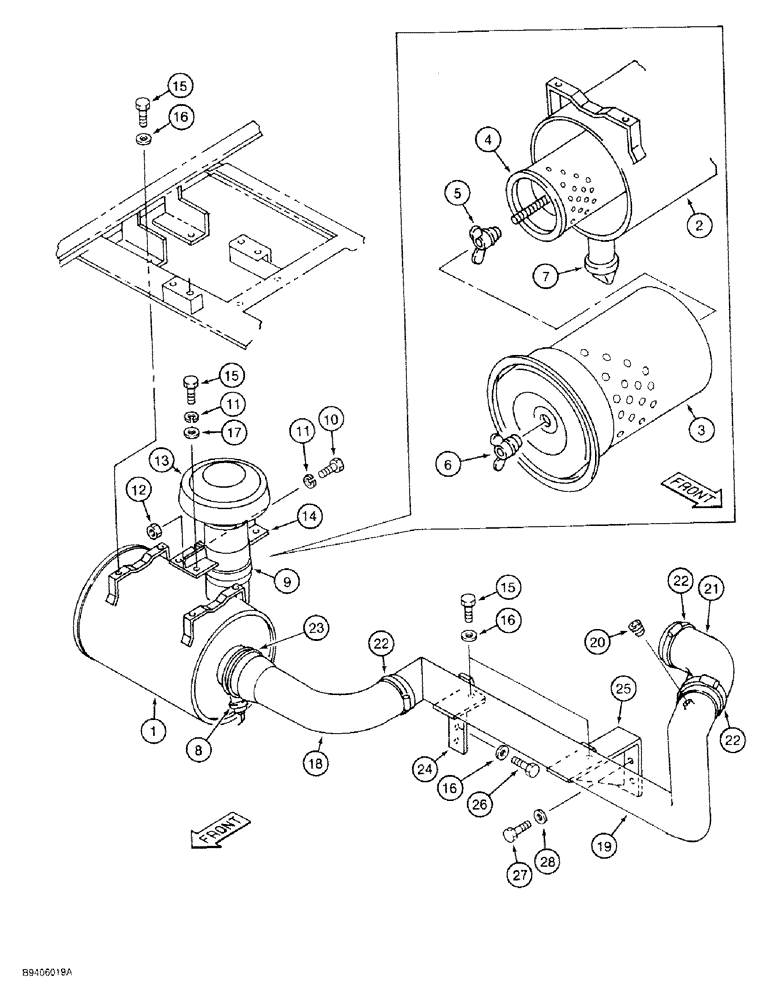

Запчасти Case 9030 (2-06) - AIR CLEANER SYSTEM (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
152257A1
AIR CLEANER
CLEANER ASSEMBLY - air, Includes: Ref. 2 - 8
1шт.
152387A1
VALVE BODY
HOUSING ASSEMBLY - air cleaner, Includes: Ref. 2 - 4
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING - air cleaner
1шт.
3
153239A1
FILTER, ELEMENT
ELEMENT - outer, primary
1шт.
4
153240A1
FILTER, ELEMENT
ELEMENT - inner, secondary
1шт.
5
156497A1
WING NUT
NUT - wing type, with gasket, secondary element
1шт.
6
156411A1
NUT
- wing type, with gasket, primary element
1шт.
7
156412A1
VALVE POPPET
CUP - dust, air cleaner
1шт.
8
157163A1
SENSOR
SWITCH - air restriction indicator, was 150675A1
1шт.
9
150670A1
CLAMP
- inlet pipe to air cleaner
1шт.
10
627-10035
BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd
- hex, full threads, 10 - 1.5 x 35 mm, class 10.9
1шт.
11
892-11010
LOCK WASHER,M10
5шт.
12
829-1410
NUT,M10 x 1.5, Cl 10.9
1шт.
13
152389A1
PROTECTION CAP
COVER - air inlet
1шт.
14
152385A1
AIR INTAKE TUBE,106 mm OD, 200, 220 mm Length
PIPE - air cleaner inlet
1шт.
15
628-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd
10шт.
16
150409A1
WASHER
- special
8шт.
17
895-11010
WASHER,11mm ID x 20mm OD x 2mm Thk
- flat, 11 x 21 x 2 mm
4шт.
18
152274A1
AIR HOSE,76.30mm ID, 101.60mm ID x 315mm
- At air cleaner, to engine 76.30 mm ID, 101.60 mm ID x 315.00 mm
1шт.
19
152262A1
AIR INTAKE TUBE,76.30mm OD, 848.80, 259.60mm L
TUBE - air cleaner to engine
1шт.
20
150990A1
PLUG
- pipe, air cleaner tube, if used
1шт.
21
152269A1
LARGE HOSE
AIR HOSE - at engine, from air cleaner
1шт.
22
152782A1
COLLAR
CLAMP - hose
3шт.
23
153062A1
SPECIAL CLAMP
CLAMP - hose, at air cleaner
1шт.
24
152287A1
BRACKET
- tube support, air cleaner end
1шт.
25
152280A1
BRACKET
- tube support
1шт.
26
627-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd
- hex, 10 - 1.5 x 20 mm, class 10.9
2шт.
27
627-12030
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
- hex, 12 - 1.75 x 30 mm, class 10.9
2шт.
28
150811A1
WASHER
- flat, 12 mm
2шт.
Выбрано товаров: 29
