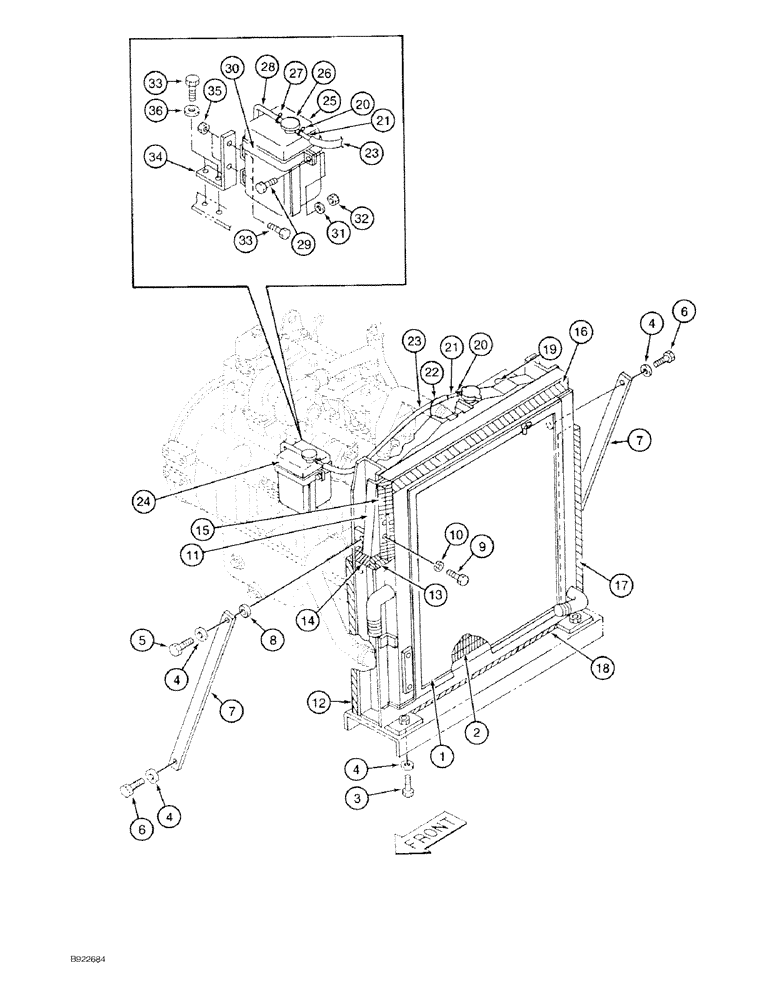

Запчасти Case 9030 (2-04) - RADIATOR, SUPPORTS AND COOLANT OVERFLOW RESERVOIR (02) - ENGINE

REF

INSTRUCTION

RADIATOR ASSEMBLY - engine and transmission oil cooling, see Figure 2-11A for correct assembly and components, Includes: Ref. 1 and 2

1шт.

1

151704A1

GUARD ASSY.

GUARD - fan

1шт.

2

152243A1

SUPPORT

CORE - radiator

1шт.

3

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

4

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- flat, special

8шт.

5

627-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 10.9, Full Thd

Brace mounting, Upper front only Hex, M16 x 45, 10.9

1шт.

6

627-16030

BOLT,Hex, M16 x 2 x 30mm, Cl 10.9, Full Thd

3шт.

7

151329A1

STAY

BRACE - radiator mounting

2шт.

8

151332A1

SPACER

SUPPORT - radiator brace, upper front only

1шт.

9

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, class 10.9

2шт.

10

892-11010

LOCK WASHER,M10

2шт.

11

152383A1

BRACKET

- angle, radiator mounting

1шт.

12

152980A1

INSULATOR

PAD - insulation

1шт.

13

153152A1

INSULATOR

PAD - insulation

1шт.

14

152977A1

INSULATOR

PAD - insulation

1шт.

15

153150A1

INSULATOR

PAD - insulation

1шт.

16

153163A1

INSULATOR

PAD - insulation

1шт.

17

153093A1

INSULATOR

PAD - insulation

1шт.

18

153154A1

INSULATOR

PAD - insulation

1шт.

19

151885A1

DECAL

LABLE - coolant

1шт.

20

153042A1

CLAMP

- overflow hose

2шт.

21

150010A1

HOSE

- radiator overflow

1шт.

22

150498A1

MOUNTING CLIP

STRAP - tie

1шт.

23

150398A1

LOOM

GUARD - overflow hose

1шт.

24

150021A1

RESERVOIR, COOLANT E

RESERVOIR ASSEMBLY - coolant overflow, Includes: Ref. 25 and 26

1шт.

25

150026A1

TANK

RESERVOIR - coolant overflow

1шт.

26

150032A1

LIMIT SWITCH

SWITCH - limit

1шт.

FOR OVERFLOW RESERVOIR CAP ORDER 166131A1.

1шт.

27

153040A1

COLLAR

CLAMP - tube

1шт.

28

150627A1

HOSE

TUBE - overflow, reservoir

1шт.

29

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

- hex, 8 - 1.25 x 20 mm, class 10.9

1шт.

30

150465A1

HOLDER

STRAP - overflow reservoir mounting

1шт.

31

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

32

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10.9

1шт.

33

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

4шт.

34

151411A1

BRACKET

- mounting, reservoir

1шт.

35

150472A1

FLANGE NUT

- flanged, muffler retaining

2шт.

36

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 21 x 2 mm

2шт.
