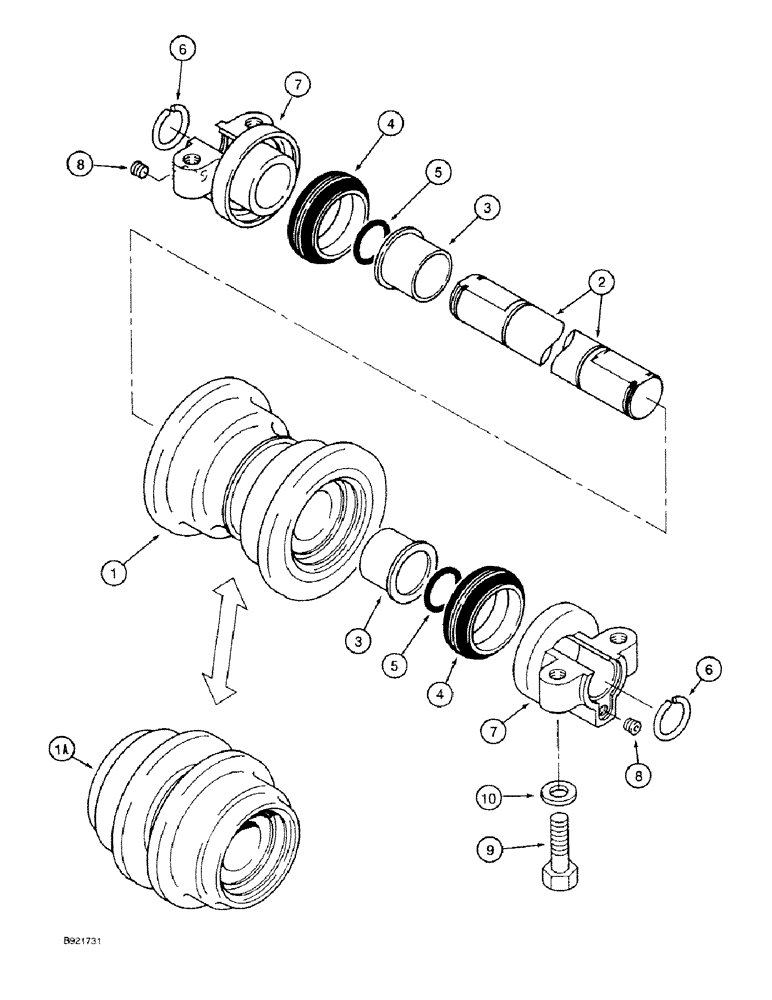

Запчасти Case 9030 (5-12) - TRACK ROLLERS (11) - TRACKS/STEERING

158243A1

ROLLER ASSY.

ROLLER ASSEMBLY - with outer flanges, was 152170A1, Includes: Ref. 1 - 8

10шт.

158244A1

ROLLER ASSY.

ROLLER ASSEMBLY - with inner flanges, was 152181A1, Includes: Ref. 1 - 8

4-6шт.

1

152173A1

SHIFTER ROLLER

HUB - 158243A1 track roller, outer flanges

1шт.

1a

152183A1

SHIFTER ROLLER

HUB - 158244A1 track roller, inner flanges

1шт.

2

152045A1

WHEEL SHAFT

SHAFT - roller

1шт.

3

152570A1

BUSHING

- Roller

2шт.

4

152729A1

OIL SEAL,81.5mm ID x 104.8mm OD x 29mm Thk

ASSEMBLY - face, track roller, includes two rings and two seals

2шт.

5

154625A1

O-RING

- shaft

2шт.

6

150709A1

WIRE

RING - snap, shaft retaining

2шт.

7

152048A1

COLLAR

BRACKET - mounting, track roller

2шт.

8

150821A1

PLUG

- roller bracket

2шт.

9

827-16065

BOLT,Hex, M16 x 2 x 65mm, Cl 10.9

56-64шт.

10

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

- special, was 150991A1

56-64шт.
