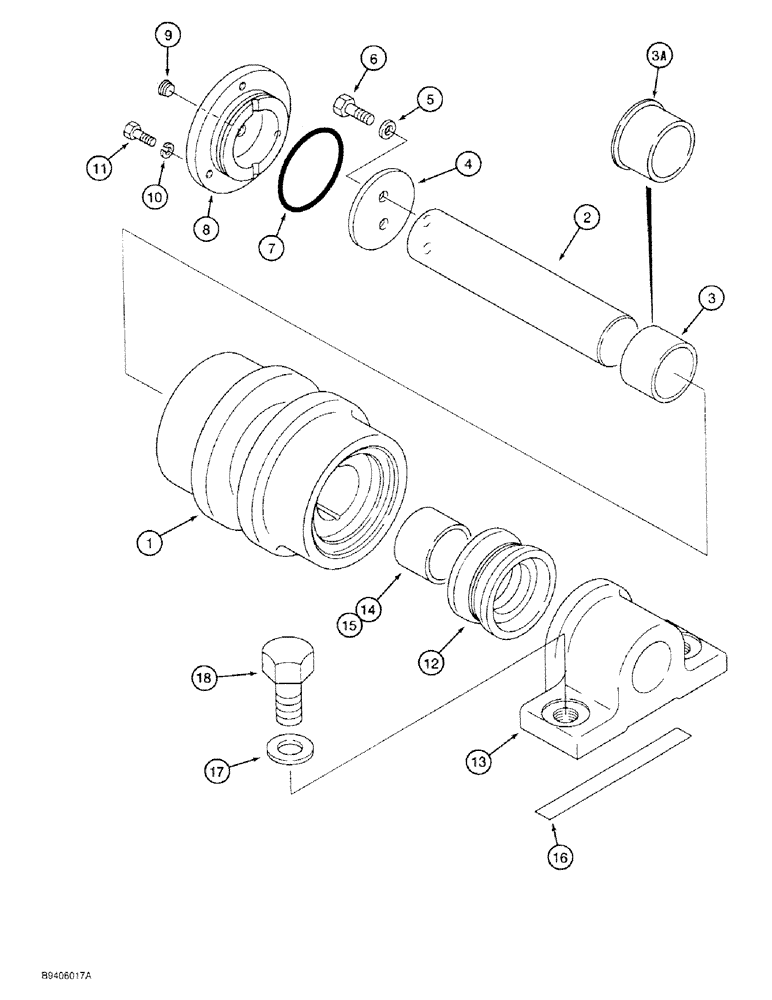

Запчасти Case 9030 (5-10) - TRACK CARRIER ROLLER (11) - TRACKS/STEERING

152204A1

ASSEMBLY

ROLLER ASSEMBLY - carrier, track, order 158774A1 roller assembly for service, Includes: Ref. 1 - 15

4шт.

158774A1

ROLLER

ASSEMBLY - carrier, track, Includes: Ref. 1 - 15

4шт.

1

152207A1

ROLLER

- carrier, track

1шт.

2

152213A1

SHAFT

- 152204A1 carrier roller, order 158739A1 shaft and 158740A1 bracket for service

1шт.

2

158739A1

SHAFT

- 158774A1 carrier roller

1шт.

3

152235A1

BUSHING

- roller, cover end, nylon, if used

1шт.

3a

158776A1

BUSHING,46mm ID x 70mm OD x 42mm L

- roller, cover end, fabricated, if used

1шт.

4

152230A1

PLATE

RETAINER - shaft

1шт.

5

150732A1

WASHER

- special

2шт.

6

628-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

7

154667A1

O-RING

- cover

1шт.

8

152224A1

COVER

- end, carrier roller

1шт.

9

150821A1

PLUG

- end cover, carrier roller

1шт.

10

892-10008

LOCK WASHER,M8

WASHER - lock, 8 mm

3шт.

12

150359A1

SEAL

ASSEMBLY - face, carrier roller, includes two seals and two rings

1шт.

13

152219A1

BRACKET

- mounting, 152204A1 carrier roller, order 158739A1 shaft and 158740A1 bracket for service

1шт.

13

158740A1

BRACKET

- mounting, 158774A1 carrier roller

1шт.

14

152235A1

BUSHING

- roller, bracket end, nylon, if used

1шт.

15

158777A1

BUSHING,46mm ID x 50mm OD x 38mm L

- roller, bracket end, fabricated, if used

1шт.

16

150009A1

SHIM

- bracket height, 0.03 inch thick

1шт.

17

150817A1

WASHER,21mm ID x 40mm OD x 4.5mm Thk

- special, bracket mounting, was 150996A1

8шт.

18

626-20050

BOLT,Hex, M20 x 2.5 x 50mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 50 mm, class 10.9

8шт.

11

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

3шт.
