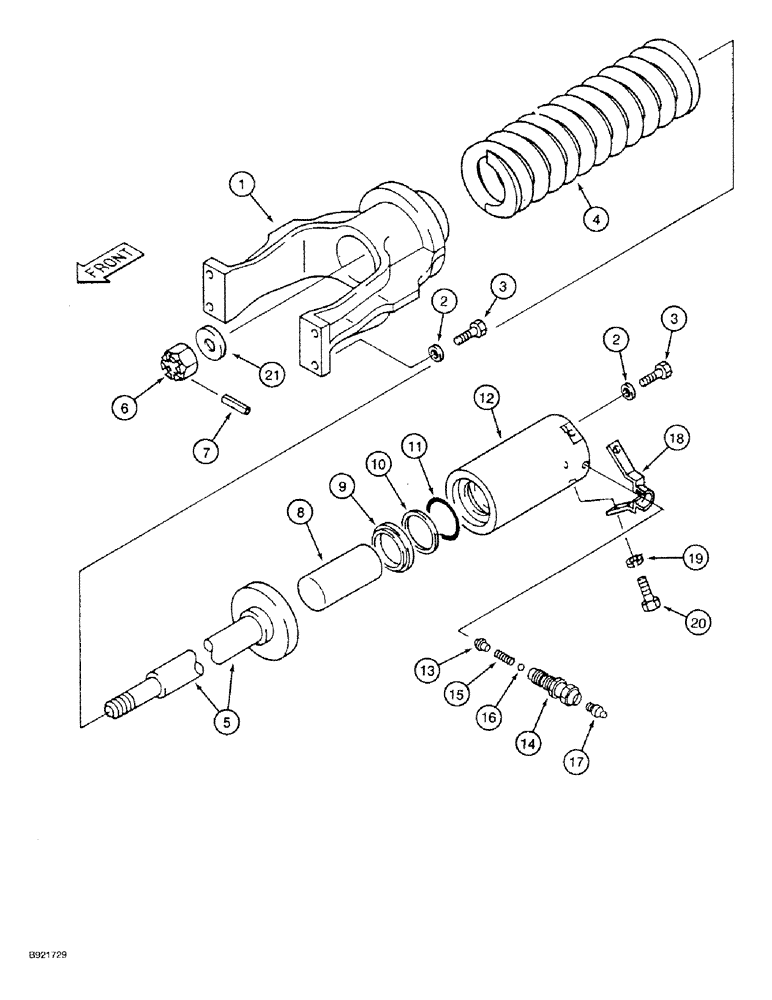

Запчасти Case 9030 (5-08) - TRACK ADJUSTER (11) - TRACKS/STEERING

1

152714A1

YOKE

- track adjuster

2шт.

2

150991A1

WASHER

- special

12шт.

3

626-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

12шт.

4

152715A1

SPRING

- track tension

2шт.

5

152167A1

ROD

GUIDE - tension spring

2шт.

6

825-3048

SLOTTED NUT,M48 x 5, Cl 8

NUT - hex, slotted, 48 mm - 5

2шт.

7

738-1880

LOCK PIN,8mm OD x 80mm L, Slotted

PIN - roll, 8 x 80 mm

2шт.

152522A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - track adjuster, Includes: Ref. 8 - 20

2шт.

8

152256A1

PISTON ROD

ROD - piston

1шт.

9

151686A1

SEAL,70mm ID x 84mm OD x 11mm Thk

WIPER - rod

1шт.

10

150276A1

BACK-UP RING

RING - backup, rod seal

1шт.

11

154668A1

O-RING

- piston rod

1шт.

12

152525A1

CYLINDER

TUBE - cylinder, track adjuster

1шт.

150107A1

LUBE NIPPLE

VALVE ASSEMBLY - check, track adjuster cylinder, Includes: Ref. 13 - 17

1шт.

13

NSS

NOT SOLD SEPARAT

POPPET - check valve

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - check valve

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING - check valve

1шт.

16

150897A1

BALL

- check

1шт.

17

153630A1

LUBE NIPPLE

FITTING - grease, straight

1шт.

18

150248A1

GUARD

BRACKET - mounting, check valve

1шт.

19

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

WASHER - lock, 10 mm

2шт.

20

626-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, class 10.9

2шт.

21

152586A1

SPACER

WASHER - special

1шт.
