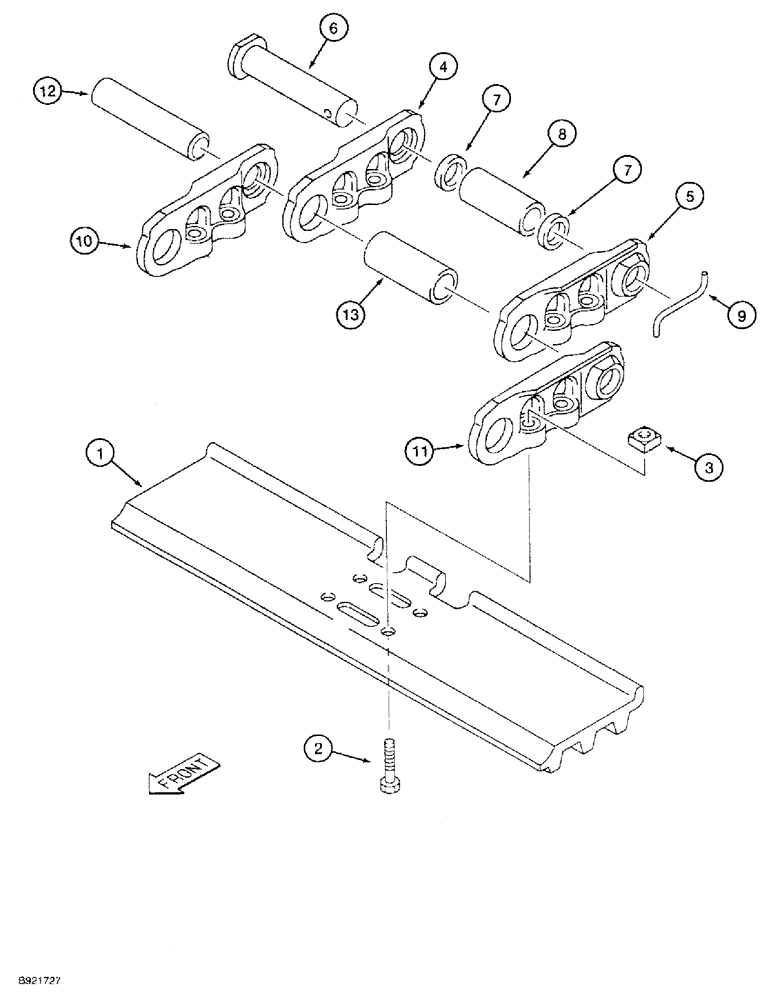

Запчасти Case 9030 (5-04) - TRACK CHAIN AND SHOES (11) - TRACKS/STEERING

156480A1

CHAIN (CE)

CHAIN ASSEMBLY - track, with shoes, Includes: Ref. 1 - 13

2шт.

1

156481A1

SHOE

- track, three bar grouser, 31-1/2 inch wide, Mounting bolt holes = 18 mm

53шт.

2

156482A1

BOLT,Spher Hex, M18 x 1.5 x 58.50mm

BOLT - special, track shoe mounting

212шт.

3

156483A1

NUT

- special, shoe retaining

212шт.

156484A1

TRACK ASSY

CHAIN ASSEMBLY - track, Includes: Ref. 4 - 13

1шт.

4

156485A1

LINK ASSY.

LINK - master, track, right hand

1шт.

5

156486A1

LINK ASSY.

LINK - master, track, left hand

1шт.

6

156487A1

PIN,36.31mm OD x 216mm L

- master link, with head and pin hole

1шт.

7

156488A1

COLLAR

SPACER - bushing, master pin

2шт.

8

156489A1

BUSHING

- master pin

1шт.

9

156490A1

COTTER PIN

PIN - lock, master track pin

1шт.

10

156491A1

LINK ASSY.

LINK - track, standard, right hand

52шт.

11

156492A1

LINK ASSY.

LINK - track, standard, left hand

52шт.

12

156493A1

PIN

- track, standard

52шт.

13

156494A1

BUSHING

- track, standard

52шт.
